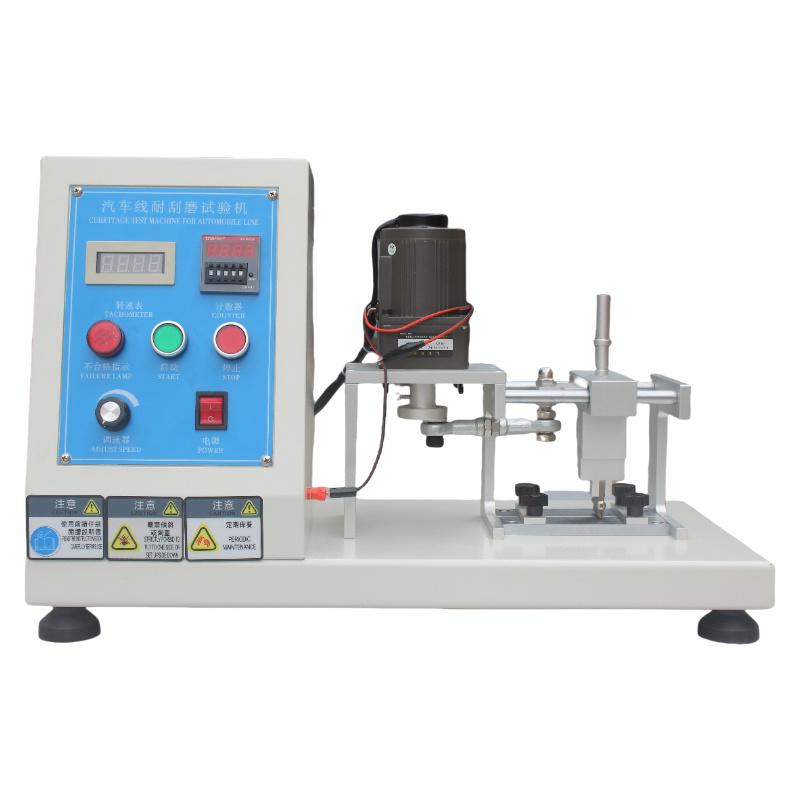

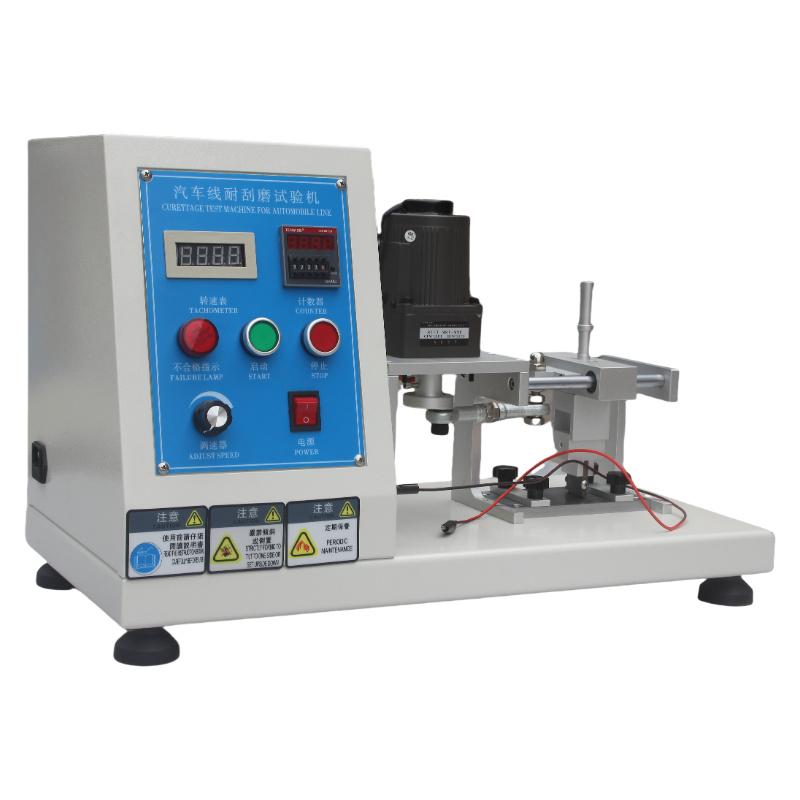

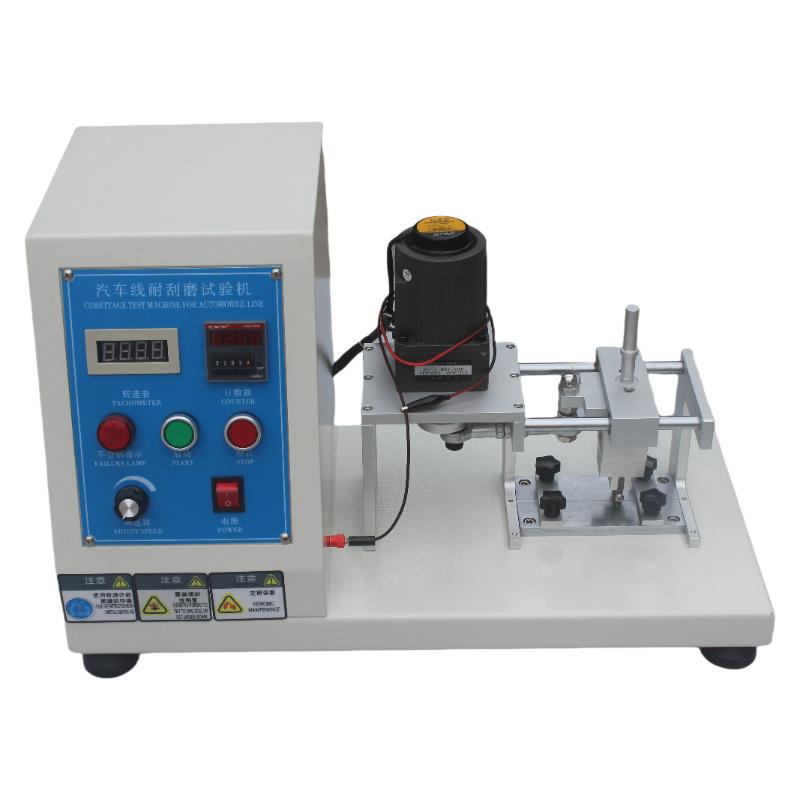

AISRY NBC-4325 Automotive Wire Scratch Resistance Testing Machine, compliant with ISO6722 and other standards

Name: AISRY NBC-4325 Automotive Wire Scratch Resistance Testing Machine, compliant with ISO6722 and other standards
Brand: AISRY
SKU: NB044679
Price: 1159.0 USD
Availability: InStock

$ 1159.00Ex works

Scraper needle diaMeter 0.45mm or 0.125mm optional, scraping speed 10~ 60 times/minute adjustable, automatic detection wear insulation and stop, to ensure Test accuracy and efficiency.

Model

NBC-4325

Get Quote

Category : Other Instruments

Brand : AISRY

SKU : NB044679

Service :The delivery and service By NBCLab.Com

Overview

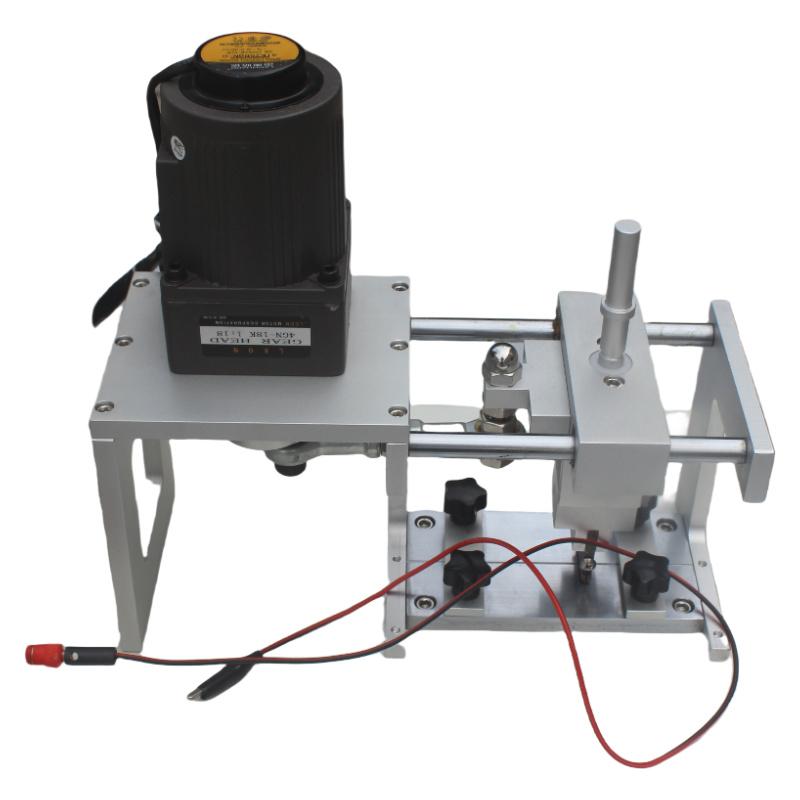

Scratch-resistant tester for automobile wires is a device used to scrape the insulating surface of automobile wires. The machine scrapes the insulating surface reciprocally along the axial direction of the sample, and automatically stops when the scraping needle grinds through the insulating contact conductor.

Features

1. The diameter of the scraping needle is optional and meets different standard requirements; 2. The scraping length is fixed at 15.5mm; 3. The scraping speed can be adjusted from 10 to 60 times/minute; 4. Equipped with a variety of scraping weights (500g, 700g, 1000g); 5. With automatic stop function, when the scraping needle wears through the insulation and contacts the conductor, it will automatically stop.

Principle

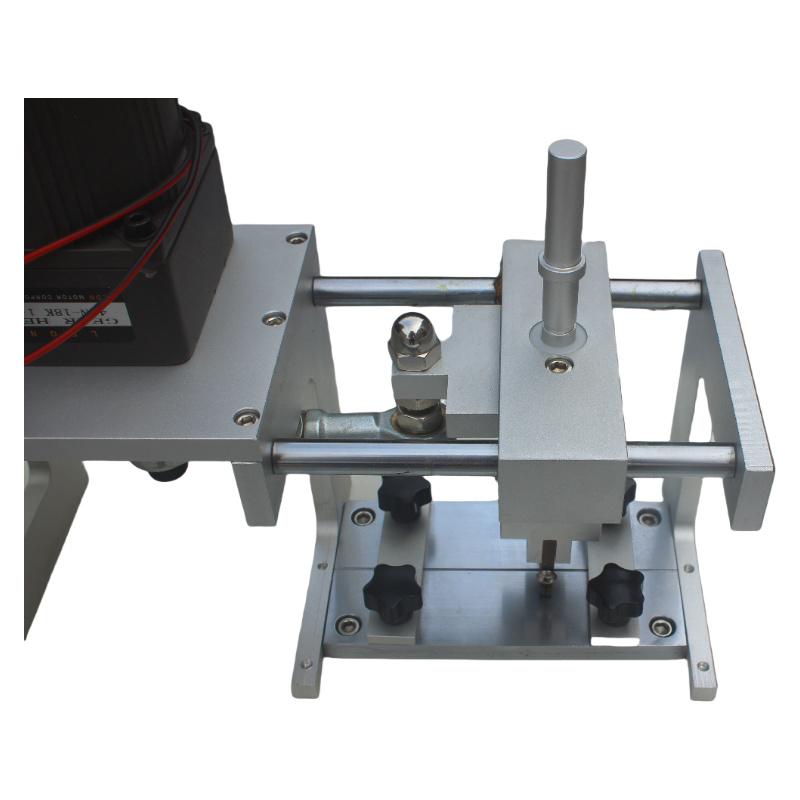

The machine scrapes the insulating surface reciprocally along the axial direction of the sample through the scraping needle to simulate the scraping situation in actual use. When the scraping needle grinds through the insulating layer and contacts the conductor, the equipment automatically detects and stops running.

Standards

ISO6722、QC/T730、JB/T8139、JASO D611、DIN72551、VW60306

scraper needle
Diameter 0.45mm, material meets GB/T4358 requirements
scraper diameter
0.125mm
Scraper stroke
10~ 20Mm adjustable
Scrape length
15.5mm
Scratching speed
10~ 60 times/minute adjustable (one move back and forth for one time)
Scrape weight
500G, 700g, 1000g each
Custom stop function
When the scraper needle wears through the insulation and comes into contact with the conductor, the machine will automatically stop
