AISRY NBC-8504C Annular Pressure Sampler Precision Blade Flat Sample

Name: AISRY NBC-8504C Annular Pressure Sampler Precision Blade Flat Sample
Brand: AISRY
SKU: NB044709
Price: 374.0 USD
Availability: InStock

$ 374.00Ex works

The precision blade combination ensures that the edge of the sample is flat, and can cut 152 × 12.7mm annular pressure samples and (200~ 250) × 15mm tensile samples, with a volume of 670 × 450 × 470mm and a weight of 35kg.

Model

NBC-8504C

Get Quote

Category : Sample Cutter

Brand : AISRY

SKU : NB044709

Service :The delivery and service By NBCLab.Com

Overview

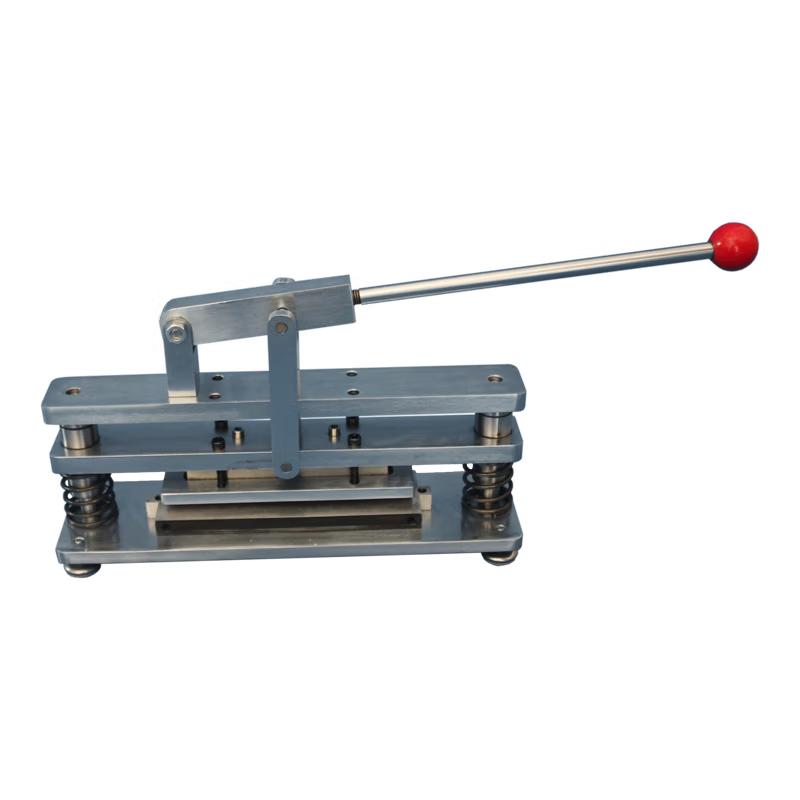

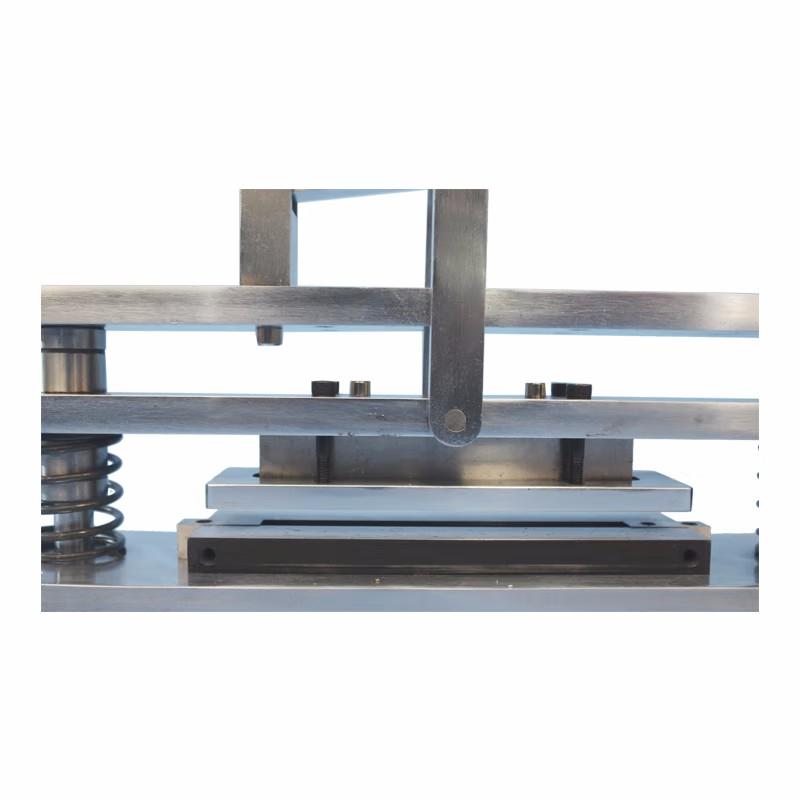

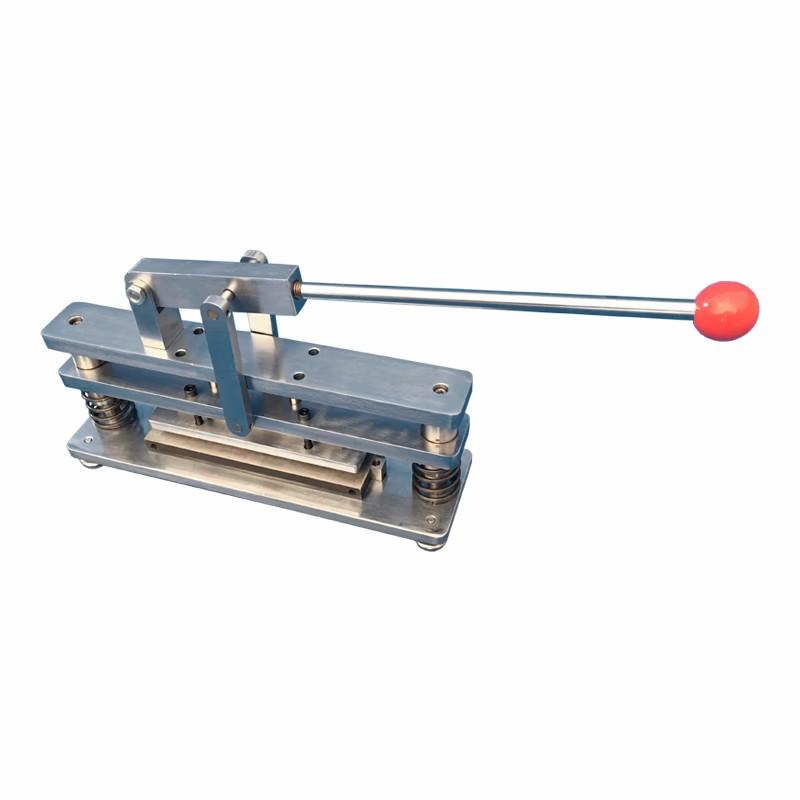

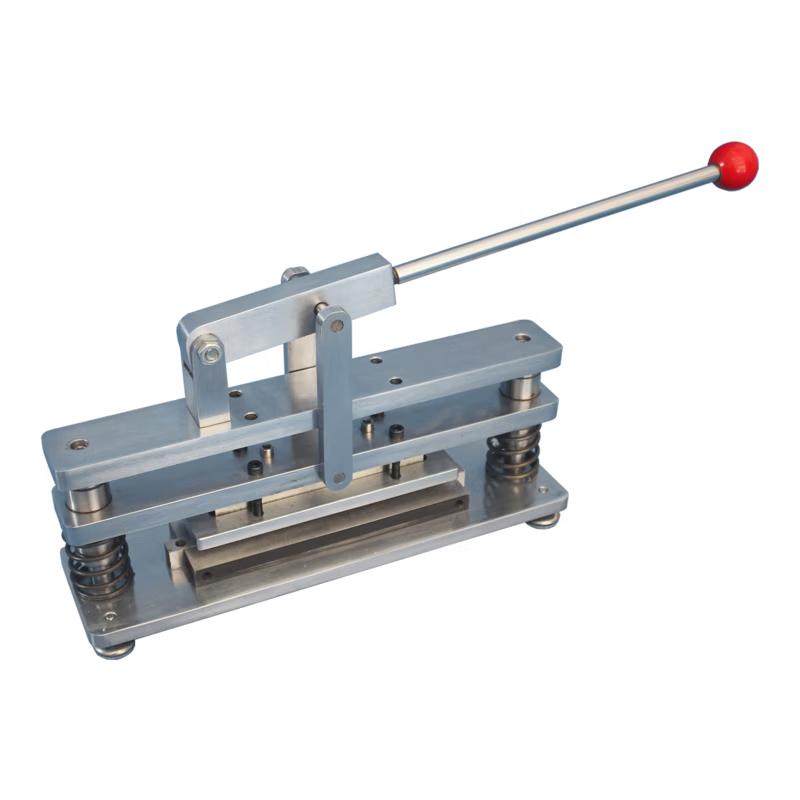

An annular pressure Sampler is a device specially designed for cutting samples for annular pressure or Miscellaneous testing. The precision of the blade combination ensures that the edge of the sample is flat.

Features

1. Precision blade combination to ensure that the edge of the sample is flat 2. Compliant with TAPPI-T409 and JIS-P8113 design standards 3. Can cut a variety of specifications: 152 * 12.7mm for ring pressure test, (200~ 250) * 15mm for tensile test 4. Compact size: 670 * 450 * 470mm, light weight: 35kg

Principle

The material is cut by precision blade combination to ensure that the edge of the sample is flat and meets the sampling requirements of ring pressure and tensile test.

Applications

Ring pressure test, tensile test

Standards

TAPPI-T409、JIS-P8113

Steps

1. Preparation of materials to be sampled 2. Select the sample size according to the test type: ring pressure test uses 152 * 12.7mm, tensile test uses (200~ 250) * 15mm 3. Place the material in the Sampler work area 4. Operate the equipment for cutting 5. Remove the cut sample

Notice

• Make sure the blade of the equipment is sharp and the combination is precise before operation • Pay attention to the selection of sample specifications when cutting to avoid misuse • Keep the work area clean to prevent impurities from affecting the cutting mass • Regularly check the status of equipment to ensure compliance with design standards

Design Criteria
TAPPI-T409，JIS-P8113
Cut sample A
152*12.7mm
Applicable A
Ring pressure
Cut sample B
(200~250)*15mm
Applicable B
For stretching
Volume
670*450*470mm
weight
35kg
