AISRY NBC-7105 Luggage Oscillation Testing Machine 4 Inch Travel Spring Oscillation Impact Resistance

Name: AISRY NBC-7105 Luggage Oscillation Testing Machine 4 Inch Travel Spring Oscillation Impact Resistance
Brand: AISRY
SKU: NB044713
Price: 3064.0 USD
Availability: InStock

$ 3064.00Ex works

The equipment performs 2500 impact tests at 30 times per minute, with an adjustable impact height of 4 inches and a spring-loaded vibration structure of 7.9kg/mm, suitable for durability evaluation of luggage structures.

Model

NBC-7105

Get Quote

Category : Other Instruments

Brand : AISRY

SKU : NB044713

Service :The delivery and service By NBCLab.Com

Overview

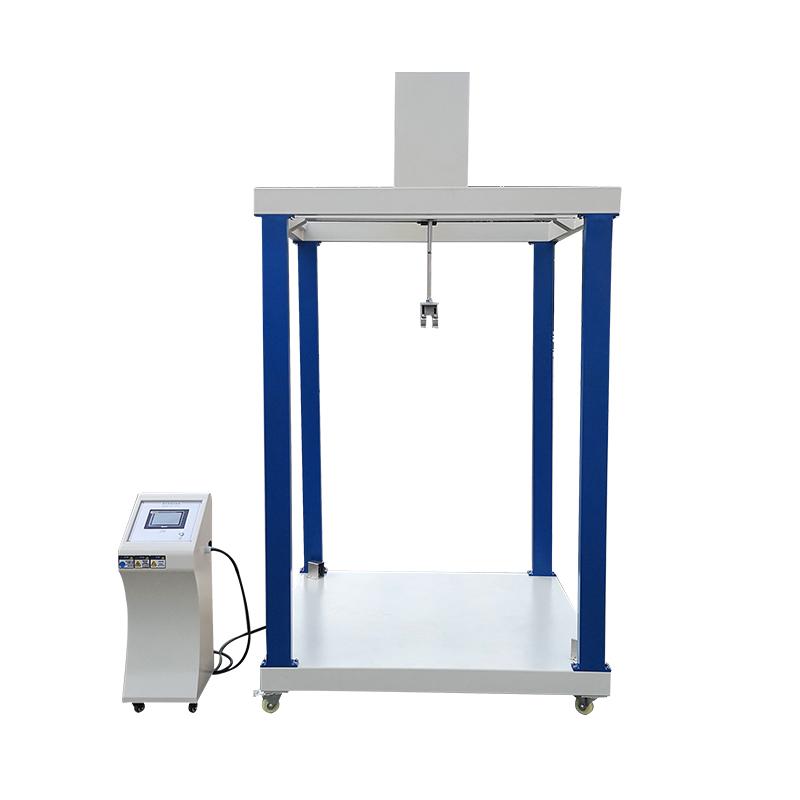

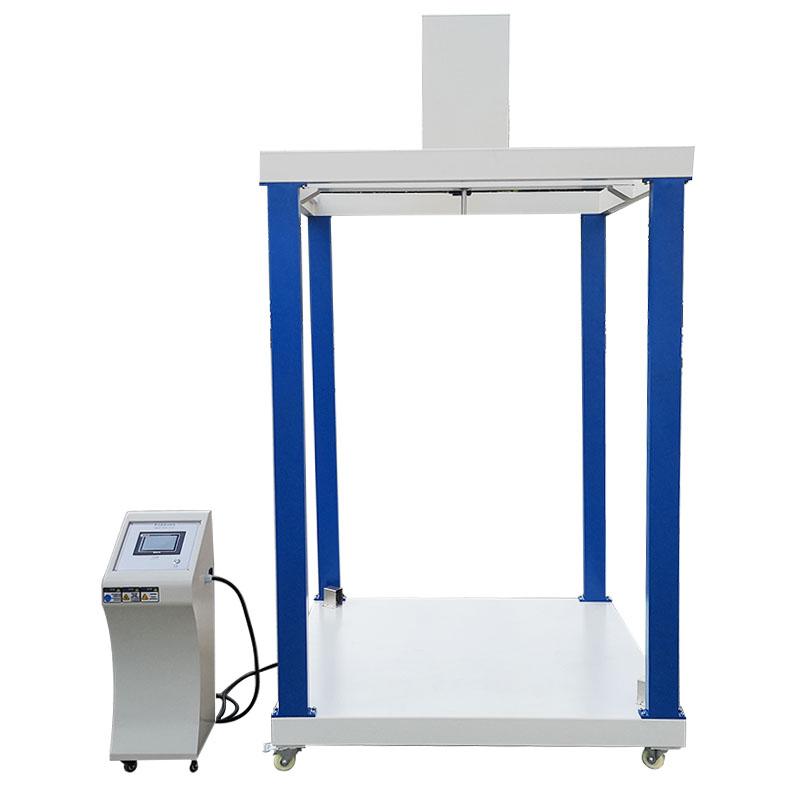

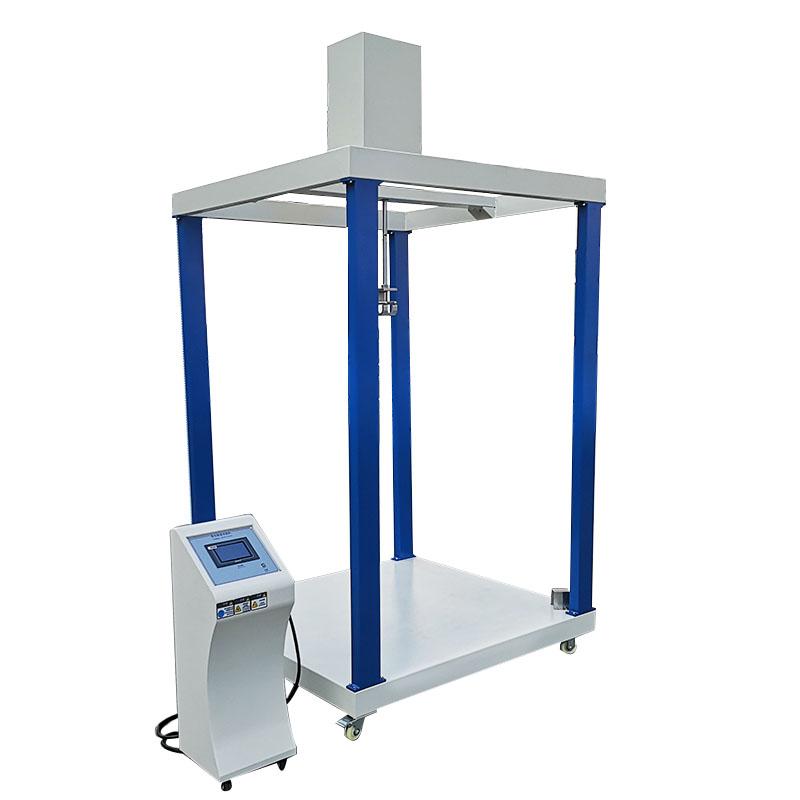

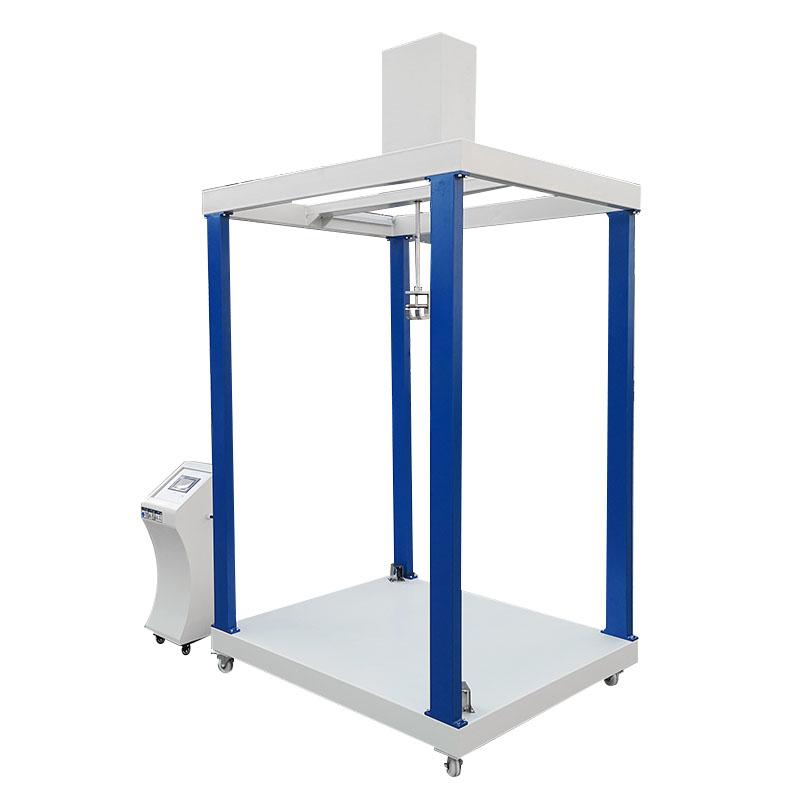

Bag oscillation testing machine is used to test the vibration resistance impact test of suitcase handle, sewing line and overall structure. The method is to load the specified load on the object, and the test piece is tested 2500 times at a speed of 30 times per minute and a stroke of 4 inches. The test results can be used as a reference for quality improvement.

Features

1. Impact height adjustable range 0-6 inches 2. Adopt spring-type 7.9kg/mm vibration mode 3. Test speed 5-50cmp adjustable 4. LCD counter 6-bit display, counting range 0-999999 times 5. Rated voltage AC~ 220V 50Hz

Principle

Bag oscillation testing machine by loading the specified load on the test object, with the set speed and stroke of the test piece repeated impact test, simulate the actual use of the oscillation Impact situation, evaluate the durability of each part of the bag performance.

Standards

American SAMSONITE standard

Steps

1. Place the test bag on the testing machine 2. Loading the specified load 3. Set Impact Height to 4 inches (can be adjusted as needed) 4. Set the test speed to 30 times per minute 5. Set the number of tests to 2500 6. Start the device and start testing 7. Observe the LCD counter to display the test progress 8. Record the test results after the test is completed

Impact height
4 inches (0-6 inches) adjustable
vibration mode
Spring Type 7.9kg/mm
test speed
5-50Cmp adjustable
counter
LCD 0-999999 times 6-digit display
Machine Size
1400*1200*2500mm
weight
About 390Kg
rated Voltage
AC~220V 50Hz
