Overview

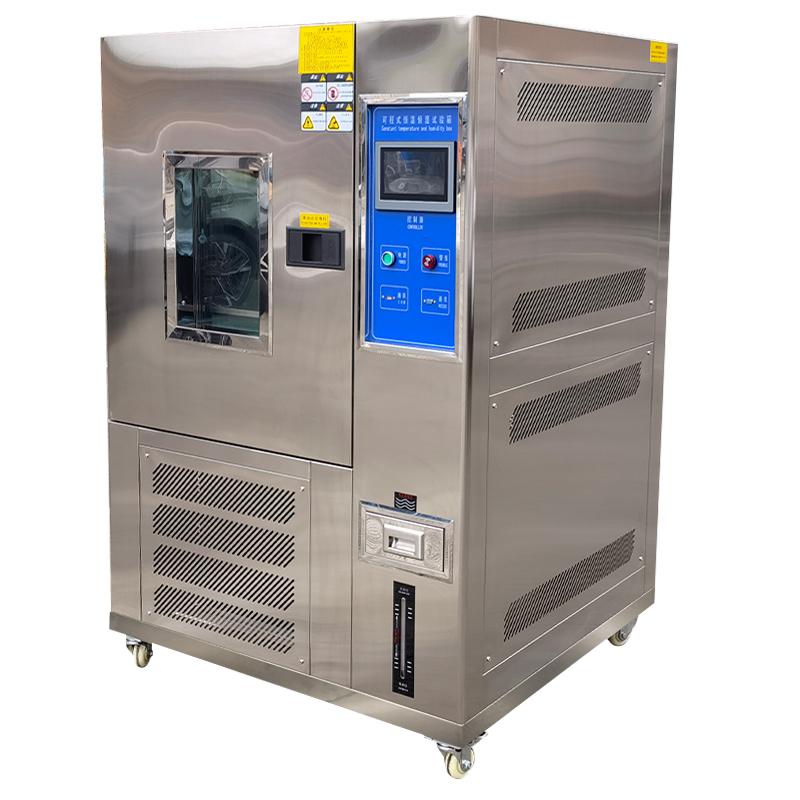

Programmable constant temperature and humidity testing machine NBC-225L-60 is a factory direct high and low temperature heat and humidity alternating test chamber, mainly used to test the performance of materials in various environments, test the heat resistance, cold resistance, dry resistance, moisture resistance performance of various materials. It is suitable for mass testing of electronics, electrical appliances, communications, instruments, vehicles, plastic products, metals, food, chemicals, building materials, aerospace and other products.
Features
1. The product has beautiful appearance, reasonable structure, precise process, simple and convenient operation, stable and reliable performance.
2. The controller adopts a large color liquid crystal man-machine touch dialog LCD interface, with Chinese and English display, and supports RS232 computer interface remote control.
3. The refrigeration circulation system adopts the original imported Japanese "Sanyo" brand fully enclosed Compressor (optional French Taikang), the parts are imported from Japan, France, the United States, Italy, etc., and the American environmentally friendly refrigerant is used.
4. Reserve a 50mm diameter test hole on the left side of the test chamber.
5. With Fully Automatic, High Precision System Loop, P.L.C Lock Processing, P.I.D Automatic Calculation Control, High Accuracy and High Stability of Temperature in the Whole Zone.
6. Specially designed air circulation circulation system and sensing system to ensure Temperature Uniformity and avoid dead ends.
7. Adopt enlarged observation window, 4 layers of tempered Glass, wide field of vision.
8. The instrument has a comprehensive protection system, including power overload, leakage, control loop overload, short circuit, Compressor, grounding, over-temperature protection and alarm sound prompts, automatically display the fault point and stop.
Principle
The equilibrate Conditioning Control System (BTHC) is adopted, and the induction system transmits the actual data in the test chamber to the controller. The controller controls the SSR and multi-stage intelligent output, and the equilibrate temperature and humidity system outputs the power to ensure that the temperature and humidity in the test chamber are fully stable, and It has the function of energy saving, reducing the power used, and ensuring the long-term accurate and stable operation of the instrument.
Applications
Electronics, electrical appliances, communications, instrumentation, vehicles, plastic products, metals, food, chemicals, building materials, aerospace
Steps
Connect the power supply to ensure that the voltage meets the requirements (220V/50HZ, allowing a change of +/- 10%).
2. Open the test chamber door and place the item to be tested on the shelf (standard configuration 1 layer, adjustable layer distance, up to 4 layers).
3. Set the temperature and humidity parameters through the controller (Temperature range -60~ 150 ℃, humidity control range 20~ 98% R. H).
4. Start the instrument and monitor the operating status to ensure stable temperature and humidity.
5. After the test is completed, turn off the instrument and remove the item.
Notice
• The use environment temperature should be maintained at 0~ 30 ℃, and the performance guarantee environment is 5~ 25 ℃.
• Miscellaneous items should not be placed within 60CM of the instrument to ensure normal heat dissipation and operation.
• The humidification system has water filtration and needs to be checked regularly to avoid blockage.
• The instrument has a variety of protection functions, and it will automatically stop in case of failure. It is necessary to check the fault point in time.
• Use the bottom universal wheel when moving the instrument, pay attention to load bearing and shock absorption.
