Overview

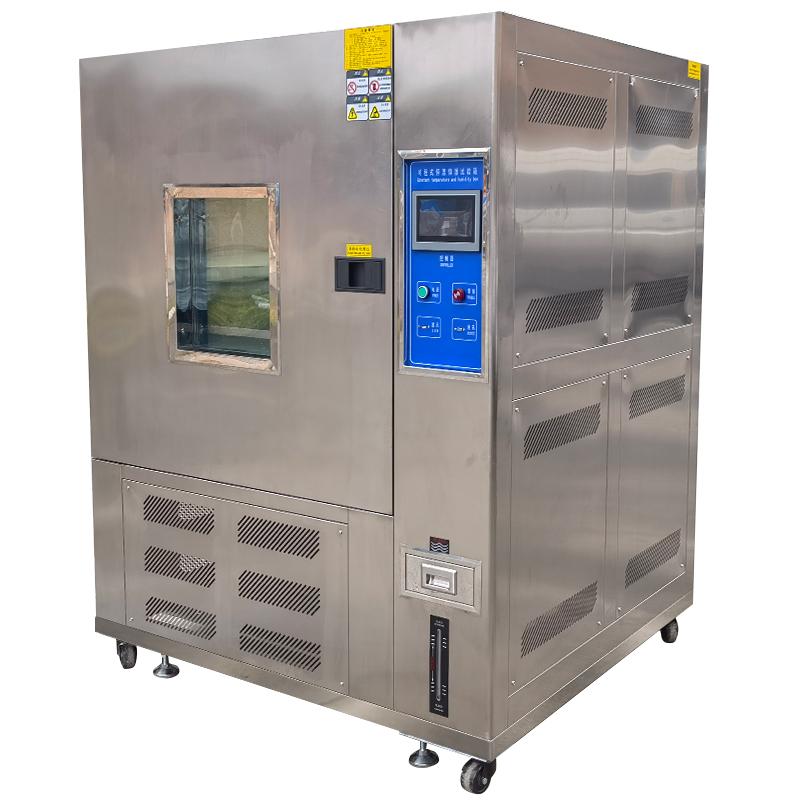

NBC-800L-60 programmable constant temperature and humidity testing machine is a high and low temperature heat and humidity alternating test chamber sold directly by the factory. It is mainly used to test the performance of materials in various environments, and test the heat resistance, cold resistance, dry resistance and moisture resistance of various materials. The equipment is suitable for mass testing of electronics, electrical appliances, communications, instruments, vehicles, plastic products, metals, food, chemicals, building materials, aerospace and other products.
Features
1. The product has beautiful appearance, reasonable structure, precise process, simple and convenient operation, stable and reliable performance
2. Adopt large-scale color liquid crystal man-machine touch dialog LCD controller, display in both Chinese and English, and support RS232 computer interface remote control
3. The refrigeration circulation system adopts the original imported Japanese Sanyo fully enclosed Compressor, and the components come from Japan, France, the United States, Italy and other origins
4, the left side of the test chamber reserved 50mm diameter test hole
5, with automatic high-precision system loop, using P.I.D automatic calculation control, high temperature accuracy, Stability
6. Specially designed air circulation circulation system and sensing system to ensure Temperature Uniformity and avoid dead ends
7. Adopt enlarged observation window, 4 layers of tempered Glass, wide field of view
8, with a comprehensive protection system, including power overload protection, leakage protection, Compressor protection, etc., automatically display fault and stop
Principle
The equilibrate Conditioning Control System (BTHC) is adopted, and the induction system transmits the actual data in the test chamber to the controller. The controller controls the SSR, multi-stage intelligent output, and the output power of the equilibrate temperature and humidity system to ensure that the temperature and humidity in the test chamber are fully stable, with energy saving function, reduce the use of power, and ensure the long-term accurate and stable operation of the instrument.
Applications
Electronics, electrical appliances, communications, instrumentation, vehicles, plastic products, metals, food, chemicals, building materials, aerospace
Steps
1. Connect the power supply to ensure that the voltage meets the requirements
2. Set the temperature and humidity program through the controller Linear dispersion
3. Place the sample on the shelf
4. Start the equipment and monitor the running status
5. After the test is completed, stop the device according to the program
Notice
• The use environment temperature should be within the range of 0~ 30 ℃, and the performance guarantee environment is 5~ 25 ℃
• Miscellaneous items cannot be placed within 60CM of the equipment
• Power supply voltage is 380V/50HZ, allowing variation of +/- 10%
• Regularly check the water quality of the humidification system to filtrate and avoid blockage
• Use the bottom universal wheel when moving, pay attention to load bearing and shock absorption
