Overview

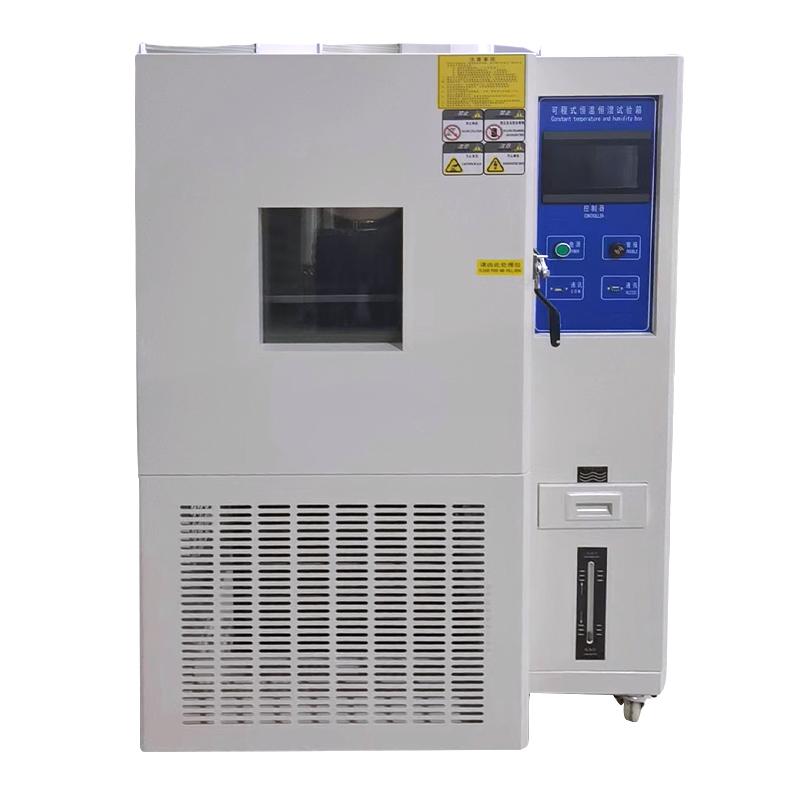

Programmable constant temperature and humidity testing machine NBC-408L-20 (paint plate) is mainly used to detect the performance of materials in various environments, test the heat resistance, cold resistance, dry resistance and moisture resistance performance of various materials. The equipment is suitable for mass detection of electronics, electrical appliances, communications, meters, vehicles, plastic products, metals, food, chemicals, building materials, aerospace and other products. The equilibrate Conditioning Control System (BTHC) is used to transmit the actual data in the test chamber to the controller through the induction system. The controller controls the SSR multi-stage intelligent output. The equilibrate temperature and humidity system outputs power to ensure stable temperature and humidity, and has the function of energy saving, reducing the use of power, and ensuring long-term accurate and stable operation.
Features
1, beautiful appearance, reasonable structure, precision technology, simple and convenient operation, stable and reliable performance.
2. The controller adopts a large-scale color liquid crystal man-machine touch dialog LCD interface, which is easy to operate, easy to learn, stable and reliable. The operating status of the system and the setting program are displayed in both Chinese and English. Linear dispersion supports RS232 computer interface remote control.
3. The refrigeration circulation system adopts the original imported Japanese Sanyo fully enclosed Compressor (optional French Taikang), the components are from Japan, France, the United States, Italy, etc., and the refrigerant is the American environmentally friendly refrigerant R23A and R404A.
4. Reserve a 50mm diameter test hole on the left side of the box.
5. Equipped with Fully Automatic, High Precision System Loop, P.L.C Locking Processing, P.I.D Automatic Calculation Control, High Accuracy and High Stability of Temperature in the Whole Zone.
6, specially designed air circulation circulation system and sensing system, the trend and return air sensor detection and control, to ensure uniform temperature, avoid dead ends.
7. Adopt enlarged observation window, 4 layers of whole empty tempered Glass, wide field of vision.
8. Comprehensive protection system includes power overload protection, leakage protection, control loop overload, short circuit protection, Compressor protection, grounding protection, over temperature protection, alarm sound prompt, and automatically display the fault point and stop when abnormal.
Principle
The equilibrate Conditioning Control System (BTHC) is adopted, and the induction system transmits the actual data in the test chamber to the controller. The controller controls the SSR multi-stage intelligent output and the output power of the equilibrate temperature and humidity system to ensure that the temperature and humidity in the test chamber are fully stable, and it has the function of energy saving, reducing the power of the instrument, and ensuring long-term accurate and stable operation.
Applications
Electronics, electrical appliances, communications, instrumentation, vehicles, plastic products, metals, food, chemicals, building materials, aerospace
Steps
Connect the power supply to ensure that the voltage meets 380V/50HZ, and the allowable value of variation is +/- 10%.
2. Turn on the device and set the temperature and humidity program Linear dispersion through the controller.
3. Put the sample to be tested into the studio to ensure that there are no Miscellaneous items within 60cm.
4. Start the test and monitor the operating status of the system.
5. After the test is completed, turn off the device and disconnect the power supply.
Notice
• The working environment temperature should be kept at 0~ 30 ℃, and the performance guarantee environment is 5~ 25 ℃.
• Miscellaneous items should not be placed within 60cm of the use environment.
• Power supply voltage and variable allowable value to avoid overload.
• When an abnormality occurs, the device automatically displays the fault point and stops, which needs to be dealt with in time.
• Regularly check the protection system function to ensure safe operation.
