Overview

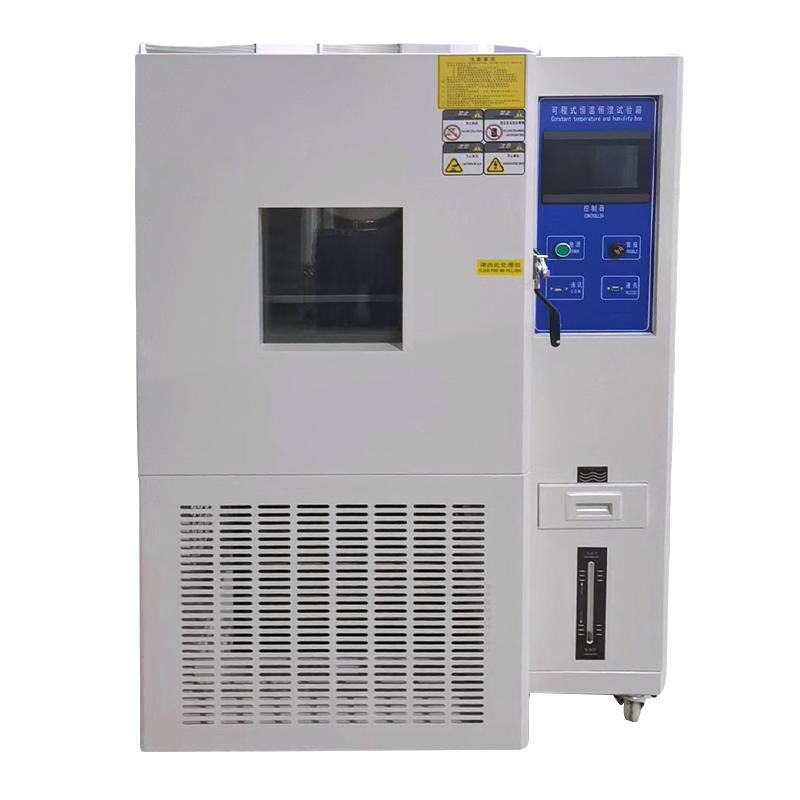

Programmable constant temperature and humidity testing machine NBC-1000L-20 (paint plate) is mainly used to test the performance of materials in various environments, test the heat resistance, cold resistance, dry resistance and moisture resistance performance of various materials. Suitable for mass detection of electronics, electrical appliances, communications, instruments, vehicles, plastic products, metals, food, chemicals, building materials, aerospace and other products.
Features
1. The product has beautiful appearance, reasonable structure, precise process, simple and convenient operation and stable and reliable performance.
2. The controller adopts a large-scale color liquid crystal man-machine touch dialog LCD man-machine interface controller, which is easy to operate, easy to learn, stable and reliable. The complete system operation status, execution and setting program Linear dispersion are displayed in both Chinese and English, which can realize RS232 computer interface docking and directly control the instrument remotely through the computer.
3. The refrigeration circulation system adopts the original imported Japanese "Sanyo" brand fully enclosed Compressor (purchased from France Taikang Compressor), and each component adopts imported components, which are from Japan, France, the United States, Italy and other origins. The refrigerant adopts the American environmentally friendly refrigerant (R23A, R404A).
4. The left side of the test chamber has a test hole with a reserved diameter of 50mm.
5. Equipped with fully automatic, high-precision system loop, any part action, with P.L.C locking processing, all using P.I.D automatic calculation control, the temperature of the whole area has High Accuracy and High Stability.
6. Specially designed air circulation circulation system and sensing system, out of the trend in the return air sensor detection and control, to ensure that the test chamber Temperature Uniformity, to avoid any dead angle.
7. Adopt enlarged observation window, 4 layers of whole empty tempered Glass, wider field of vision.
8. The instrument has a comprehensive protection system, including power overload protection, leakage protection, control loop overload, short circuit protection, Compressor protection, grounding protection, over-temperature protection, alarm sound prompts, etc. When any abnormal situation occurs, the screen automatically displays the fault point and cause and automatically stops.
Principle
The equilibrate Conditioning Control System (BTHC) is adopted, and the induction system transmits the actual data in the test chamber to the controller. The controller controls the SSR, multi-stage intelligent output, and the output power of the equilibrate temperature and humidity system to ensure that the temperature and humidity in the test chamber are fully stable, and It has the function of energy saving, reducing the power of the instrument to a greater extent, and ensuring the long-term accurate and stable operation of the instrument.
Applications
Electronics, electrical appliances, communications, instrumentation, vehicles, plastic products, metals, food, chemicals, building materials, aerospace
Steps
Connect the power supply to ensure that the voltage is 380V/50HZ, and the allowable voltage fluctuation is +/- 10%.
2. Turn on the instrument and operate it through a large-scale color liquid crystal man-machine touch dialog LCD controller.
3. Set the required Temperature range (-20~ 150 ℃) and Humidity range (20~ 98% R. H).
4. Start the test, the instrument automatically controls the temperature and humidity, and ensures uniformity through the sensing system.
5. Monitor the testing process. If there is any abnormality, the instrument will automatically display the fault and shut down.
6. After the test is completed, turn off the instrument and disconnect the power supply.
Notice
• The use environment temperature should be maintained at 0~ 30 ℃, and the performance guarantee environment is 5~ 25 ℃.
• Miscellaneous items should not be placed within 60CM of the instrument to ensure air circulation and heat dissipation.
• Power supply voltage meets requirements to avoid overload or voltage fluctuations.
• Regularly check the protection system function to ensure safe operation.
• Pay attention to the instrument display during operation and deal with any abnormal prompts in time.
