Overview

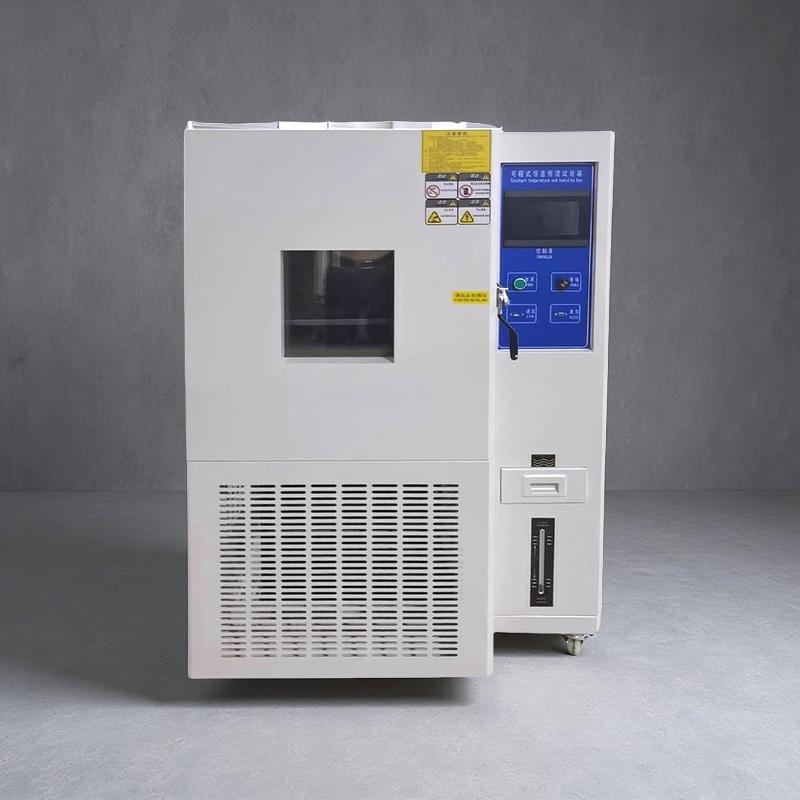

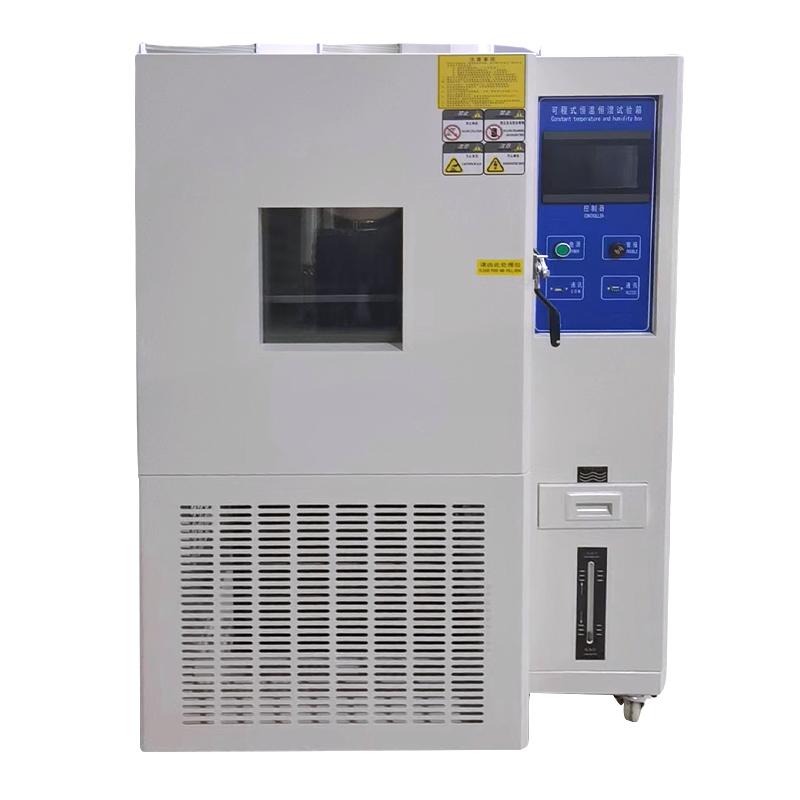

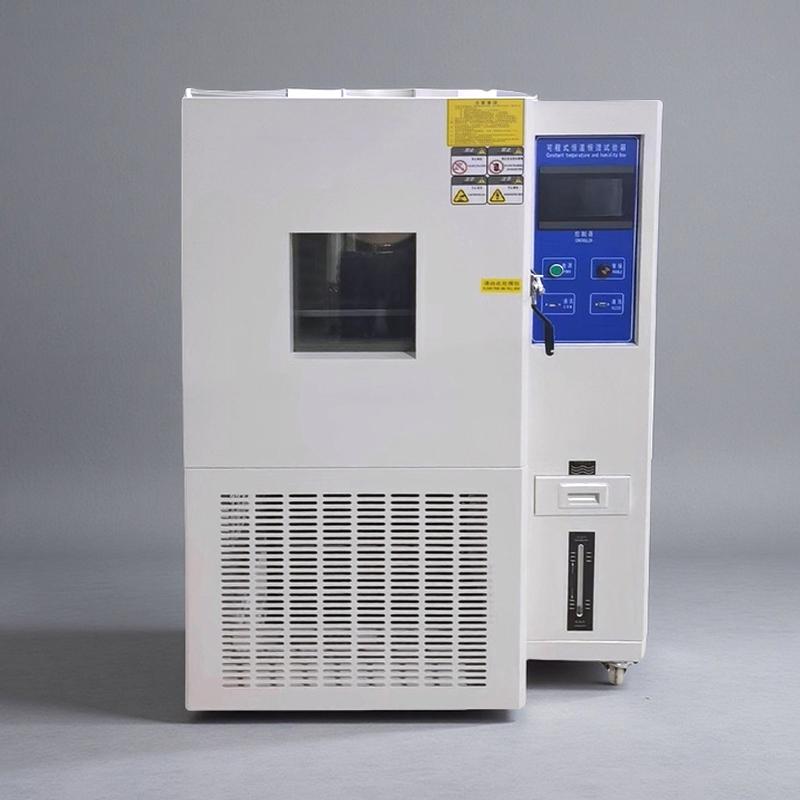

Programmable constant temperature and humidity testing machine NBC-1000L-60 (paint plate) is mainly used to test the performance of materials in various environments, test the heat resistance, cold resistance, dry resistance and moisture resistance performance of various materials. Suitable for mass detection of electronics, electrical appliances, communications, instruments, vehicles, plastic products, metals, food, chemicals, building materials, aerospace and other products. The equilibrate Conditioning Control System (BTHC) is adopted, and the induction system transmits the actual data in the test chamber to the controller. The controller controls the SSR, multi-stage intelligent output, and the output power of the equilibrate temperature and humidity system to ensure that the temperature and humidity in the test chamber are fully stable, and It has the function of energy saving, reducing the power of the instrument, and ensuring the long-term accurate and stable operation of the instrument.
Features
1. The product has beautiful appearance, reasonable structure, precise process, simple and convenient operation and stable and reliable performance.

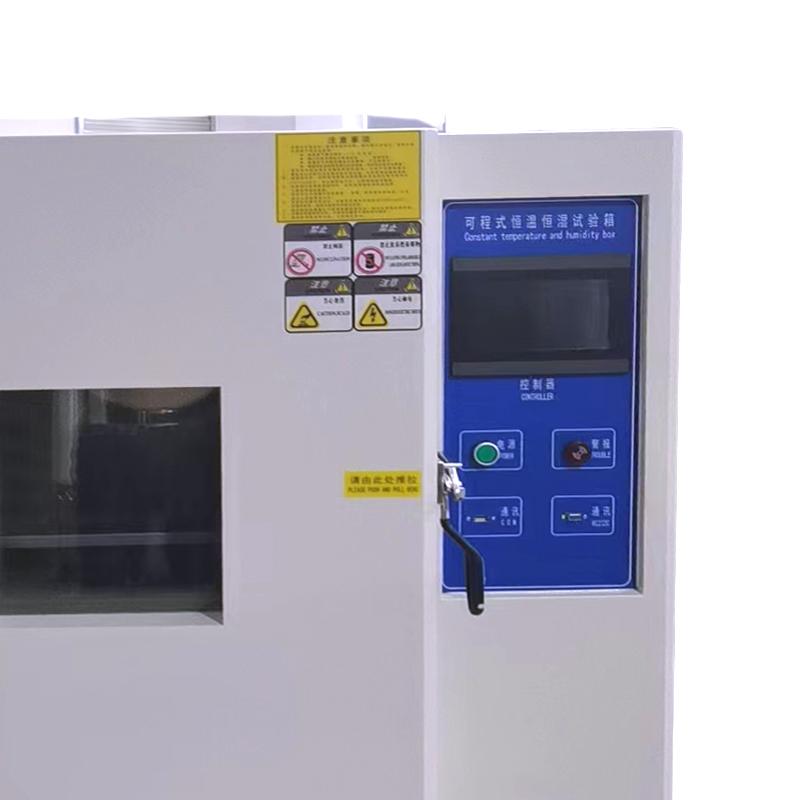

2. The controller adopts a large-scale color liquid crystal man-machine touch dialog LCD man-machine interface controller, which is easy to operate, easy to learn, stable and reliable. The complete system operation status, execution and setting program Linear dispersion are displayed in both Chinese and English, which can realize RS232 computer interface docking and directly control the instrument remotely through the computer.
3. The refrigeration circulation system adopts the original imported Japanese "Sanyo" brand fully enclosed Compressor (purchased from France Taikang Compressor), and each component adopts imported components, which are from Japan, France, the United States, Italy and other origins. The refrigerant adopts the American environmentally friendly refrigerant (R23A, R404A).
4. The left side of the test chamber has a test hole with a reserved diameter of 50mm.
5, with fully automatic, high-precision system loop, any part action, with P.L.C locking processing, all using P.I.D automatic calculation control, the whole area temperature with High Accuracy, High Stability.
6, Specially designed air circulation circulation system and sensing system, out of the trend in the return air sensor detection and control, to ensure that the test chamber Temperature Uniformity, to avoid any dead angle.
7. Adopt enlarged observation window, 4 layers of whole empty tempered Glass, wider field of vision.
8, the instrument has a comprehensive protection system, power overload protection, leakage protection, control loop overload, short circuit protection, Compressor protection, grounding protection, over-temperature protection, alarm sound prompts, etc., when any abnormal situation occurs, the screen automatically displays the fault point and cause and automatically stops.
Principle
The equilibrate Conditioning Control System (BTHC) is adopted, and the induction system transmits the actual data in the test chamber to the controller. The controller controls the SSR, multi-stage intelligent output, and the output power of the equilibrate temperature and humidity system to ensure that the temperature and humidity in the test chamber are fully stable, and It has the function of energy saving, reducing the power of the instrument, and ensuring the long-term accurate and stable operation of the instrument.
Applications
Electronics, electrical appliances, communications, instrumentation, vehicles, plastic products, metals, food, chemicals, building materials, aerospace
Steps
1. Power supply voltage 380V/50HZ, ensure that the allowable value of voltage variation is within the range of +/- 10%.
Ensure that the environment temperature is 0~ 30 ℃, the performance environment is 5~ 25 ℃, and no Miscellaneous items are placed within 60CM.
3. Linear dispersion is set by the controller, and the operation status can be displayed in both Chinese and English.
4, start the instrument, monitor the temperature and humidity changes, ensure Temperature Fluctuation +/- 0.5-1 ℃, Temperature Uniformity +/- 1.5-2 ℃, humidity deviation +/- 1~ 2%, humidity uniformity +/- 1-3.0% R.H.
5. In case of abnormal conditions, the instrument automatically displays the fault points and causes and stops.
Notice
• Power supply voltage 380V/50HZ, voltage variation allowable value +/- 10%.
• The use environment temperature needs to be 0~ 30 ℃, and the performance guarantee environment is 5~ 25 ℃.
• Miscellaneous items cannot be placed within 60CM of the instrument.
• Pay attention to the instrument protection system, including power overload protection, leakage protection, etc., and automatically shut down when abnormal.
• Regularly check the Compressor and refrigeration system to ensure the use of original imported parts.
