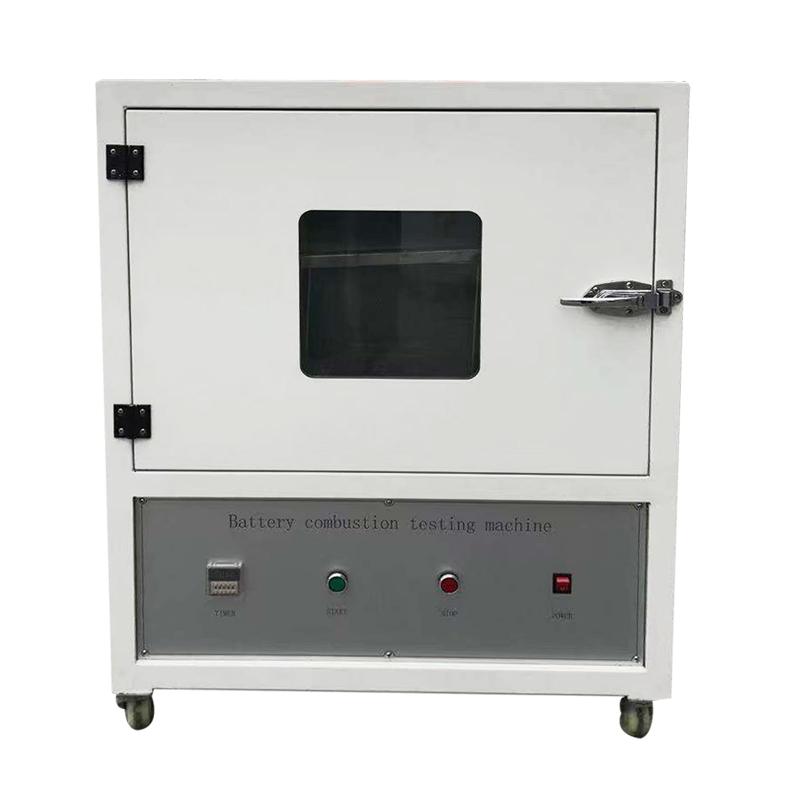

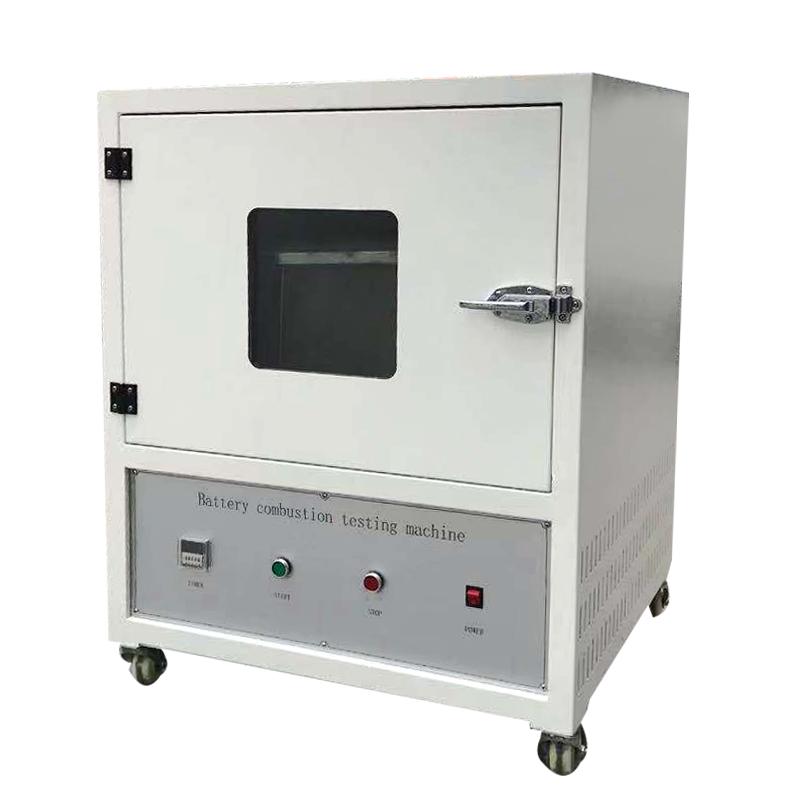

AISRY NBC-9017 Battery combustion testing machine, battery Combustion test chamber Bunsen lamp automatic ignition

Name: AISRY NBC-9017 Battery combustion testing machine, battery Combustion test chamber Bunsen lamp automatic ignition
Brand: AISRY
SKU: NB044776
Price: 1754.0 USD
Availability: InStock

$ 1754.00Ex works

Using Bunsen burner combustion device, nozzle inner diaMeter 9.5mm, automatic ignition control, flame application time accuracy of +/- 0.1 seconds, can simulate open flame environment to evaluate battery flame resistance and leakage risk.

Model

NBC-9017

Get Quote

Category : Other Instruments

Brand : AISRY

SKU : NB044776

Service :The delivery and service By NBCLab.Com

Overview

The battery combustion tester is a device specially used to test and evaluate the reaction and safety of batteries in the case of fire. It is mainly used to simulate the performance of batteries under extreme high temperature conditions, and to evaluate their safety performance under extreme conditions by observing the reaction of batteries in combustion tests. It is suitable for various types of batteries.

Features

1. Automatic control functions, including automatic ignition and test process automation 2. Precise flame application time control with accuracy of +/- 0.1 seconds 3. Equipped with complete components such as standard metal mesh covers and screens 4. Suitable for a variety of gaseous fuels, including liquefied gas or methane

Principle

Place the specimen (battery) on a mesh screen, which is fixed 38.1mm above the top of the combustion device. Ignite the combustion device and observe the combustion of the battery until the battery explodes or burns out, and time the combustion process.

Applications

Electronics, electric vehicles, aerospace

Standards

UL1642、SJ/T11170

Steps

1. Put the specimen (battery) on the mesh screen, and the mesh screen is fixed at 38.1mm above the top of the combustion device Step 2 Ignite the combustion 3. Observation of battery combustion 4. Until the battery explodes or burns 5. Timing the combustion process

Notice

• The machine needs to be installed and positioned on a horizontal platform with a certain strength • operating environment requirements: room temperature within the range of 10 ℃ -40 ℃ • environment humidity within 30% -80%

Combustion device
Bunsen lamp, the inner diameter of the nozzle is 9.5mm and the length is about 100mm.
flame application time
0~ 999.9 seconds +/- 0.1 seconds
Test round hole surface diameter
102mm
automatic control
Automatic ignition, automatic control of the test process
Use gas
Liquefied gas, or methane
Test cover width
24 inches (610mm), octagon
Test cover height
12″（305mm）
component
Including combustion device and support frame, test table, standard metal mesh cover, standard metal mesh screen
operating environment requirements
Room temperature within the Range of 10℃ -40℃; environment humidity within 30% -80%
other
The machine needs to be installed and positioned on a horizontal platform with a certain strength

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
