Overview

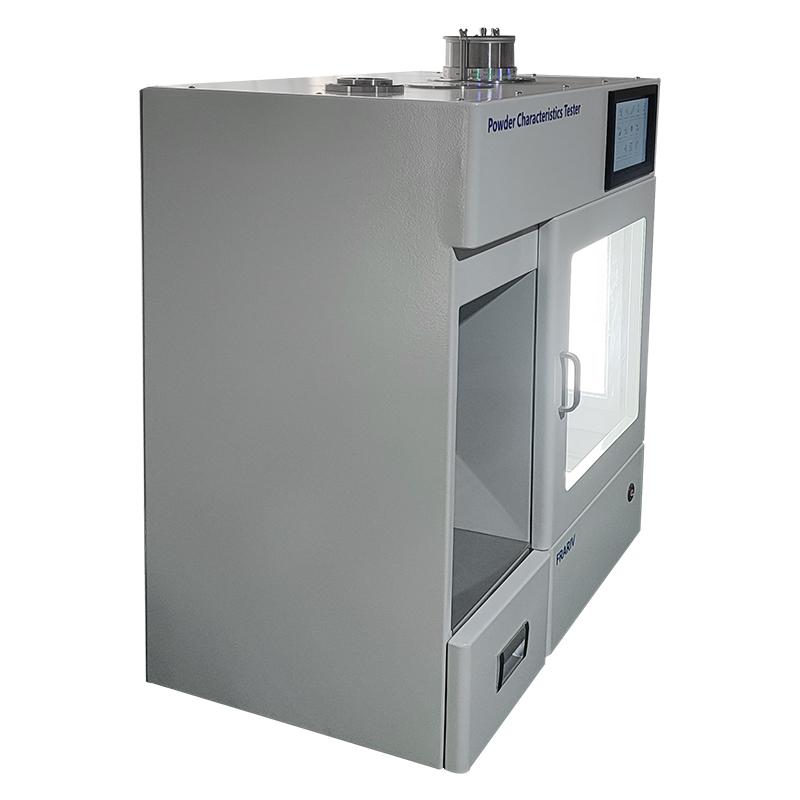

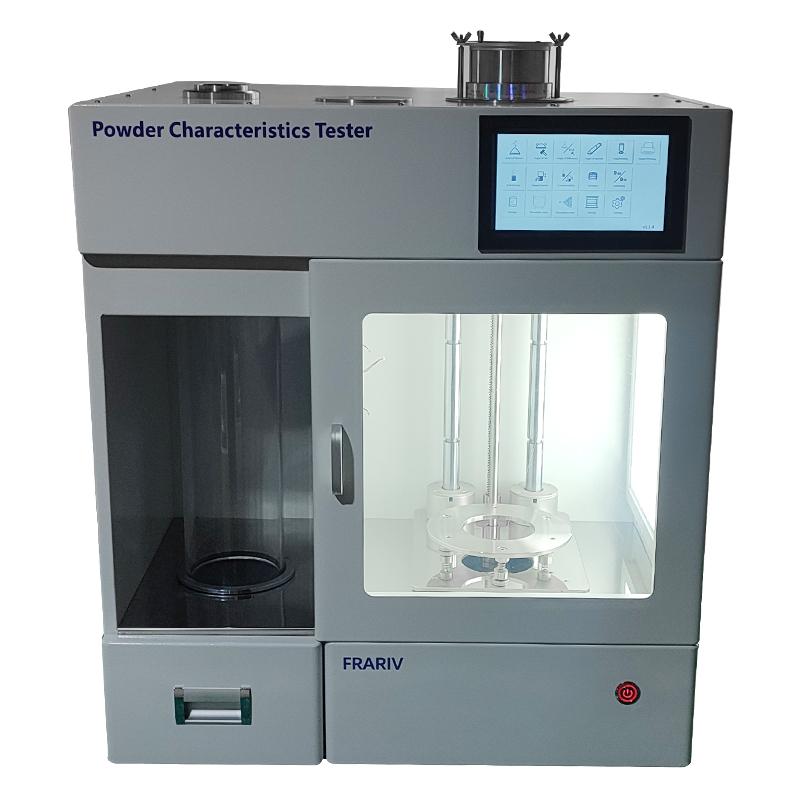

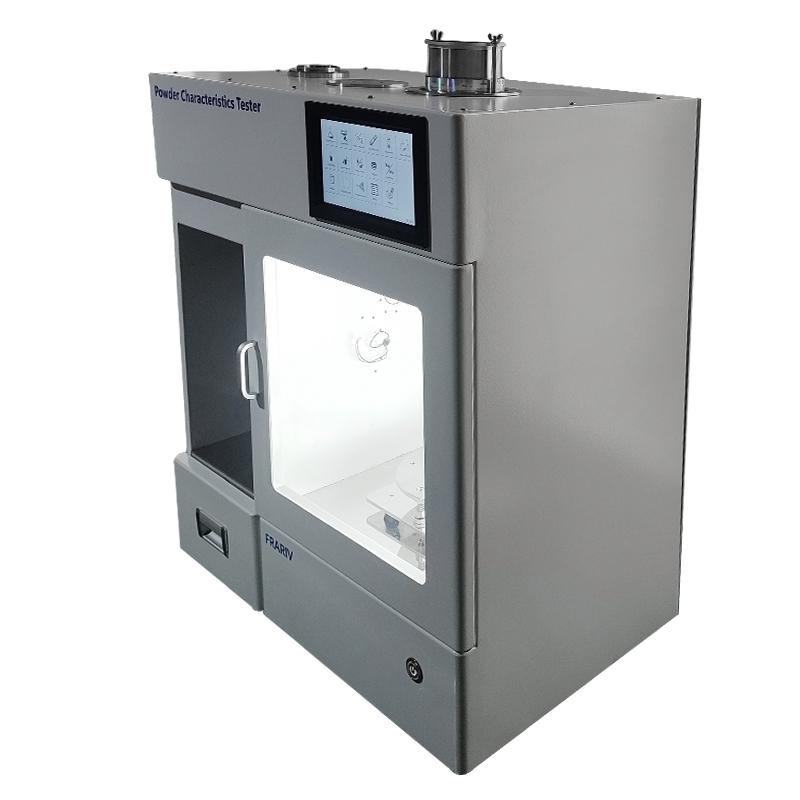

FRARIV K110 powder physical characteristic tester is a precision instrument professionally used for the measurement of various physical characteristics of powder materials. The equipment supports a number of test items such as angle of repose, collapse angle, loose density, tap density, etc., and can automatically calculate key parameters such as flowability index and compression degree according to the measurement results.
Features

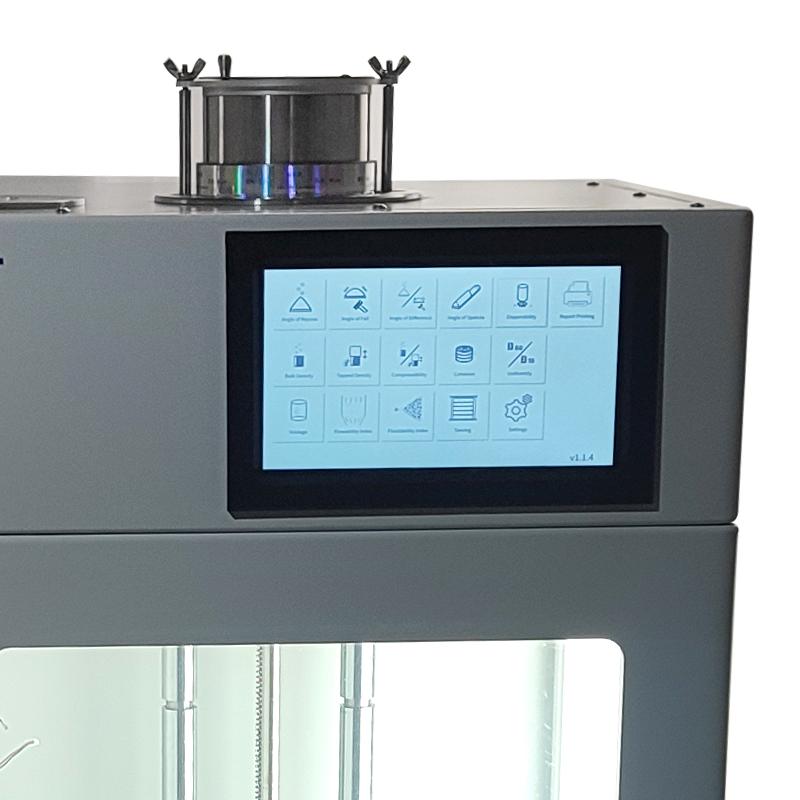

1.7-Inch touch screen operation interface
2. Angle measurement using image method automatic measurement
3. Vibration amplitude 3mm, 14mm optional
4. Vibration frequency is adjustable from 0 to 300 rpm
5. Repeatability error ≤ 3%
6. Support wireless network connection
7. Equipped with electronic reporting software PCTSee, supports Windows 10 and Android systems
8. Integrated printing function, maximum printing format A4
9. Equipped with High Accuracy Balance, maximum weighing 500g, resolution 0.01g
10. Vibration sieves available in a wide range of sizes from 45μm to 2000μm
Principle
The instrument automatically measures the angle of repose and collapse angle of the powder by image method, measures the tap density by vibration device, and uses the standard funnel method to measure the loose density and flowability. The equipment is equipped with High Accuracy Balance for mass measurement, and combines special software to automatically calculate the physical characteristic parameters such as compression degree and flowability index.
Applications
Powder material testing, particle material physical performance analysis, metal powder characteristic testing, dust physical property testing
Standards
ASTM D6393-14、GB/T 31057.2-2008、GB/T 31057.3-2008、GB/T 5162-2006/ISO 3953:1993、GB/T 1482-2010、GB/T 1479.1-2010、GB/T 16913-2008
Steps
1. Connect the power supply and turn on the device.
2. Set test parameters through a 7-inch touchscreen
3. Select the appropriate test item
4. Place samples and make measurements
5. Equipment automatically calculates relevant parameters
6. View or print test results through electronic reporting software
Notice
• Power supply voltage must be kept within the range of AC220V +/- 10V 50Hz
• Balanced environment temperature should be controlled at 0~ 40 ℃
• Balanced environment humidity should be ≤ 80% RH
• Ensure that the equipment is placed on a stable workbench
• Check whether each connection interface is firm before use
• Regularly calibrate equipment to ensure Measurement accuracy
• Test according to standard operating procedures
