Overview

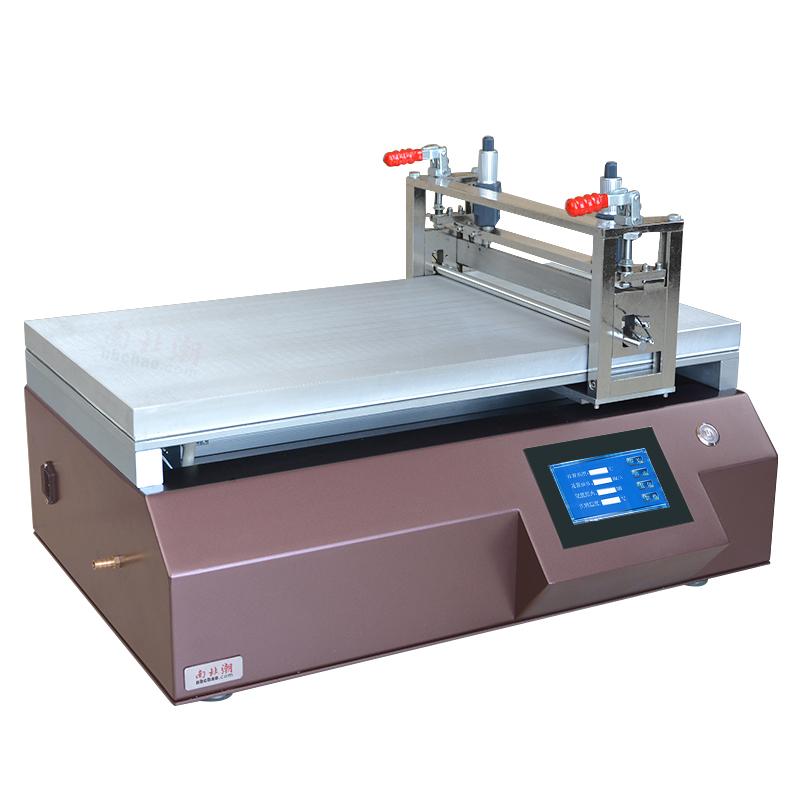

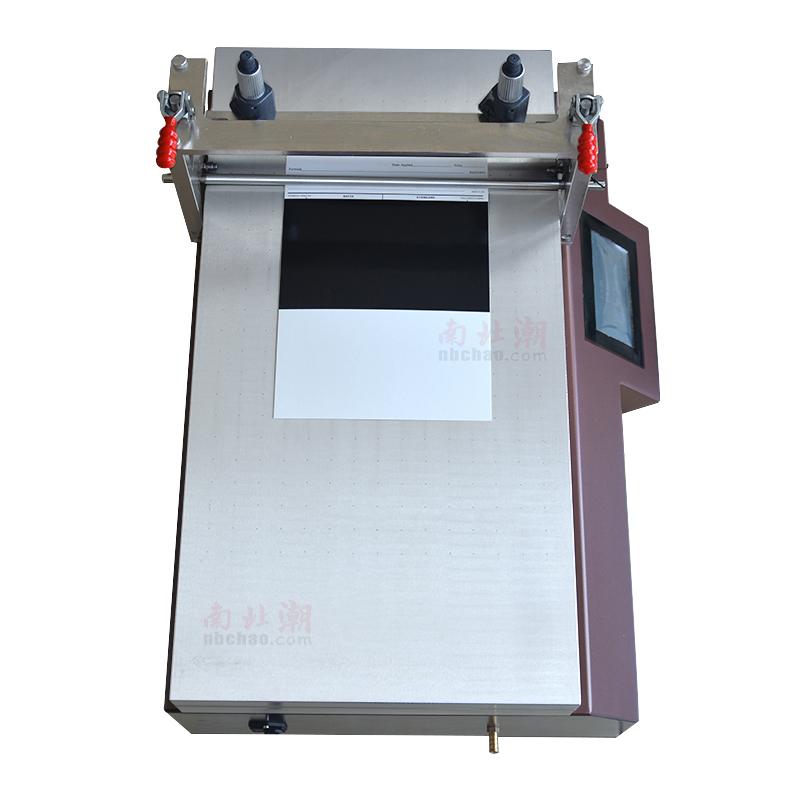

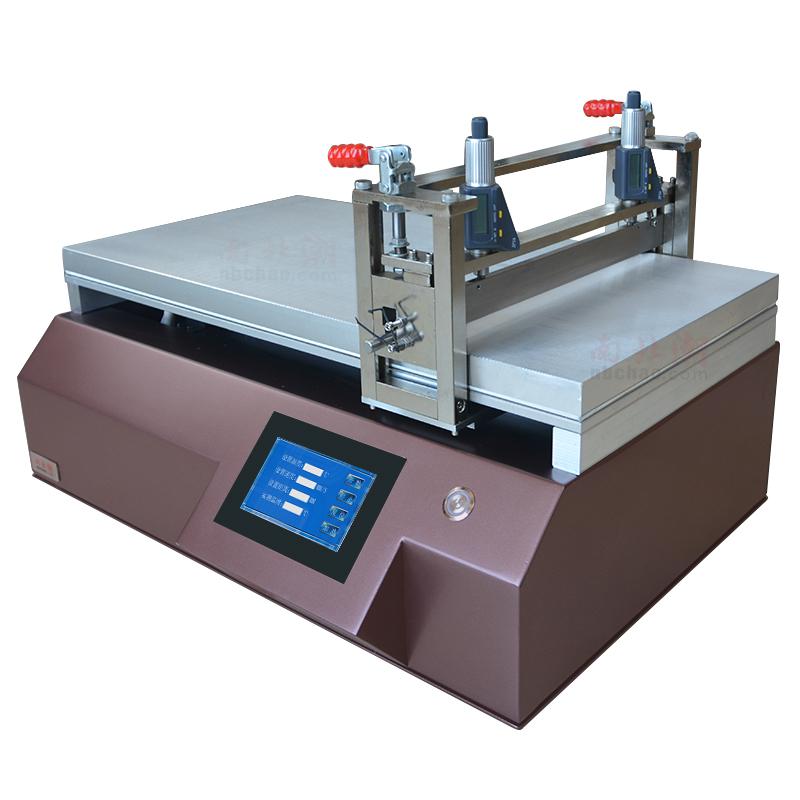

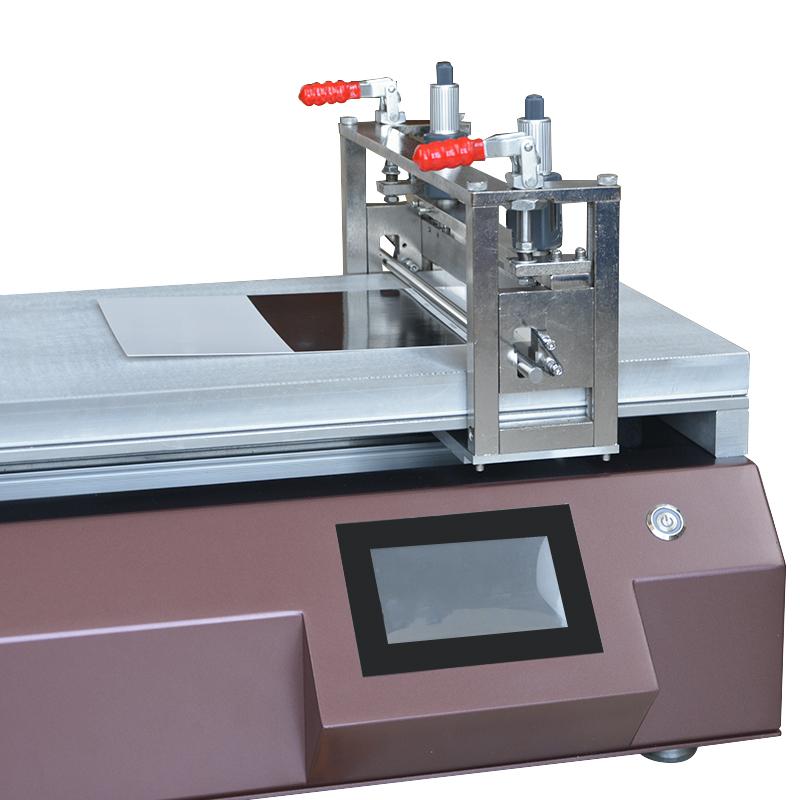

TBJ-X5-DJ5 Automatic Film Applicator is a China small Spreader test equipment, all imported accessories, cheap, favored by multinational R & D institutions, domestic and foreign universities and scientific research institutions. The equipment ensures the uniformity and smoothness of Spreader coating by controlling the speed and stable pressure of the Spreader, solves the problem of inconsistent artificial film, and significantly improves the reproducibility of the film.
Features
1. Using imported accessories, the price is good and cheap
2. Spreader accuracy up to +/- 0.003mm

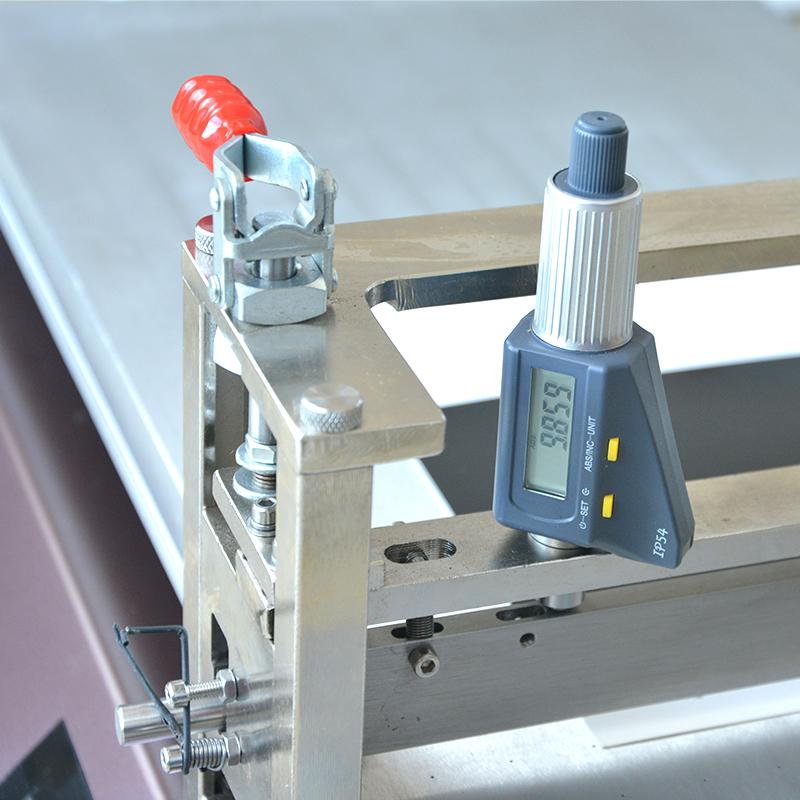

3. Spreader Film thickness range 0~ 10mm, scraper can lift
4. Spreader speed 5~ 180mm/s, support customization
5. Spreader area 400 * 300mm
6. Digital Display Spreader Speed
7. Vacuum adsorption size 400 * 300mm, can be customized
8. Temperature range RT +~ 180 ℃, temperature accuracy +/- 3 ℃
9. Infinitely variable speed control
10. Spreader is made of aluminum alloy
11. The scraper is removable, easy to clean and replace
Principle
Automatic Film Applicator achieves accurate Spreader wet-film on different substrates by controlling the speed of the Spreader and the stable pressure applied to the film applicator. This solves the problem of coating differences caused by inconsistent speed and pressure of artificial films, ensures the uniformity and smoothness of the Spreader coating, and improves the reproducibility of the film.
Applications
Multinational enterprise R & D institutions, domestic and foreign universities, scientific research institutions
Steps
1. Prepare the Spreader substrate and place it on the Spreader stage
2. Set Spreader speed and pressure parameters according to requirements
3. Start the device for automatic filming
4. Monitor Spreader Process to Ensure Uniformity
5. Clean Equipment After Spreader
Notice
• Power supply voltage 220V 50Hz before use
• Spreader Film thickness should be in the range of 0~ 10mm
• Heating temperature must not exceed 180 ° C
• Regular cleaning of removable scraper to maintain performance
• Film thickness uneven substrate can choose silicone pad and weight accessories
• Customized functions need to be confirmed in advance
