Overview

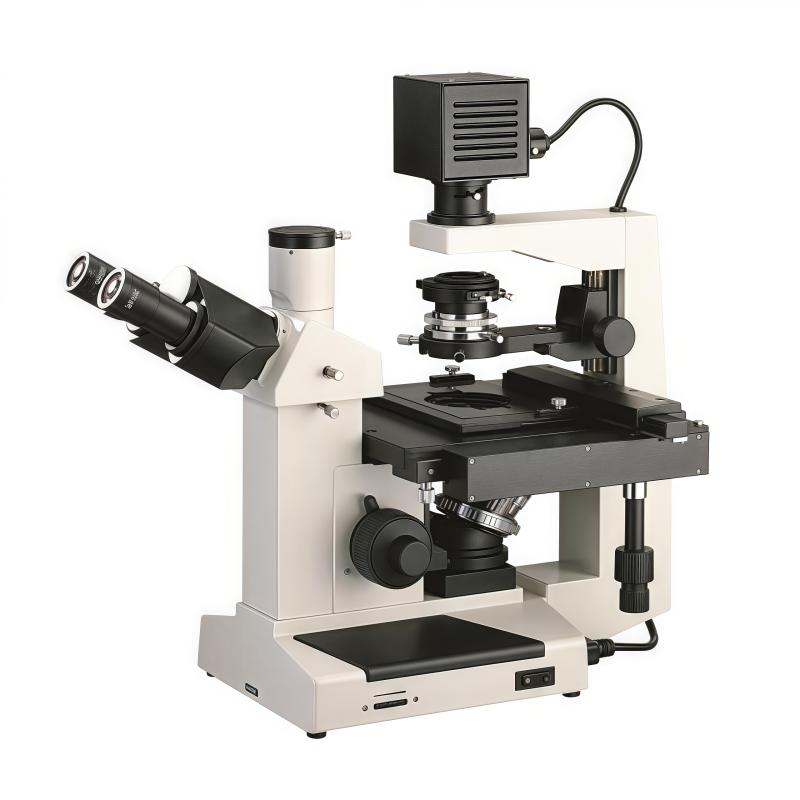

The BM-37XF inverted biological microscope is equipped with a long working distance flat-field color difference objective, a large-field eyepiece and a swirl/spin swing-out condenser. The removable mechanical mobile carrier device can meet the needs of different height culture dish observation. The product has a compact structure and a reasonable design of the operation part, which makes the observer feel relaxed and comfortable during the operation of the instrument. The product is suitable for microscopic observation of transparent liquid tissue, and dynamic microscopic observation of foster tissue in culture dish.
Features
1. Configure long working distance flat field color difference objective and large field of view eyepiece
2. Swirling/spinning condenser
3. Removable mechanical mobile loading device to meet the different height culture dish observation
4. Compact structure and reasonable design of operating parts
5. Pull plate type phase contrast condenser with adjustable center of phase contrast ring
6. Four-hole converter, magnification 100X-400X
Principle
Microscopic observation of transparent liquid tissue and foster tissue in a culture dish is performed by configuring a long working distance flat field color difference elimination objective and a large field of view eyepiece, combined with a swirl/spin swing-out condenser and a phase contrast system. Illuminant is provided using a 6V30W halogen lamp illumination system, and 100X-400X magnification is achieved through a combination of objective and eyepiece.
Applications
Research institutes, colleges and universities, agriculture, animal husbandry and dairy industry, tissue engineering, microbiology, water quality testing, environment science
Steps
1. Choose the appropriate culture dish pallet according to the observation needs
2. Place the culture dishes on the stage
3. Select the appropriate objective and eyepiece combination
4. Adjust pupil distance and focus device
Step 5 Choose the right color filter
6. Adjust the luminance of the lighting system
7. Conduct observation records
Notice
• Check whether the components are in good condition before use
• Choose the right culture dish pallet to place the foster utensils
• Pay attention to the tightness when adjusting the coarse micro-motion coaxial focusing device
• Ensure accurate adjustment of the center of the phase contrast ring when using the phase contrast system
• Optical inspection parts are cleaned regularly
• Pay attention to the use time of the light bulb to avoid overheating
