Overview

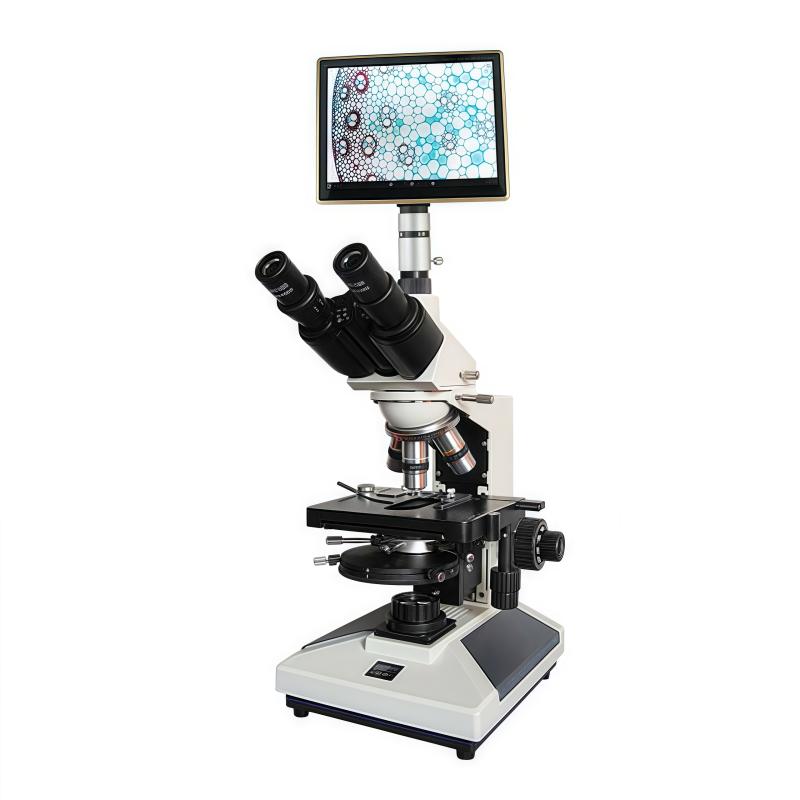

BM-PHP Tablet Phase Contrast Microscope is designed based on the principle of microscopy Optical inspection imagery and phase contrast microscopy technology, which is suitable for observing and studying low contrast, non-staining living specimens, such as aquatic plankton. The Microscope uses electric Illuminant, the luminance can be continuously adjusted, and the hinged lens barrel is inclined 30 ° and can rotate 360 degrees freely.
Features
1. Phase Contrast Technology: Integrated Phase Contrast Optical inspection system to enhance the contrast ratio of transparent samples and make observations clearer and more detailed.
2. Digital imagery system: Equipped with high-resolution digital cameras, digital imagery, observation and recording are realized through tablet computers.
3. Tablet connection: Connect the tablet via USB, WiFi or Miscellaneous interface to support real-time observation and control.
4. Image processing software: Software supports image enhancement, measurement, analysis and annotation to meet the needs of scientific research and teaching.
5. Real-time video streaming: Generate a real-time video stream through a tablet computer, making it easy to observe the dynamic process of biological samples.
6. Autofocus system: Some models may be equipped with autofocus to ensure that the sample remains in a clear focal plane.
Principle
The Microscope follows the principle of Optical inspection imagery and the theory of phase contrast microscopy, and enhances the contrast ratio of transparent samples through a phase contrast Optical inspection system to make them clearer in observation. The digital imagery system is connected to a tablet computer for real-time image capture and processing.
Applications
Aquatic plankton observation, living sample specimen study
Steps
1. Connect the tablet: Connect the Microscope to the tablet via a USB, WiFi, or Miscellaneous interface.
2. Turn on the Illuminant: Start the Electric Illuminant and adjust the luminance.
3. Place the sample: Place the sample on the stage.
4. Adjust the focal length: Use the coarse fretting focusing device to adjust to a clear focal plane.
5. Observation and recording: real-time observation through the tablet, using image processing software for image enhancement, measurement and recording.
6. Optional autofocus: If equipped, enable the autofocus system to keep the sample clear.
Notice
Make sure that the connection between the Microscope and the tablet is stable to avoid loose interfaces.
- Avoid excessive brightness when adjusting Illuminant luminance to prevent damage to the sample or equipment.
When using the oil mirror, pay attention to correct operation to prevent oil contamination.
- Optical inspection parts are cleaned regularly to maintain imagery mass.
- Follow the Operation Manual to avoid damage caused by improper use.
