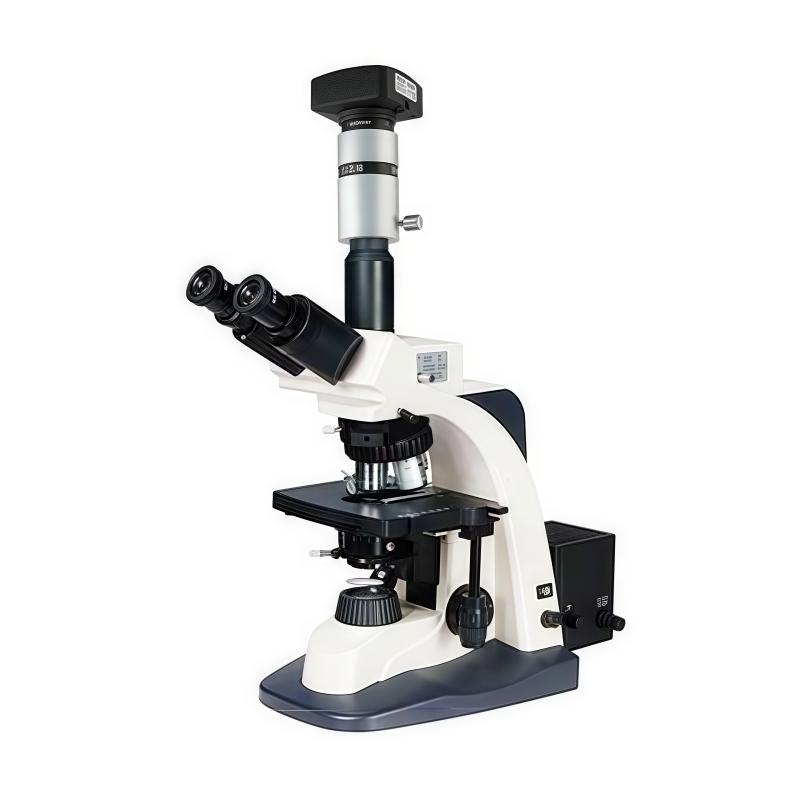

Varnishing BM-SG10D Computer Research Bio-Microscope Infinity Infinity Color difference Flat Field Objective

Name: Varnishing BM-SG10D Computer Research Bio-Microscope Infinity Infinity Color difference Flat Field Objective
Brand: SHSGBM
SKU: NB044919
Price: 4501.0 USD
Availability: InStock

$ 4501.00Ex works

Adopting a semi-canceled color difference infinity flat-field objective, equipped with 5 million pixel CMOS camera and autofocus system, supports real-time video streaming and low-illumination environment imagery, and can be equipped with a variety of auxiliary equipment.

Model

BM-SG10D

Get Quote

Category : Microscope

Brand : SHSGBM

SKU : NB044919

Service :The delivery and service By NBCLab.Com

Overview

The BM-SG10D computer research-based biological microscope adopts a semi-retouching color difference infinity flat-field objective, which has strong scalability and can be equipped with vertical lighting devices, fluorescent devices and other auxiliary equipment. The instrument adopts Illuminant, the lighting can continuously adjust the luminance, and the three-eye hinged observation cylinder is inclined at 30 °, which can rotate 360 degrees freely. It is widely used in the teaching work and analytical experiments of chemistry and other research fields and Universities & colleges.

Features

1. Equipped with a high-resolution digital camera, the digitalization of biological sample images can be observed, stored and analyzed in real time by computer. 2. Supporting image processing Software supports image enhancement, measurement, analysis and annotation to meet the needs of scientific research and teaching. 3. Equipped with an autofocus system to ensure that the sample remains in a clear focal plane during long-term observation. 4. Capable of generating real-time video streams, making it easy to observe the dynamic process of biological samples. 5. Sensitivity imagery can be observed in low light environment.

Principle

The Microscope uses an infinity Optical inspection system to capture sample images through a semi-canceled color difference flat field objective and a digital CMOS camera for digitalization and analysis using image processing software. The Illuminant uses a 12V/50W halogen lamp to support Kohler illumination, ensuring uniform illumination and high mass imagery.

Applications

Observe and record dynamic processes such as cell movement and morphological changes, provide high-mass digital microscopic images for the field of bioimaging, and use for microbial observation, water quality detection and other environmental monitoring fields

Mechanical barrel length
Infinity system (∞)
magnification
40X-1000X
Objective lens converter
Six hole converter
tube lens
Focal length: f = 200mm
Stage Size
Layer mobile platform 189 * 160mm, moving Range 80 * 50mm
pupil distance
55-75mm
Focusing device
30Mm coarse fretting coaxial focusing with limit, coarse fretting focusing tension locking device, fine-tuning grid value 0.002mm
condenser
N.A.1.25 Abbe condenser adjustable medium with variable light bar
Color filter
Blue, green, neutral
Illuminant
12V/50W halogen lamp, Kohler lighting, Illuminant adjustable
Computer imagery system
(1) Digital CMOS camera, 5 million pixels, with geometric measurement analysis software, the software for point, line, circle and arc, straightness, roundness, area measurement; (2) MCL-Z adapter mirror; (3) computer self-purchased

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
