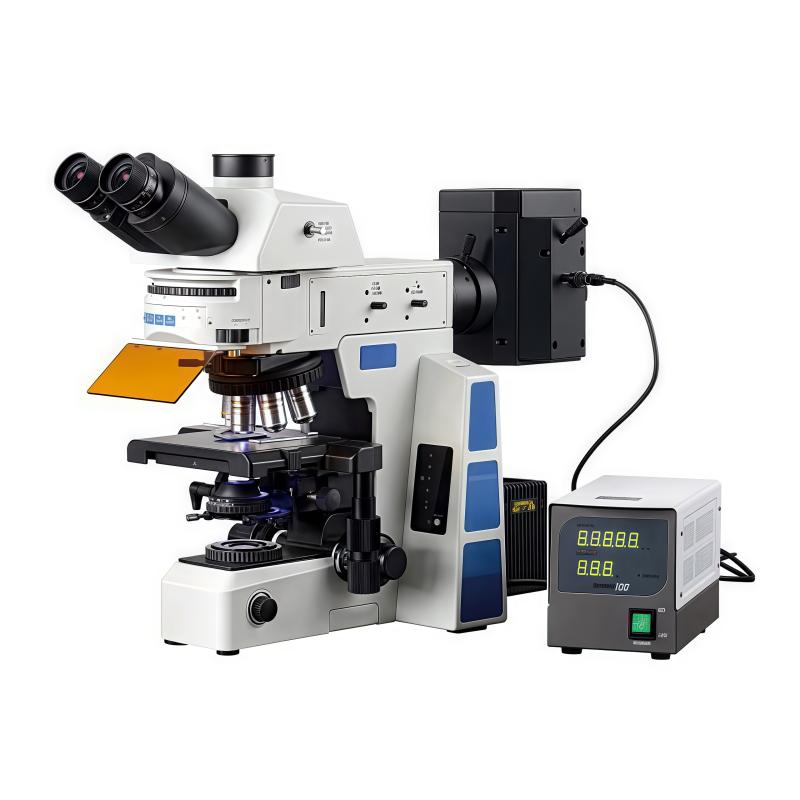

BM-SG15Y Research Fluorescence Microscope Infinity Optical inspection System Brightfield Fluorescence Phase Contrast Polarized Light

Name: BM-SG15Y Research Fluorescence Microscope Infinity Optical inspection System Brightfield Fluorescence Phase Contrast Polarized Light
Brand: SHSGBM
SKU: NB044929
Price: 28296.0 USD
Availability: InStock

$ 28296.00Ex works

Infinity Optical inspection system, support for Brightfield, Fluorescence, Phase Contrast, Polarization Observation mode; equipped with six-hole converter with DIC slot and 100W mercury lamp light source, providing high-resolution images; autofocus system to maintain sample focal plane stability.

Model

BM-SG15Y

Get Quote

Category : Microscope

Brand : SHSGBM

SKU : NB044929

Service :The delivery and service By NBCLab.Com

Overview

BM-SG15Y Research Fluorescence Bio-Microscope adopts infinity Optical inspection technology, the system uses Modular function combination, high-definition Optical inspection image, simple operation mechanism, easy to realize Brightfield, fluorescence, phase contrast, polarizing and other professional observation and analysis, fully meet the user request in the field of scientific research. This instrument adopts electric Illuminant, luminance can be continuously adjusted, hinged lens barrel, 30 ° tilt, 360 degrees free rotation.

Features

1. Microscope lens with high multiple and high numerical aperture to provide high resolution and clear fluorescence images 2. Equipped with an autofocus system to ensure that the sample focal plane is maintained during long-term observation

Principle

Optical inspection system is used in the microscope, which projects the sample image to infinity through the objective lens, and then forms an enlarged image through the eyepiece. Fluorescence observation irradiates the sample with excitation light of a specific wavelength, so that the fluorescent substance emits fluorescence, and penetrates the color mirror group to separate the excitation light and the emitted light to realize fluorescence imagery.

Applications

Research field

Notice

• Please read the instructions carefully before use • Illuminant safety during operation • Keep the lens clean • Avoid strong vibrations

Mechanical barrel length
Infinity system (∞)
spectral ratio
0:100；20:80；100:0
magnification
40X-1000X
Objective lens converter
Six-hole converter (with DIC slot, with luminance memory function)
Stage Size
Double-decked mobile platform 187 * 166mm, moving Range 80 * 55mm
pupil distance
50-76mm
Focusing device
25Mm coarse fretting coaxial focusing with limit, coarse fretting focusing tension locking device, fine-tuning grid value 0.001mm
condenser
N.A.0.9 Abbe condenser adjustable medium with variable light bar
Fluorescence device
6-Hole disc fluorescent reflection illuminator with variable field of view diaphragm, aperture diaphragm, center adjustable, with color filter slot and polarizer slot, fluorescent goggle board; 100W mercury lamp chamber, digital control
Fluorescence filter set
UV（EX375/28，BS415，EM460/50）、V（EX436/20，BS455，EM480/30）、B（EX480/30，BS505，EM535/40）、G（EX560/40，BS600，EM635/60）
lighting system
Compound eye lighting system
Illuminant
12V/100W halogen lamp with digital dimming, Light intensity setting and reset function, built-in transmitted light filter

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
