Overview

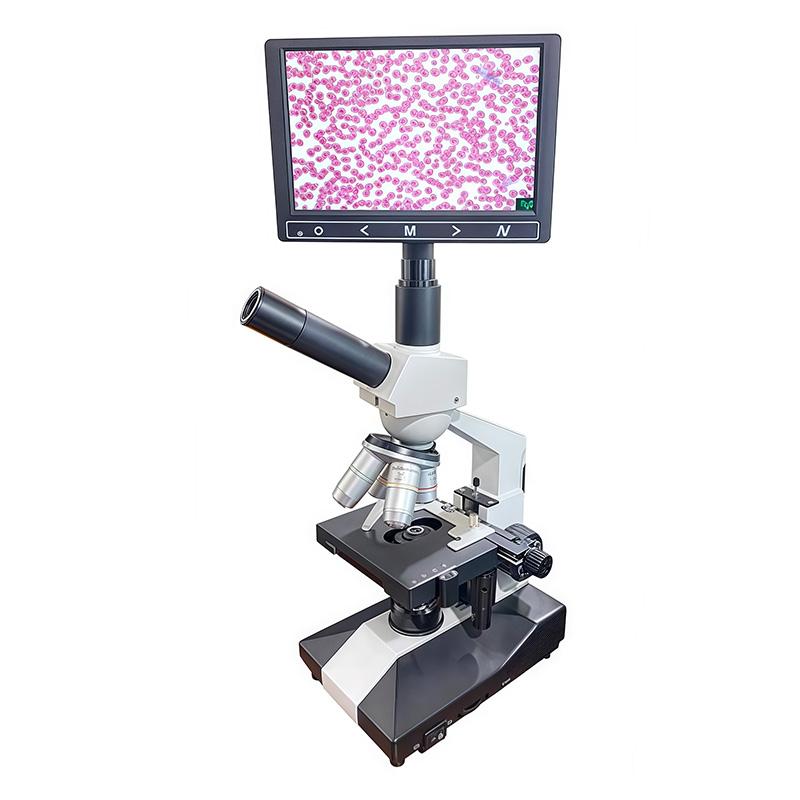

XSP-BM-1CAP Video Biomicroscope applies Optical Microscopy amplification technology to magnify specimens made of fine samples. It can be widely used in pathological inspection, routine laboratory tests and teaching research. The instrument adopts Illuminant, the lighting can continuously adjust the luminance, the hinged lens barrel is inclined at 45 °, and the eyepiece barrel can rotate 360 degrees freely.
Features
1. Illuminant, continuous adjustment of luminance
2. Hinged lens barrel 45 ° tilt
3. The eyepiece barrel can rotate 360 degrees freely
4. Equipped with 7-inch display imagery system, support luminance, contrast ratio, Saturation, Hue, display mode, swirl/spin, Chinese and English language, reset function
5. Optical inspection system, magnification 40X-1600X
6.Double-decked mobile platform stage, moving range 60 × 30mm
7. Coarse micro-motion coaxial focusing mechanism, fine-tuning grid value 0.002mm
8.N.A.1.25 Abbe condenser adjustable medium with variable light bar
Principle
The microscope applies the amplification technology of Optical Microscopy to amplify the specimen made of the collected fine sample through the combination of objective lens and eyepiece, using LED Illuminant illumination, optimizing the imagery through condensers and color filters, and finally presenting the enlarged image on the display screen.
Applications
Laboratory research, teaching and training, environment monitoring, industrial testing
Steps
1. Prepare the specimen and place it on the stage
2. Turn on LED Illuminant and adjust luminance
3. Use coarse fretting coaxial focusing mechanism for focusing
4. Observe the specimen through eyepieces or display screens
5. Adjust the condenser and color filter as needed
6. Use the display function to adjust image parameters such as luminance, contrast ratio, etc
Notice
Make sure the instrument is placed smoothly before operation
- Avoid eye damage when adjusting Illuminant luminance
- Pay attention to adding and cleaning the mirror oil correctly when using the oil mirror
- Optical inspection parts are cleaned regularly to prevent dust from affecting the imagery
- Follow safe operating procedures to avoid specimen contamination
