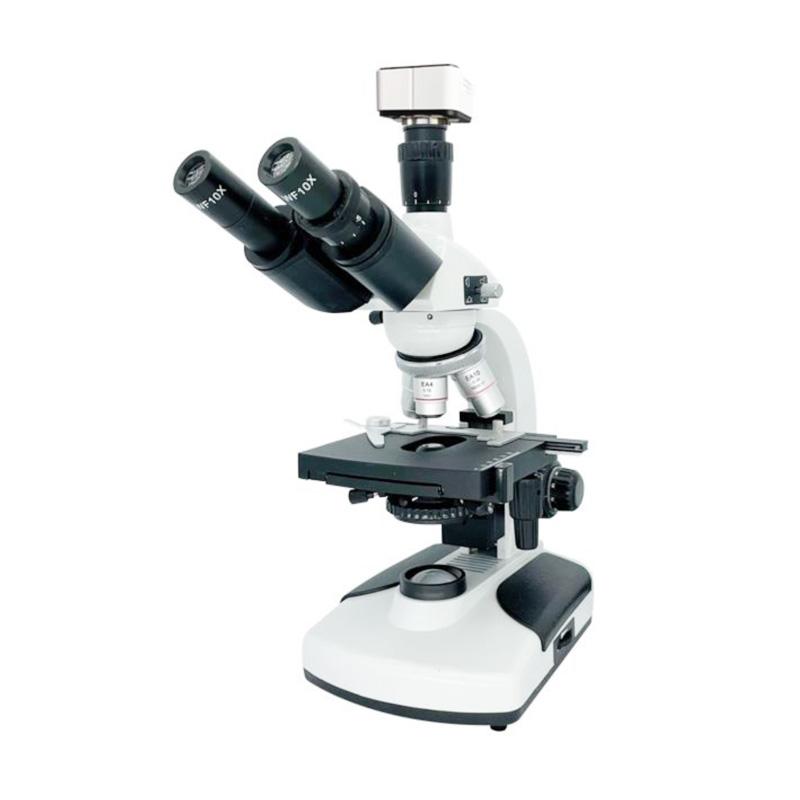

Varnishing XSP-BM-2CBAD Computer Biological Microscope Trinocular Video Microscope High resolution imagery

Name: Varnishing XSP-BM-2CBAD Computer Biological Microscope Trinocular Video Microscope High resolution imagery
Brand: SHSGBM
SKU: NB044940
Price: 723.0 USD
Availability: InStock

$ 723.00Ex works

Equipped with 2 million pixel CMOS camera to achieve high-resolution imagery, support real-time video recording and playback functions, with autofocus and contrast ratio adjustment, Optical inspection magnification 40X-1600X to meet the needs of microscopic observation.

Model

Get Quote

Category : Microscope

Brand : SHSGBM

SKU : NB044940

Service :The delivery and service By NBCLab.Com

Overview

XSP-BM-2CBAD Computer Biological Microscope is widely used in chemical research institutes and laboratories, and the trinocular biological Microscope can be used for teaching in school laboratories. This instrument adopts electric Illuminant, the luminance can be continuously adjusted, the hinged barrel is inclined at 30 °, and it can rotate 360 degrees freely.

Features

1. Real-time video observation: Capturing real-time video images of biological samples through a camera allows users to continuously observe dynamic processes in the sample. 2. digitalization imagery: with digital imagery system, by connecting to a computer or Miscellaneous digital equipment, to achieve image digitalization, easy recording, storage and sharing. 3. High resolution: The high resolution camera ensures that the details of tiny structures such as cells and microorganisms in the video can be clearly seen. 4. Video recording and playback: With video recording function, users can record the observed video for subsequent analysis, teaching or display, and support playback function. 5. Autofocus and contrast ratio adjustment: Some models are equipped with autofocus and contrast ratio adjustment functions to improve the observation effect and reduce the burden of user operation.

Principle

The Computer Bio-Microscope magnifies sample images through an Optical inspection system, combines with a camera to capture real-time video, and connects to a computer for digitalization and analysis.

Applications

Laboratory research, teaching and training, environment monitoring, industrial testing

Standards

Not mentioned

Steps

Not mentioned

Notice

Not mentioned

Mechanical barrel length
160mm
Optical inspection magnification
40X-1600X
pupil distance
55-75mm
Stage Size
Mobile platform: 130 * 125mm; Movement Range: 70 * 30mm; Vernier: 0.1mm
Focusing device
15Mm coarse fretting focusing coaxial mechanism; fine-tuning grid value 0.002mm
condenser
N.A.1.25 Adjustable medium Abbe condenser with variable light bar
Color filter
Blue, yellow, green
Illuminant
Halogen lamp 6V/20W, adjustable luminance
Computer imagery system
① Digital CMOS camera, 2 million pixels, with geometric measurement analysis software. (The software for point, line, circle and arc, straightness, roundness, area, etc.); ② C interface; ③ Computer self-purchase

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
