Overview

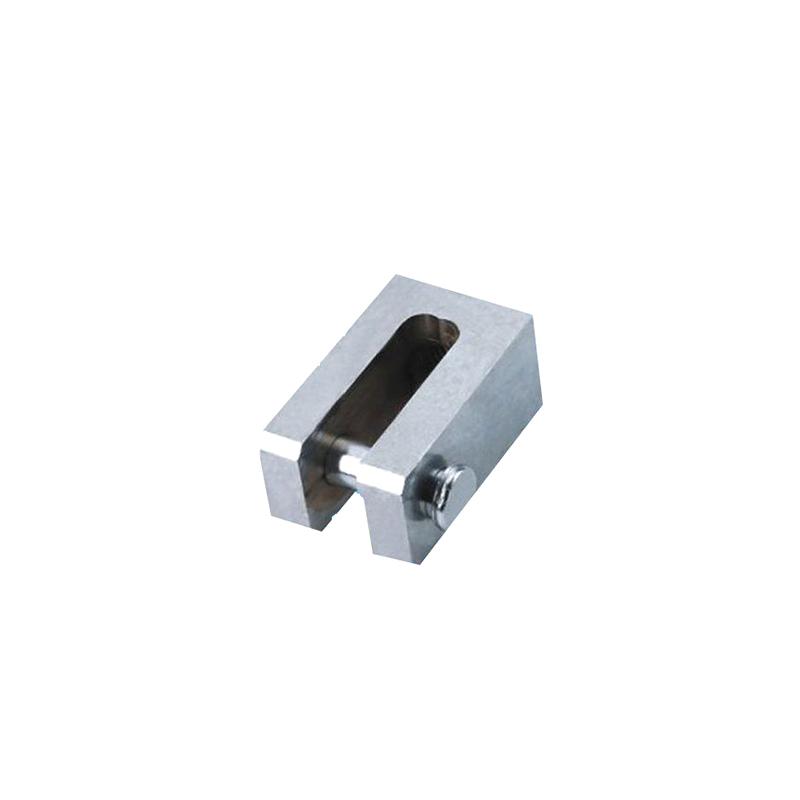

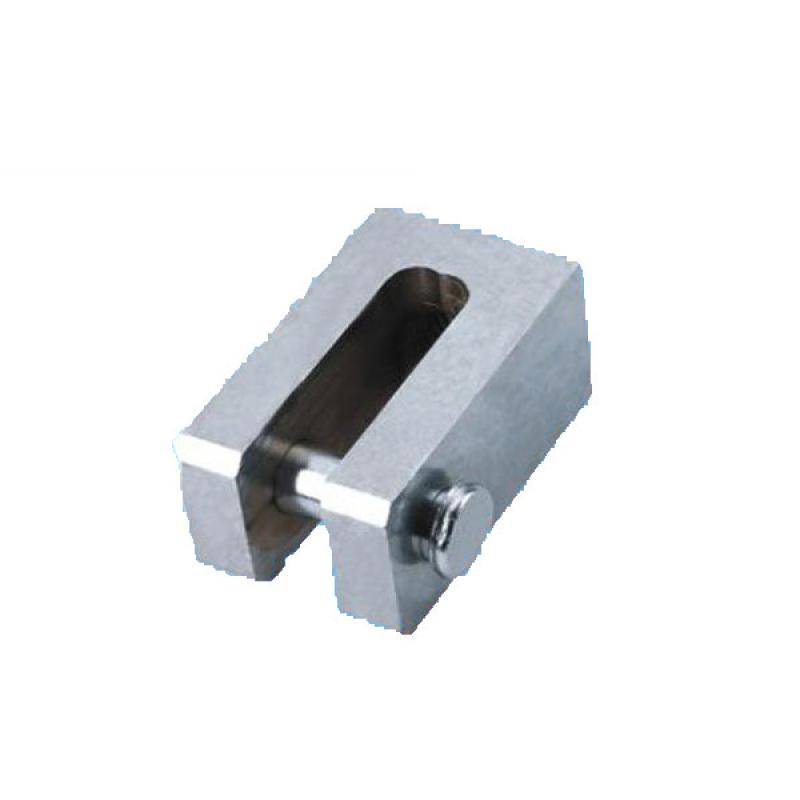

The HJJ series Force Gauge fixture is a fixture product produced by HBO for supporting Force Gauge test bench testing. This series of fixtures assist in testing when the Force Gauge is assembled on the test stand for tensile testing. Different models are applicable to different ranges. The conventional HJJ series has fifteen different models (HJJ-01~ HJJ-15), which are suitable for different fields such as tape, leather, clothing, rubber, electrical components, paper, etc.
Features
1. Dedicated to supporting Force Gauge Test Bench
2. Serial design, available in 15 different models
3. Suitable for multi-material testing
Principle
When the Force Gauge is mounted on the test stand for tensile testing, the fixture is used to assist in fixing the tested material to achieve accurate testing of push-pull force and destructive force.
Applications
Tape, leather, clothing, rubber, electrical components, paper
Standards
Tape, leather, paper and other sheet, block material push-pull force and destructive force test
Steps
1. Select the appropriate type of fixture
2. Fit the fixture to the Force Gauge test stand
3. Fix the tested material in the fixture
4. Conduct push-pull or destructive force tests
Notice
• Different types of fixtures have different application scopes, please choose the appropriate model according to the test material
• Measured values are 50000N, 100000N, 150000N, 450000N and other specifications, please do not overload
• Only suitable for use with the matching Force Gauge test bench
