Overview

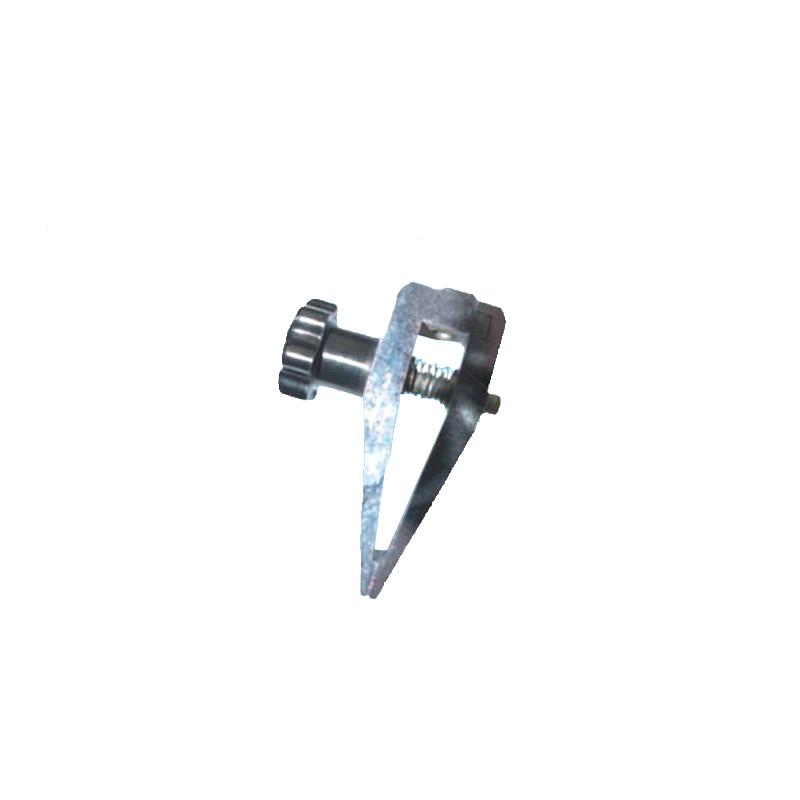

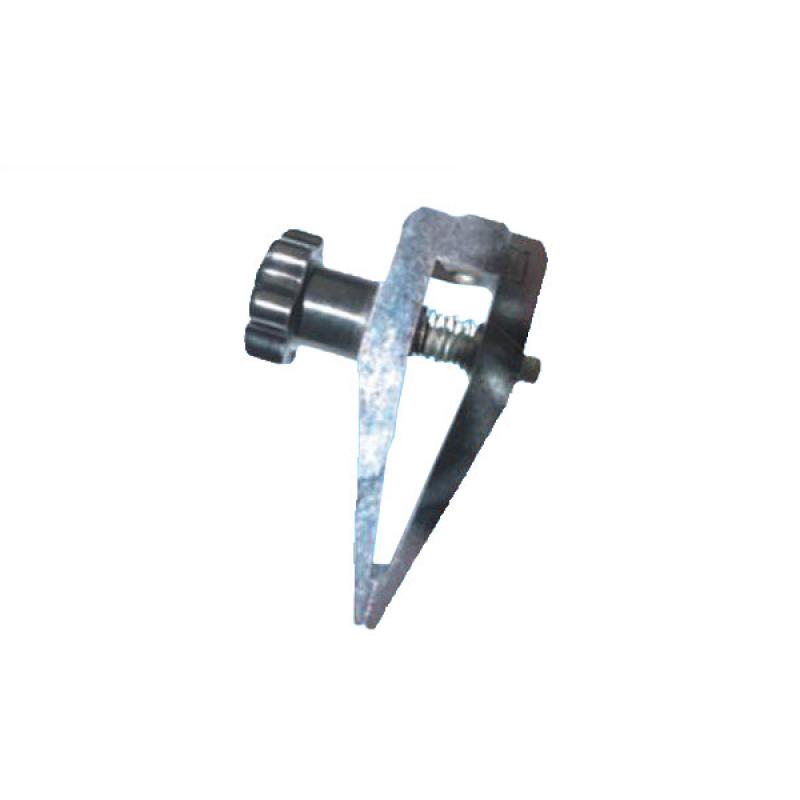

The HJJ-13 fixture is a fixture produced by HBO for supporting the Force Gauge test bench test. When the Force Gauge is assembled on the test rack for tensile testing, a fixture is required to assist in the test. It is suitable for testing the tensile force, destructive force and insertion force of rubber, various cables, paper, various electrical components, Plastic film and other materials.
Features
1. Dedicated to supporting Force Gauge test bench test
2. Measured value up to 500N
3. Suitable for multi-material testing
Principle
When the Force Gauge is assembled on the test stand for tensile test, the material to be tested is clamped through the fixture to assist in the testing of mechanical properties such as tensile force, destructive force, and insertion force.
Applications
Rubber, various cables, paper, various electrical components, Plastic film
Steps
1. Fit the Force Gauge to the Test Rack
2. Use a fixture to hold the material to be tested
3. Conduct tensile, destructive or insertion force tests
Notice
• Different types of Force Gauge fixtures have different application ranges, please choose according to actual needs
• Measured value is 500N, do not overload
