Overview

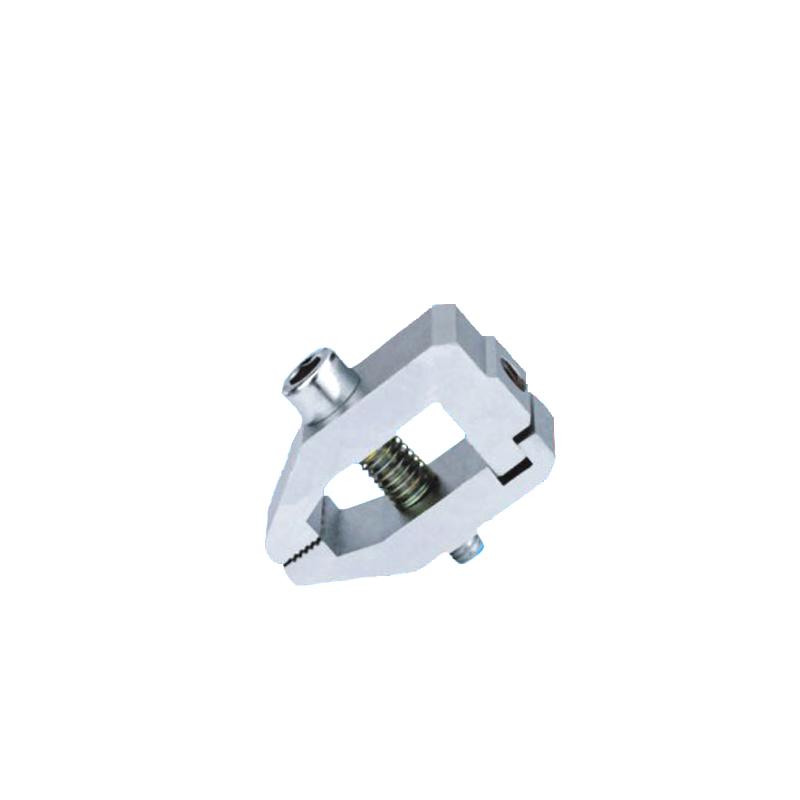

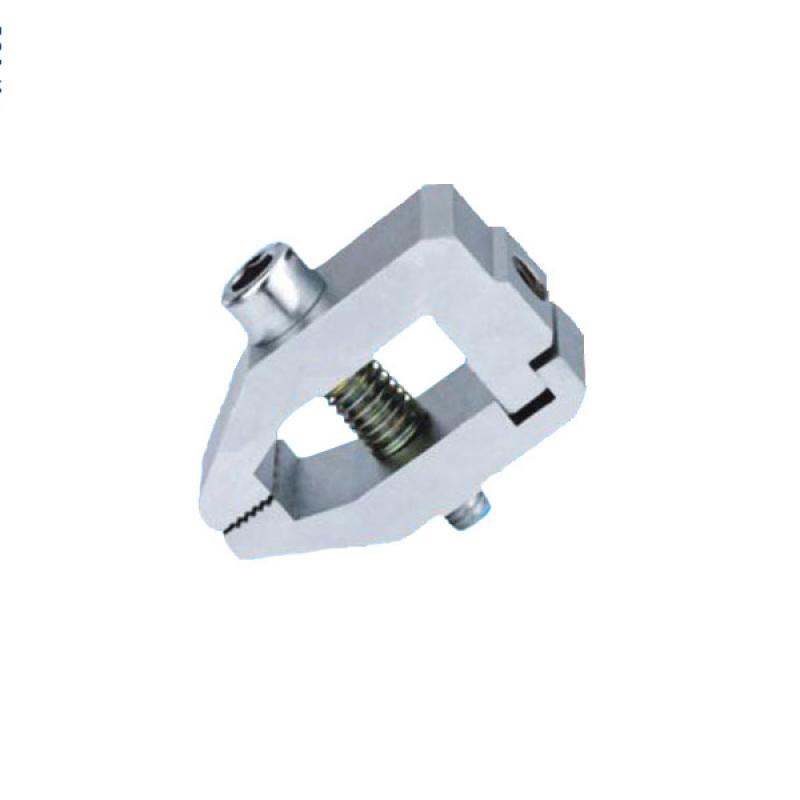

The HJJ-08 fixture is one of the HJJ series Force Gauge fixtures produced by HBO, which is dedicated to supporting the Force Gauge test stand for tensile testing. The fixture provides assistance when the Force Gauge is assembled on the test stand for tensile testing, and is suitable for tensile, destructive, and insertion force testing of materials such as rubber, various cables, packing tapes, and various electrical components.
Features
1. Dedicated to supporting Force Gauge Test Bench
2. Suitable for multi-material testing
3. Measured value up to 1000N
Principle
When the Force Gauge is mounted on the test stand for tensile testing, the fixture is used to assist in fixing the test sample to ensure the accuracy and Stability of the tensile test.
Applications
Rubber, various cables, packing tapes, various electrical components
Steps
1. Fit the Force Gauge to the Test Rack
2. Use a fixture to secure the test sample
3. Conduct tensile, destructive or insertion force tests
Notice
• Different models of fixtures have different application ranges, please choose the appropriate model according to the test requirements
• Ensure that the fixture secures the test sample correctly to avoid test errors
• Measured value is 1000N, do not overload
