Overview

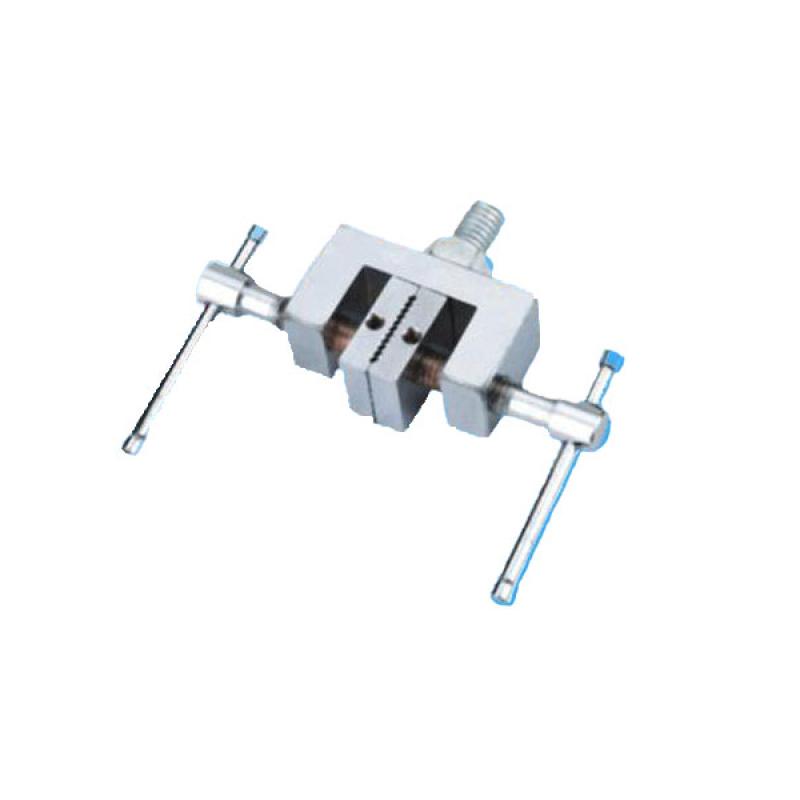

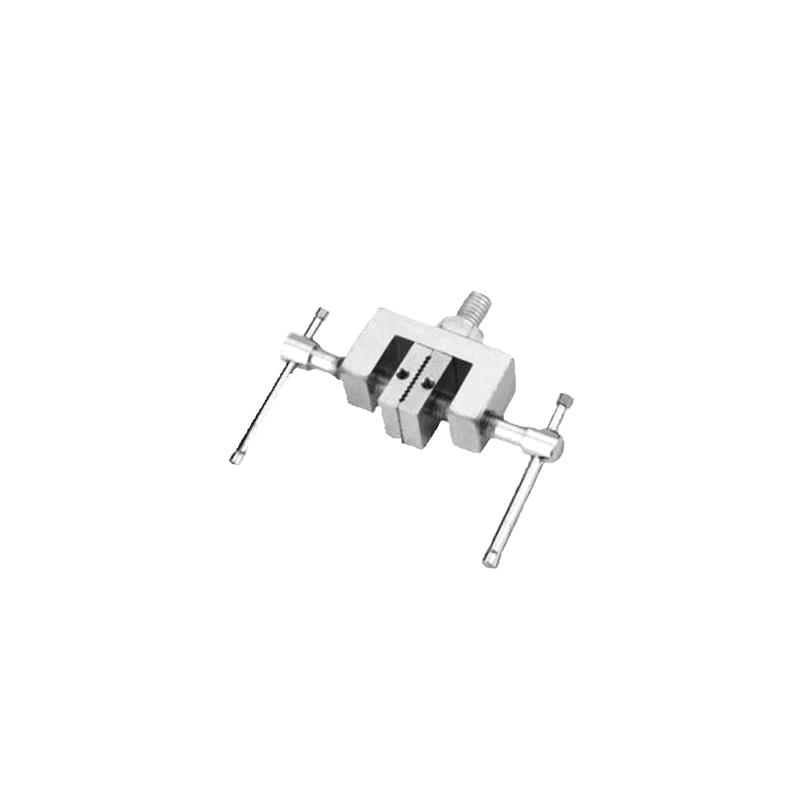

The HJJ series Force Gauge fixture is a fixture product produced by HBO for supporting the Force Gauge test bench test. When the Force Gauge is assembled on the test stand for tensile testing, the fixture needs to be used to assist the test. Different models of Force Gauge fixtures have different application ranges. Conventional HJJ series Force Gauge fixtures have fifteen different models (HJJ-01~ HJJ-15), which are suitable for different fields such as tape, leather, clothing, rubber, electrical components, paper, etc.
Features
1. Dedicated to supporting Force Gauge test bench test
2. Available in fifteen different models
3. Suitable for multi-material testing
4. Measured value up to 5000N
Principle
When the Force Gauge is mounted on the test stand for tensile testing, the material to be tested is fixed with a fixture to assist in the completion of the push-pull test and the destructive force test.
Applications
Tape, leather, clothing, rubber, electrical components, paper, etc
Standards
Bakelite Block, Glass, Leather, Paper and other sheet and block materials push-pull force, destructive force test
Steps
1. Fit the Force Gauge to the Test Rack
2. Choose the right HJJ series fixture
3. Use a fixture to secure the tested material
4. Perform a push-pull force test or a destructive force test
Notice
• Different types of Force Gauge fixtures have different applications, please choose the appropriate model according to the test material
• Measured value is 5000N, do not overload
• Suitable for sheet and bulk material testing
