Overview

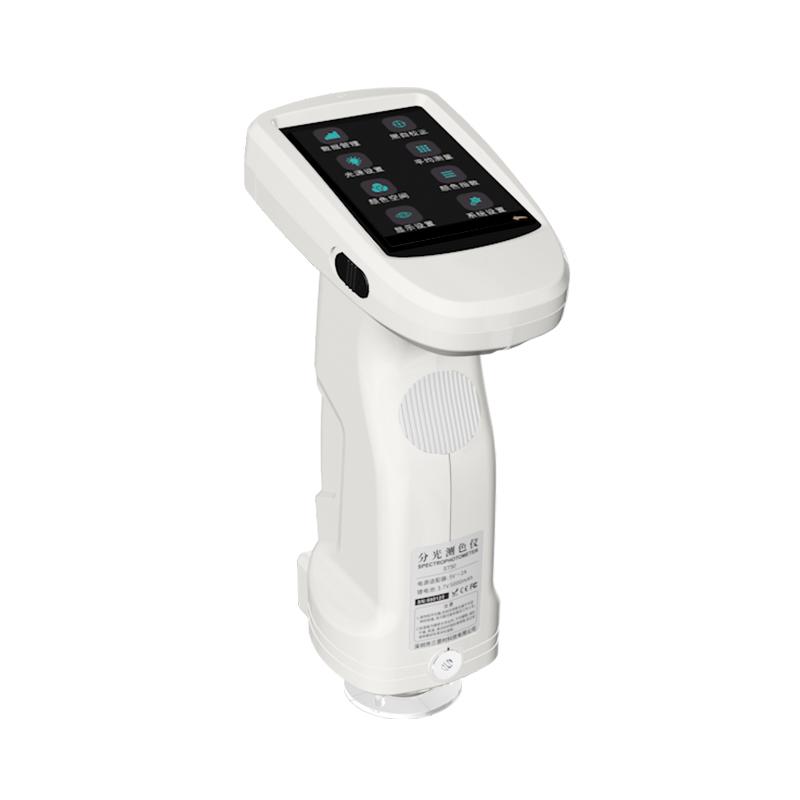

The HuiNuo NBC60 Colorimeter uses built-in photodiode array (dual row 26 groups) sensors and imported whiteboards, taking into account Measurement speed and operation convenience. Its Repeatability Delta E * ab is controlled within 0.025, and the Inter-instrument Agreement Delta E * ab is controlled within 0.15. The measurement is accurate, and the test data is suitable for accurate analysis and transmission of laboratory Color.
Features
1. Equipped with 4 measurement diameters, wider adaptability; 2. Repeatability Delta E * ab is controlled within 0.025, Inter-instrument Agreement Delta E * ab is controlled within 0.15; 3. Using combined full light spectrum LED Illuminant and UV Illuminant, Illuminant life up to 10 years is greater than 1.50 million measurements; 4. Support a variety of Color space and Color difference formula; 5. Equipped with camera positioning and stable chip positioning, easy operation; 6. Battery life is long, 8800 measurements can be made within 8 hours; 7. Support a variety of Interface and Software platforms.
Principle
The NBC60 Colorimeter uses a planar grating spectroscopic mode to receive reflected light through a built-in large-area silicon photodiode array (dual column 26 group) sensor. The illumination mode is D/8 (diffuse illumination, 8 ° direction reception), and the SCI/SCE is tested at the same time. The measurement Wavelength range is 400~ 700nm, and the wavelength interval is 10nm to achieve accurate Color measurement.
Applications

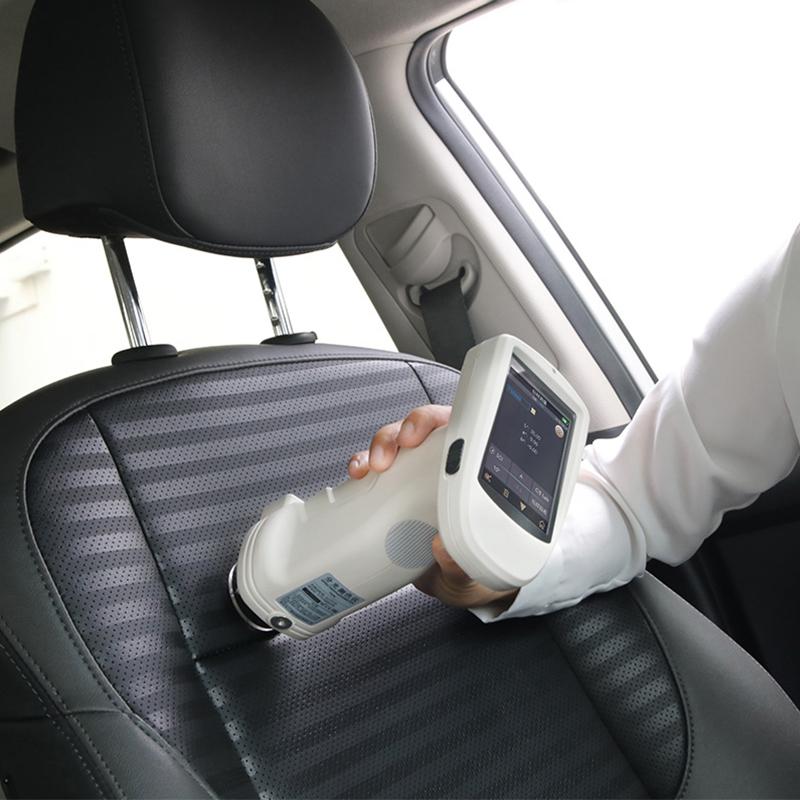

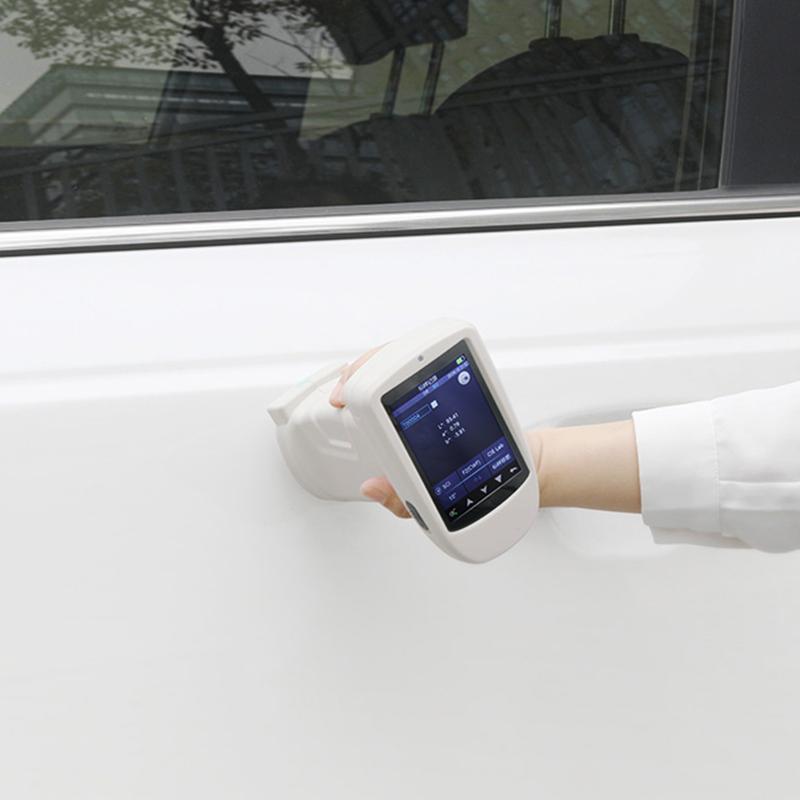

Plastic electronics, paints inks, Spinning & weaving garment printing, printing, ceramics, fluorescent sample measurement
Standards
CIE No.15、GB/T 3978、GB 2893、GB/T 18833、ISO7724-1、ASTM E1164、DIN5033 Teil7
Steps

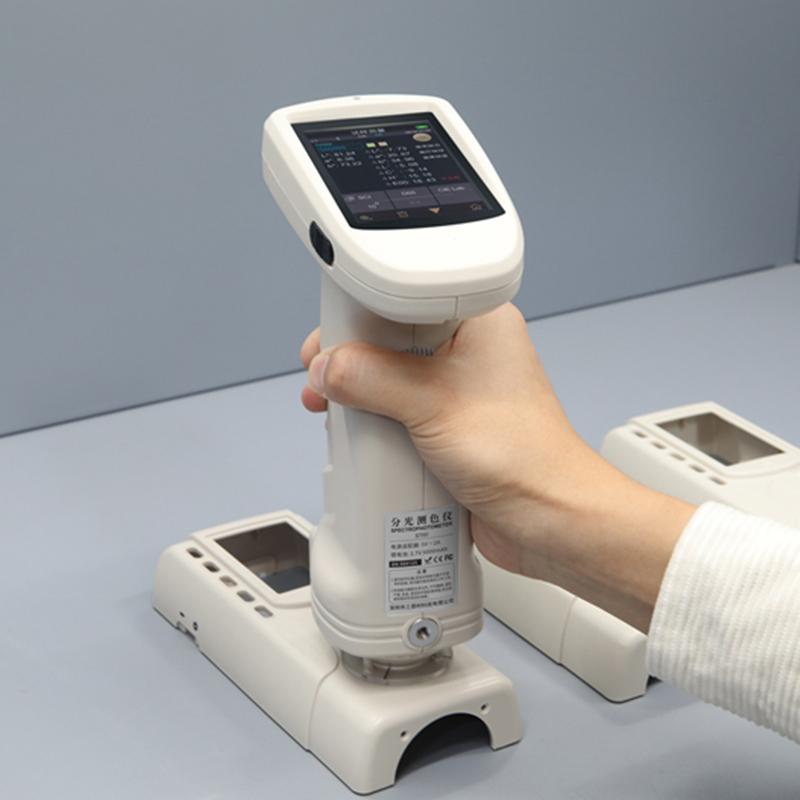

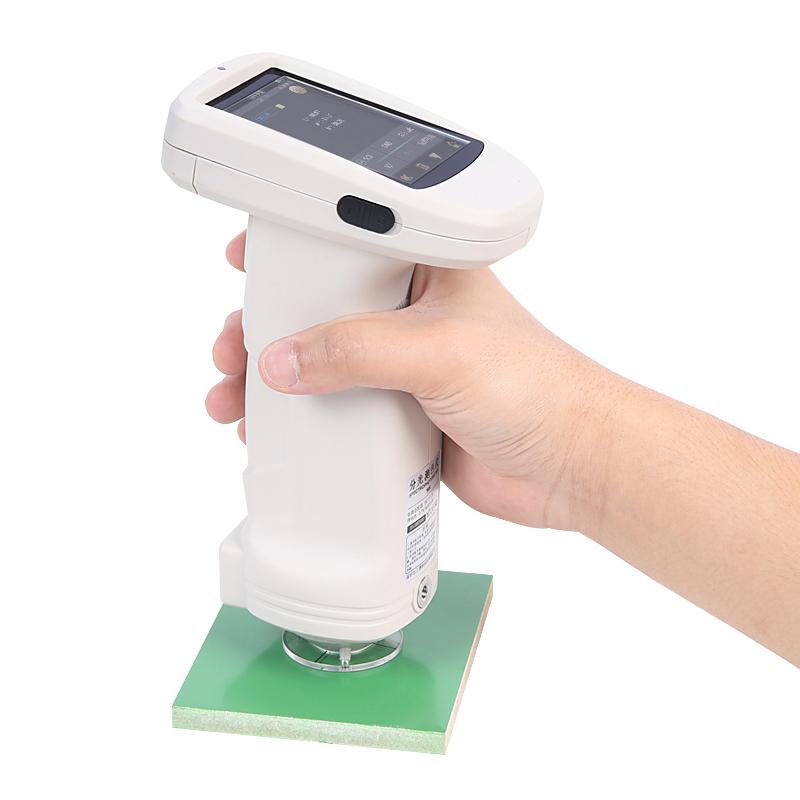

1. Preheat the calibration device; 2. Select the measurement aperture and mode; 3. Use the camera or stabilizer to locate the sample; 4. Perform a single or average measurement; 5. View the display results and store the data.
Notice
• Operating Ambient Temperature 0~ 40 ℃, Humidity 0~ 85% RH (no condensation), altitude below 2000m; • Storage Ambient Temperature -20~ 50 ℃, Humidity 0~ 85% RH (no condensation); • Avoid use under condensation conditions; • Some functions need to be realized by the host computer or APP; • Periodic calibration to ensure Measurement accuracy.
