Overview

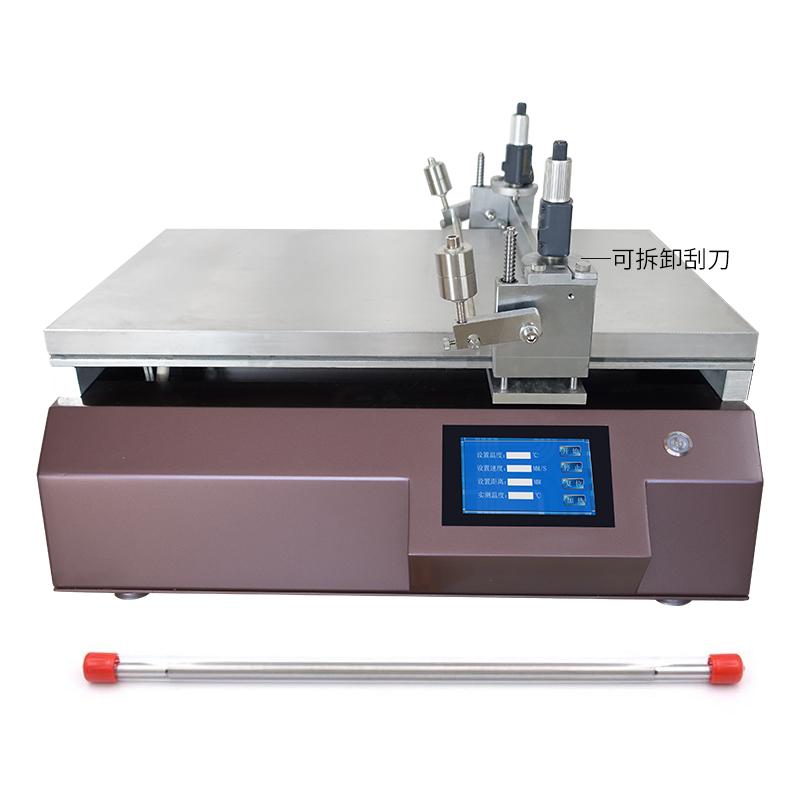

TBJ-X1-DJ4 Automatic Film Applicator is an experimental small Lab Film Applicator, using imported accessories, affordable, favored by multinational R & D institutions, universities and scientific research institutions at home and abroad. By controlling the speed and stable pressure, ensure the uniformity and smoothness of Spreader's gluing, solve the problem of artificial film inconsistency, and improve film reproducibility.
Features
1. Using imported accessories, cost-effective.
2. Blade Coating accuracy of +/- 0.003mm, thickness range of 0~ 10mm adjustable.
3. The coating speed is 5~ 180mm/s, and the customized low speed (< 5mm/s) is supported.
4. The effective coating area is 400 * 300mm, which can be customized.
5. Vacuum chuck system, size 400 * 300mm, aperture φ 1.2mm, hole spacing 20 * 20mm.
6. Blade Coating width 400mm, removable design, easy to clean and replace.
7. Speed control using infinitely variable speed, digital display.
8. Host power supply 220V 50Hz, compact (626 * 410 * 520mm), Net weight 65KG.
9. The coating table is made of aluminum alloy. Accessories are available, and custom functions such as jet system, UV solid inclusion device, and automatic inking system are supported.
Principle
Automatic Film Applicator controls the speed of the Spreader and the steady pressure applied to the drawdown blade to achieve accurate Spreader wet-film on different substrates. Blade Coating ensures uniform coating, reduces human operation differences, and improves film reproducibility.
Applications
Multinational enterprise R & D institutions, domestic and foreign universities, scientific research institutions
Steps
1. Prepare the substrate and place it on the Spreader stage.
2. Select the drawdown blade type and thickness settings as required.
3. Adjust Spreader speed and pressure parameters.
4. Start the device for Automatic Spreader.
5. Clean the drawdown blade and coating table after completion.
Notice
• Make sure the power supply of the device is 220V 50Hz before operation to avoid voltage mismatch.
• Spreader attention to drawdown blade accuracy and thickness settings to prevent uneven coating.
• Clean the removable drawdown blade in time after use to keep the equipment hygienic.
• Customized functions need to be confirmed in advance to ensure compatibility.
• Vacuum chuck system check the aperture and hole spacing to avoid clogging.
