Overview

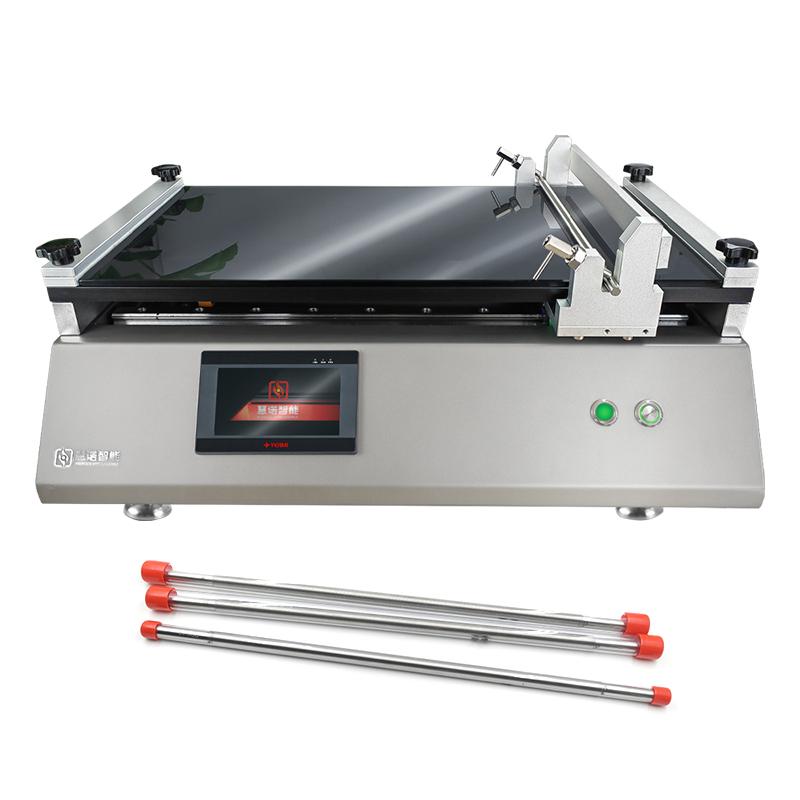

Automatic Film Applicator is a device for intermediate coating film in laboratories. It replaces manual film and automatically films to improve film accuracy and efficiency. This Film Applicator is a basic bar Coater. It adopts a new bar Installation method with speed control and application length adjustment functions. It is suitable for High Accuracy automatic film in laboratories and Moulding proofing in laboratories such as university research institutes, New material, and lithium batteries.
Features
1. Glass countertop is 3c certified national standard genuine all tempered Glass plate, gold crystal original sheet, heat resistance 600 ℃, scratch resistance
2. High Accuracy film applicator, original imported bar film uniform accuracy
3. Aluminum alloy hard oxidation surface preparation Spreader baseplate, wear-resistant flat, with Smoothness accuracy calibrated certificate
4. Touchscreen control panel, easy to operate
5. Free adjustment of application length and Spreader speed
Principle
The Working Principle of Experimental Automatic Film Applicator is to uniformly Spreader the sample on the substrate to form the desired film by controlling the Spreader head and Spreader parameters.
Applications
Coatings, inks, paints, Stocks, Lithium batteries, Pressure sensitive adhesives, Polymer materials, pharmaceuticals and other film samples
Steps
1. Prepare samples and substrates
2. Set application length and Spreader speed parameters
3. Fix the substrate to the coating table
4. Start Film Applicator for Auto Spreader
5. Remove the sample after finishing the film
Notice
• Power supply voltage matches host requirements before operation
• The material of the coating table needs to be confirmed according to the needs, such as the specified material to communicate with the customer service
• Coating speed and area can be customized according to requirements
• Optional features such as drawdown blade, heating, Vacuum chuck require additional configuration
• Check whether the bar is firmly installed before use
