PUSHEN BY-III (P) Pendulum Hardness Tester film resilience viscoelasticity Tester

Name: PUSHEN BY-III (P) Pendulum Hardness Tester film resilience viscoelasticity Tester
Brand: Pushen
SKU: NB045155
Price: 1634.0 USD
Availability: InStock

$ 1634.00Ex works

Using 500g swing Rod mass and 8mm steel ball diaMeter, automatic counting function can accurately measure coating surface Hardness, swing cycle of 1 second to achieve efficient testing.

Model

Get Quote

Category : Persoz / König Pendulum Hardness Tester

Brand : Pushen

SKU : NB045155

Service :The delivery and service By NBCLab.Com

Overview

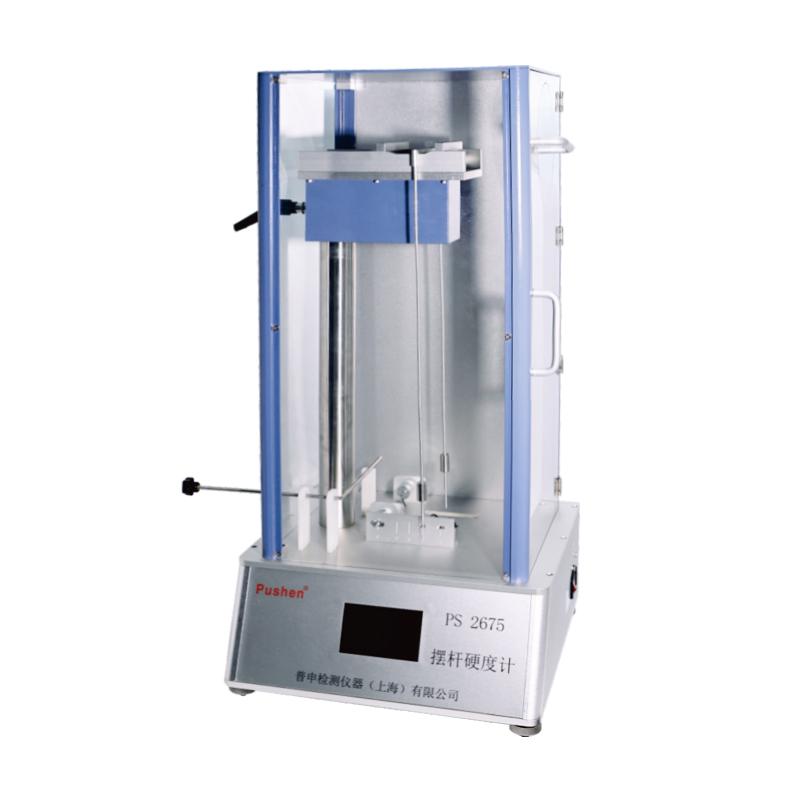

PUSHEN BY-III (P) Pendulum hardness tester is an instrument used to measure film resilience and viscoelasticity. The film resilience is determined by placing the film under the swing rod to measure the swing time. The principle is to use two stainless steel balls to support the drying coating and swing at a certain period. The softer the coating surface, the faster the swing of the swing rod will decay.

Features

1. Using Persoz swing bar type 2. The swing rod mass is 500g 3. The diameter of the steel ball is 8mm. 4. The initial swing angle is 12 ° 5. The end point swing angle is 4 ° 6. The swing period is 1s 7. Glass swing time is 430 +/- 15s 8. Equipped with automatic counting function

Principle

Pendulum hardness tester is supported on the coating surface after drying by two stainless steel balls, so that the swing rod swings at a fixed period. Hardness of coating surface affects the attenuation speed of swing: the softer the surface, the faster the swing attenuation; the resilience characteristics of the film can be determined by measuring the swing time of the swing rod.

Applications

Film resilience, film viscoelasticity

Standards

Not mentioned

Steps

Not mentioned

Notice

Not mentioned

pendulum needle
Persoz pendulum
Swing rod weight
500g
Ball diameter
8mm
Initial swing angle
12°
terminal swing angle
4°
swing period
1s
Glass swing time
430±15s
counting function
automatic
Dimension
400*400*780mm
instrument weight
500*460*950mm
Shipment weight
40kg

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
