Overview

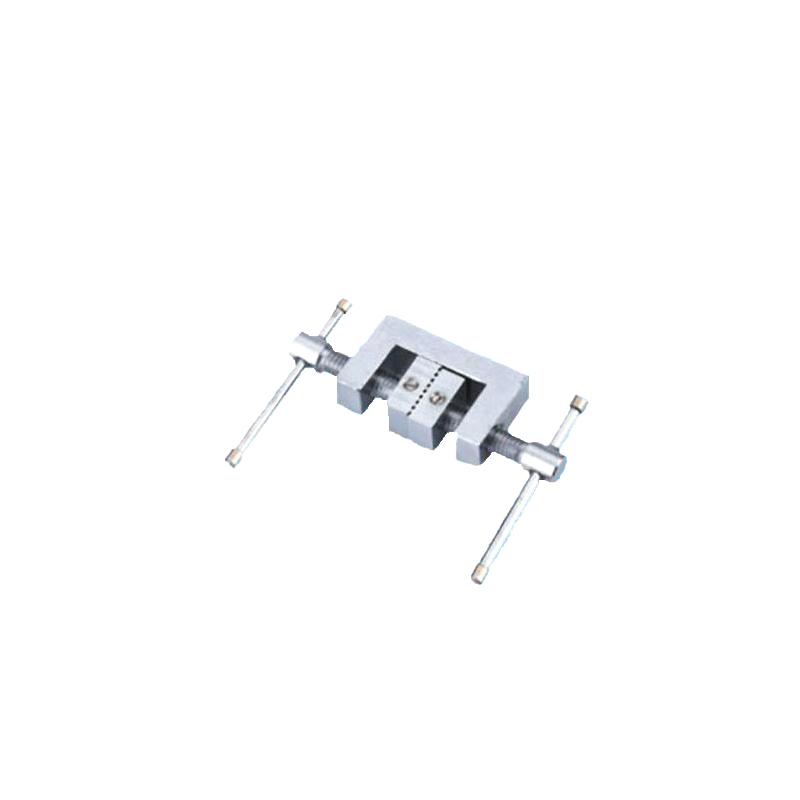

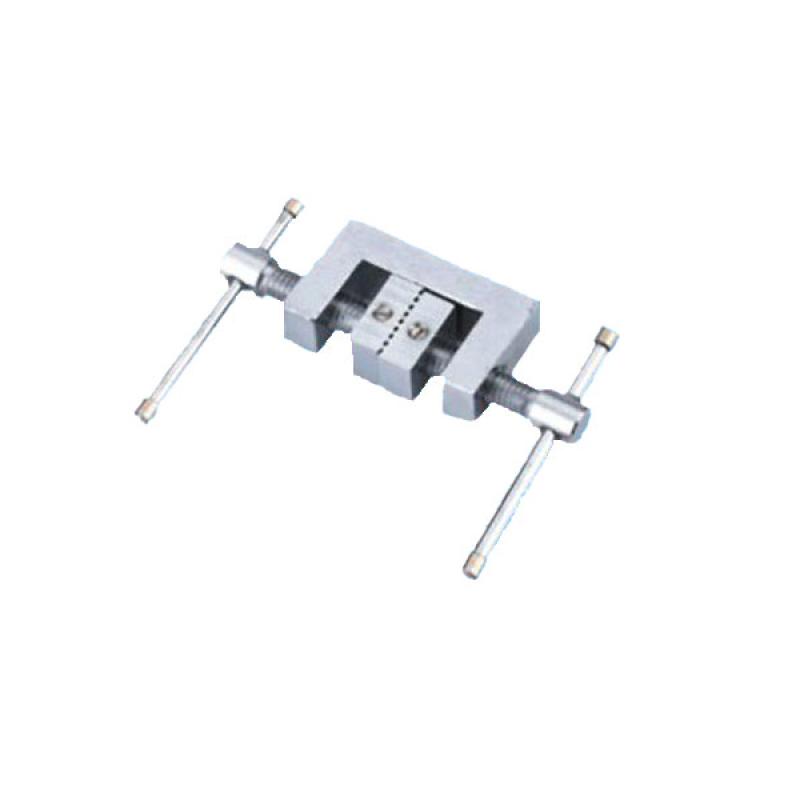

The HJJ series Force Gauge fixture is a fixture product produced by HBO for supporting the Force Gauge test bench test. When the Force Gauge is assembled on the test stand for tensile testing, the fixture needs to be used to assist the test. Different models of Force Gauge fixtures have different application ranges. The regular HJJ series includes fifteen different models (HJJ-01~ HJJ-15), which are suitable for different fields such as tape, leather, clothing, rubber, electrical components, paper, etc.
Features
1. Designed for Force Gauge Test Bench
2. Serial design, providing a variety of model options
3. Suitable for a variety of material testing requirements
Principle
The fixture is used in conjunction with the Force Gauge test bench to provide a stable clamping function during tensile testing, ensuring that the test sample remains in a fixed position during the stress process, thus obtaining accurate push-pull and destructive force test data.
Applications
Tape, leather, clothing, rubber, electrical components, paper
Standards
No relevant information
Steps
1. Fit the fixture to the Force Gauge test bench
2. Select the appropriate fixture model according to the test sample
3. Secure the test sample in the fixture
4. Start Force Gauge for Testing
5. Record test data
Notice
• Please select the appropriate fixture model according to the test material
• Ensure that the fixture is firmly and reliably installed
• Measured value must not exceed 500N
• Regularly check the abrasion of the fixture
• Only for the matching Force Gauge test bench
