PUSHEN TQC Digital display Manual Cupping Tester Spherical head diaMeter 20mm Jacking height 10mm

Name: PUSHEN TQC Digital display Manual Cupping Tester Spherical head diaMeter 20mm Jacking height 10mm
Brand: Pushen
SKU: NB045160
Price: 1427.0 USD
Availability: InStock

$ 1427.00Ex works

Side rocker lift design to ensure smooth operation, the lifting process can be retracted and continue; with 0.01mm height display indexing, accuracy of 0.05mm, no need for each boot zero, no conductive requirements for the test plate.

Model

Get Quote

Category : Cupping Tester

Brand : Pushen

SKU : NB045160

Service :The delivery and service By NBCLab.Com

Overview

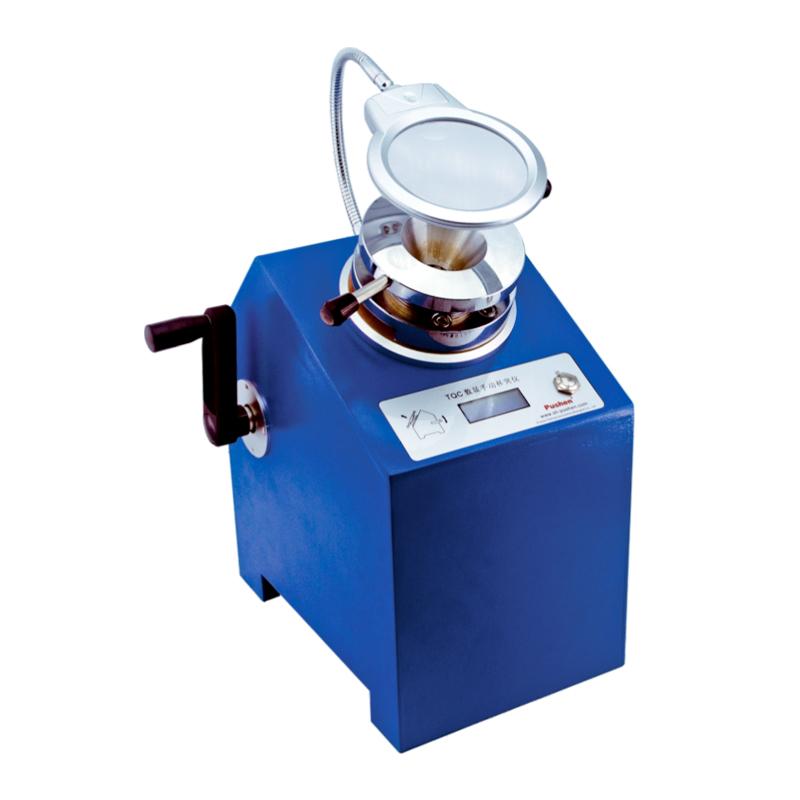

The PUSHEN TQC digital display manual Cupping tester is an instrument used to test the cracking or detachment phenomenon of the test plate under the deformation of the hemispherical protrusion. The operation surface adopts an inclined layout for easy observation, the side rocker lifts the spherical head to ensure smooth operation, and the LCD screen displays the cup protrusion value and the shaking value at the same time. There is no need to zero when it is turned on. It supports stepping back and continuing to lift during the jacking process.

Features

1. The operation surface is tilted for easy observation of the test process 2. The side rocker lifts the spherical head, and the operation is more stable 3. LCD screen display, showing the cupping value and shaking value at the same time 4. It can be used when turned on, no need to zero each time it is turned on. 5. During the lifting process, you can step back and continue to lift 6. No conductive requirements for the test plate

Principle

The fixing ring with holes in the test plate is pressed from top to top, and the spherical head is pressed from bottom to top at a slow speed, so that the test plate forms a hemispherical protrusion deformation in the middle of the fixing ring. Visually observe whether the raised test plate cracks or detaches from the substrate through magnifying glass, and use the height of the protrusion at the initial cracking or detachment as an evaluation index.

Standards

GB/T9753、ISO1520

Steps

1. Press the test plate with an open fixing ring from above 2. Raise and lower the spherical head at a slow speed through the side rocker 3. Observe the cupping value and shaking value displayed on the LCD screen 4. Visually observe the raised deformation of the test plate through magnifying glass 5. Record the height of the bump when cracking or disengagement occurs initially

input Voltage
220V AC 50Hz
Head steel ball diameter
20mm
Maximum jacking height
10mm
height display digits
00.00mm
Height display indexing
0.01mm
Height display accuracy
0.05mm
Shaker jacking speed
0.20mm/r
Recommended test board Size
320*350*460mm
weight
40Kg
