Overview

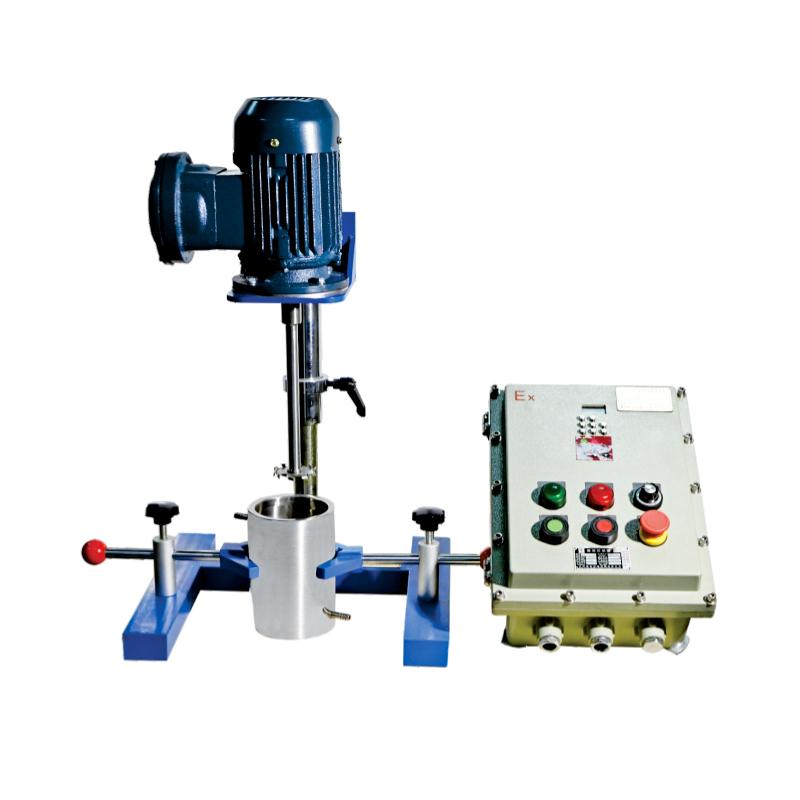

The PUSHEN JSF-550B Mixing Mill Disperser (Explosion Proof) is a multifunctional laboratory equipment suitable for dispersion, grinding and other processes. The equipment is mainly used for the development and production testing of Coatings and inks. It can quickly and accurately measure the particle size of materials, ensure reliable formulation and consistent Repeatability. The maximum mixing capacity is 2 liters, which is suitable for most laboratory environments.
Features
1. Explosion-proof design to improve safety
2. Multifunctional integration, support for dispersion, grinding and mixing
3. Rotation speed of spindle adjustable range 0-3000rpm, adapt to different process requirements
4. Manual Lifting Mode, Lifting Travel 280mm, Flexible Operation
5. Standard 1.2L Mixing Tank and various dispersion disc sizes (50mm, 60mm), convenient for experimental preparation
6. Compact Dimension 450mm * 420mm * 590mm, saving space
7. Motor Power 550W, providing stable power output
Principle
The device drives the spindle swirl/spin through a motor to drive the dispersion disc for high-speed stirring, dispersing and grinding in the Mixing Tank. The user can adjust the spindle Rotation speed (0-3000rpm), and control the dispersion disc position through a manual lifting mechanism to achieve rapid mixing and refinement of material particles for accurate particle size measurement and formulation conformity.
Applications
Paints, varnishes, Printing inks, cosmetics
Steps
1. Prepare raw materials and standard drums
2. Install the appropriate dispersion disc (50mm or 60mm)
3. Add the raw material to the Mixing Tank, ensuring that the maximum mixing amount does not exceed 2 liters
4. Adjust the manual lifting mechanism and set the dispersion disc position
5. Start the device and adjust the spindle Rotation speed to the desired value (0-3000rpm)
6. Perform dispersion, grinding or mixing operations
7. Turn off the equipment after completion, clean and maintain it
Notice
• Check whether the input voltage is 220V 50Hz before use to ensure that the power supply matches
• Do not exceed the maximum mixing amount of 2 liters during operation to avoid overloading the equipment
• Regularly check the dispersion disc and lifting mechanism to ensure no abrasion or loosening
• Use in explosion-proof environment, pay attention to safety measures
• Disconnect power when cleaning equipment to prevent the risk of electric shock
• The shipment weight is 63Kg, so be careful to avoid damage when handling
