Overview

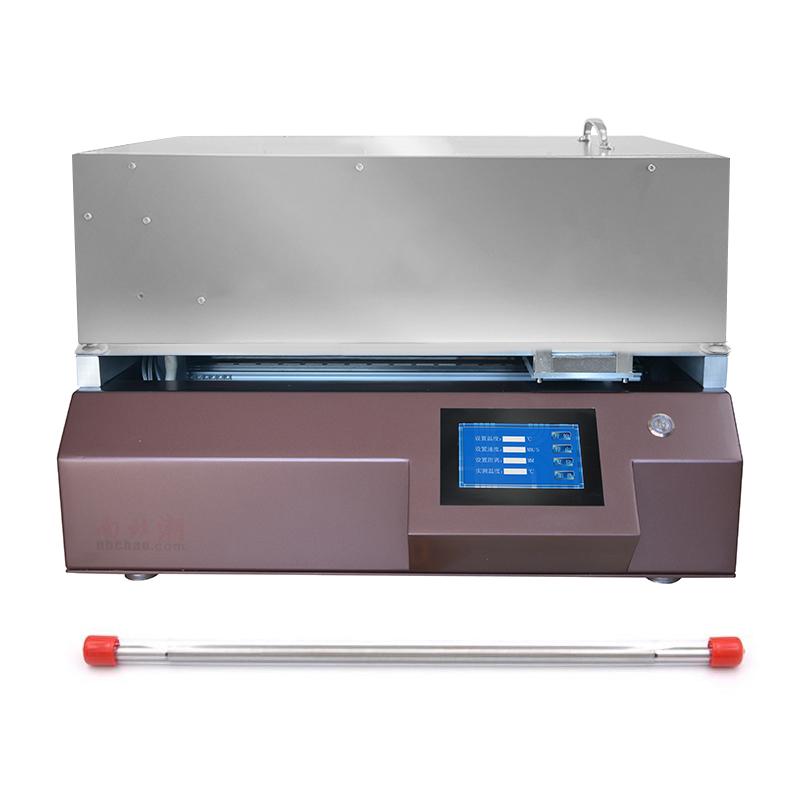

TBJ-X3-DJ15 Automatic Film Applicator is a multi-functional laboratory Spreader equipment in China. It adopts imported accessories and has a good price. It is favored by multinational R & D institutions and university R & D institutions. The equipment ensures the uniformity and smoothness of Spreader coating by precisely controlling the speed and stable pressure of Spreader, solves the problem of artificial film inconsistency, and significantly improves film reproducibility. It has Vacuum chuck and upper and lower double heating functions, supports bar plus Blade Coating method, and the heating Temperature range is RT + to 180 ° C. It is suitable for precise wet-film Spreaders of different substrates.
Features
1. Using imported accessories, reliable performance and low price;
2. Multifunctional Coater, integrated Vacuum chuck and upper and lower double heating function;
3. Flexible coating method, support bar and drawdown blade combination, drawdown blade removable, easy to clean and replace;
4. Precise control of Spreader speed and pressure to ensure film uniformity and reproducibility;
5. Wide heating Temperature range, from RT + to 180 ℃, suitable for a variety of application needs;
6. Optional accessories are rich, such as leakage tank, substrate fixing fixture, etc., support customized functions;
7. Adjustable coating speed, range 5~ 180mm/s, support low-speed customization;
8. The coating table is made of aluminum alloy, and the structure is stable and durable.
Principle
Automatic Film Applicator achieves accurate Spreader by controlling the speed of the Spreader and the steady pressure applied to the film applicator. The device uses a combination of bar and drawdown blade. On the basis of the Vacuum chuck fixed substrate, the temperature is adjusted by the upper and lower dual heating system to ensure the uniform distribution of the glue during the Spreader process. The stepless variable speed system allows the operator to flexibly adjust the coating speed to form a consistent wet-film on different substrates, improving the reproducibility and conformity of the film.
Applications
Multinational enterprise R & D institutions, domestic and foreign universities, scientific research institutions, laboratories Spreader application
Steps
1. Prepare the substrate and place it on the Spreader table, using Vacuum chuck to fix;
2. Install bars or drawdown blades according to requirements to ensure that the removable parts are in place correctly;
3. Set coating speed and heating temperature parameters;
4. Start the device and perform automatic Spreader operation;
5. After the Spreader is completed, disassemble and clean the drawdown blade and other components.
Notice
• Make sure the power supply of the equipment is 220V 50Hz before operation to avoid voltage mismatch;
• Spreader process pay attention to control the speed and pressure to prevent uneven film;
• Regular cleaning and replacement of removable drawdown blades to maintain equipment hygiene;
• When using the heating function, pay attention to Temperature Uniformity to prevent overheating damage;
• Accessories, such as silicone pads, can be selected according to the thickness of the substrate to ensure Spreader mass;
• Customized functions need to be confirmed in advance, such as jet systems or UV devices.
