Overview

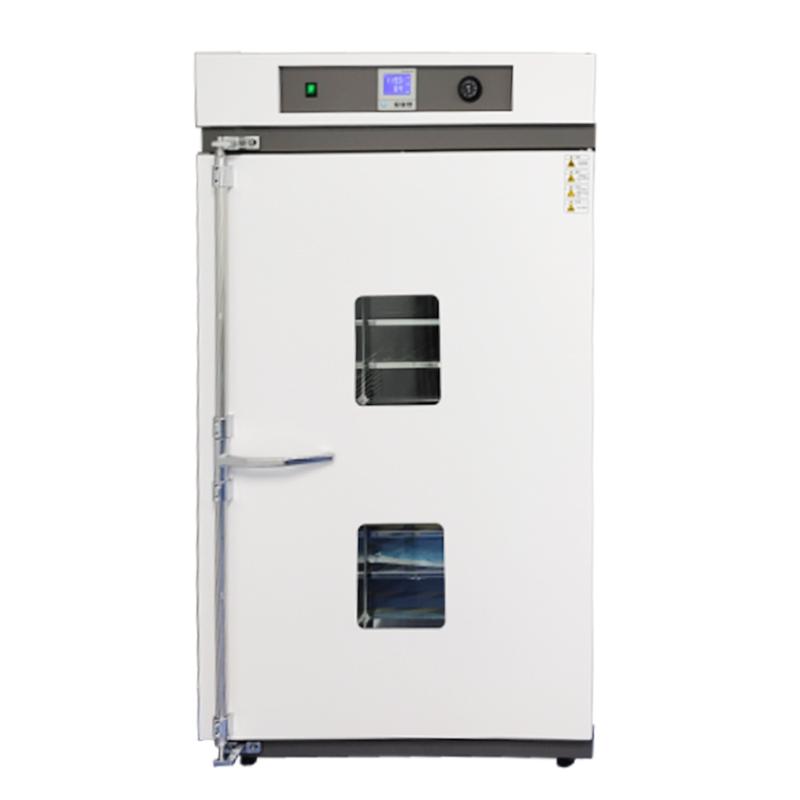

BGL series blast drying oven has the characteristics of excellent design, novel shape, reliable process, accurate temperature control, stable performance, easy maintenance and convenient operation. It is suitable for drying, baking, wax melting and heat treatment in laboratories of industrial and mining enterprises, scientific research institutes and other units.
Features
1. Novel vertical design, the box shell is made of high-quality steel plate, the surface is treated by electrostatic spraying process, beautiful shape, anti-corrosion and durable
2. The four corners are circular arc transition, Shelf spacing is adjustable, air duct side plate and bottom heating cover quick release structure, easy to clean
3. Turbine centrifugal fan blade unique bottom drum and bottom heating reasonable cooperation, vertical double air duct vertical hot air circulation design, so that the indoor temperature distribution more uniform
4. Switch-on fan can be turned on or off according to the different experimental requirements of users, which not only ensures the Temperature uniformity in the working room, but also does not blow off powder foam items
5. Timing and over-temperature alarm function, with parameter memory call reply function protected by power outage and dead state data loss
6. Optional 485 interface, which can be connected to a computer and can remotely monitor the changing status of temperature parameters
7. The box door with a new structure has good thermal insulation effect, and the middle is equipped with a double-decked tempered Glass large viewing window. It is equipped with a lock-type elastic adjustment door lock and a high-temperature silicone sealing strip to ensure good sealing and prevent heat loss
Principle
Adopting turbine centrifugal fan blade unique bottom drum and bottom heating reasonable coordination, vertical double air duct vertical hot air circulation design, so that the indoor temperature distribution more uniform. Through the switch fan control, according to the experimental requirements to adjust the air volume, Temperature uniformity.
Applications
Industrial and mining enterprises, scientific research institutes laboratory drying, baking, wax, heat treatment
Steps
1. Power supply voltage 380V/50HZ
2. Temperature range RT + 10-300 ℃
3. Adjusting Timer Range 1-9999min
4. Turn on or off the fan as needed
5. Place items on the shelf, each shelf load does not exceed 30kg
6. Start the equipment for drying, baking and other operations
Notice
• Ambient Temperature should be kept within the range of + 5-40 ℃
• shelf load shall not exceed 30kg/block
• Check the sealing of the box door before use to ensure that the high temperature silicone sealing strip is intact
• Regularly clean the side plate and bottom heating cover of the air duct
• Pay attention to the over-temperature alarm function to avoid excessive temperature
• Remote monitoring requires an optional 485 interface and connection to a computer
