Overview

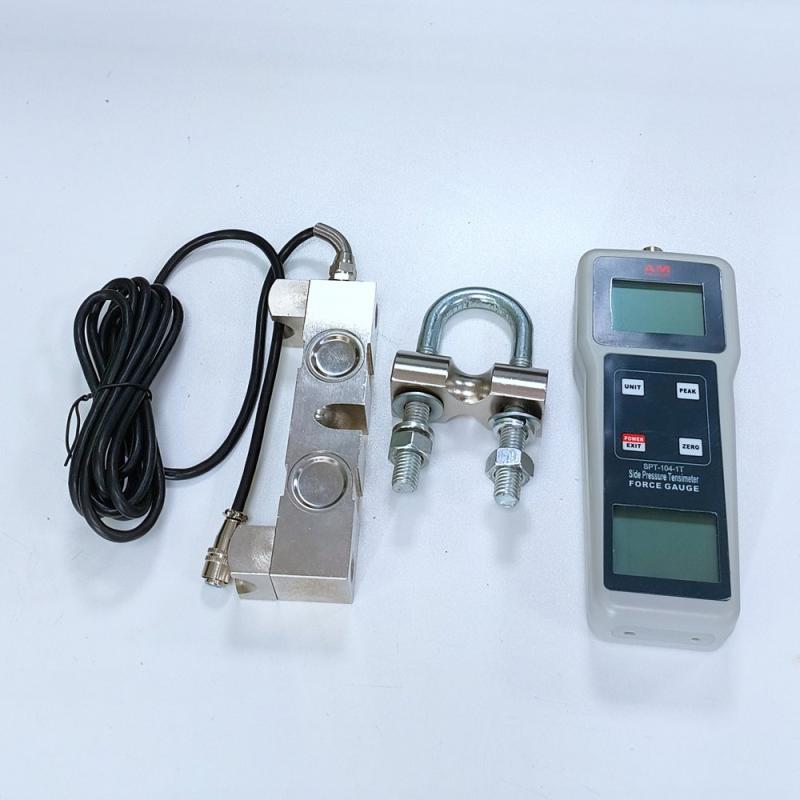

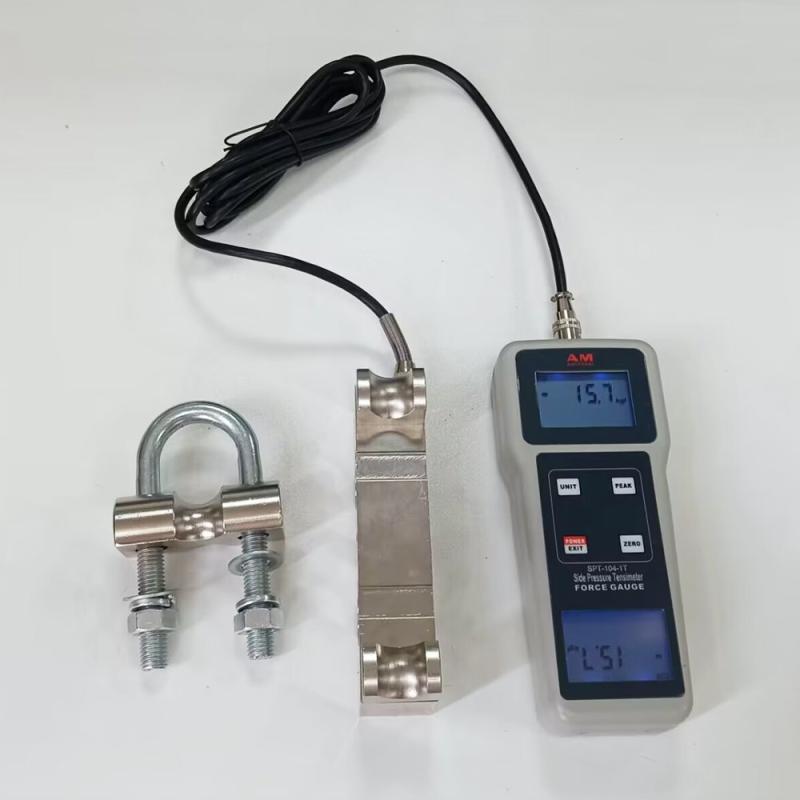

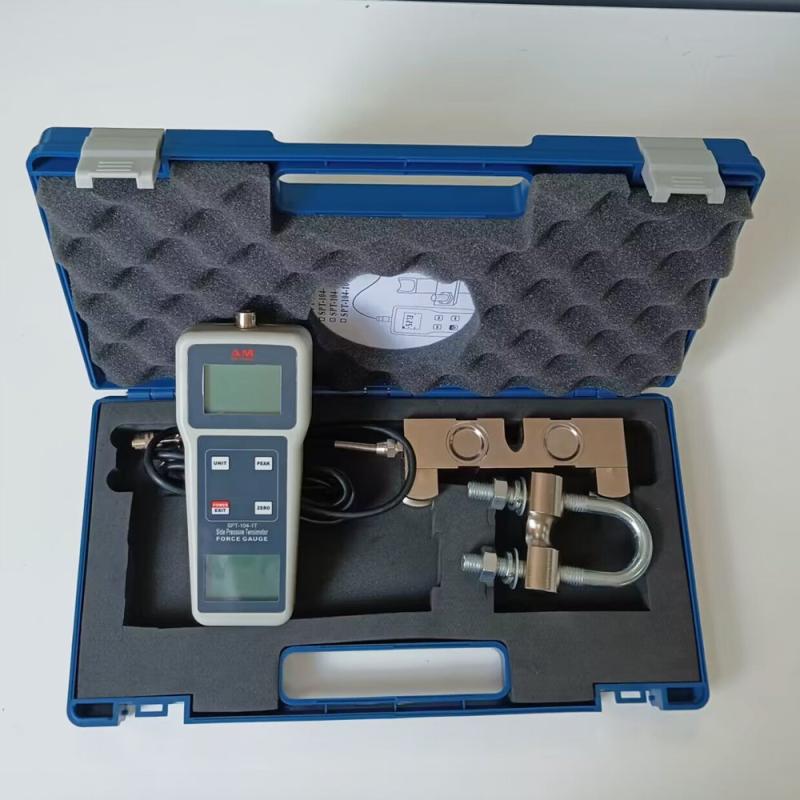

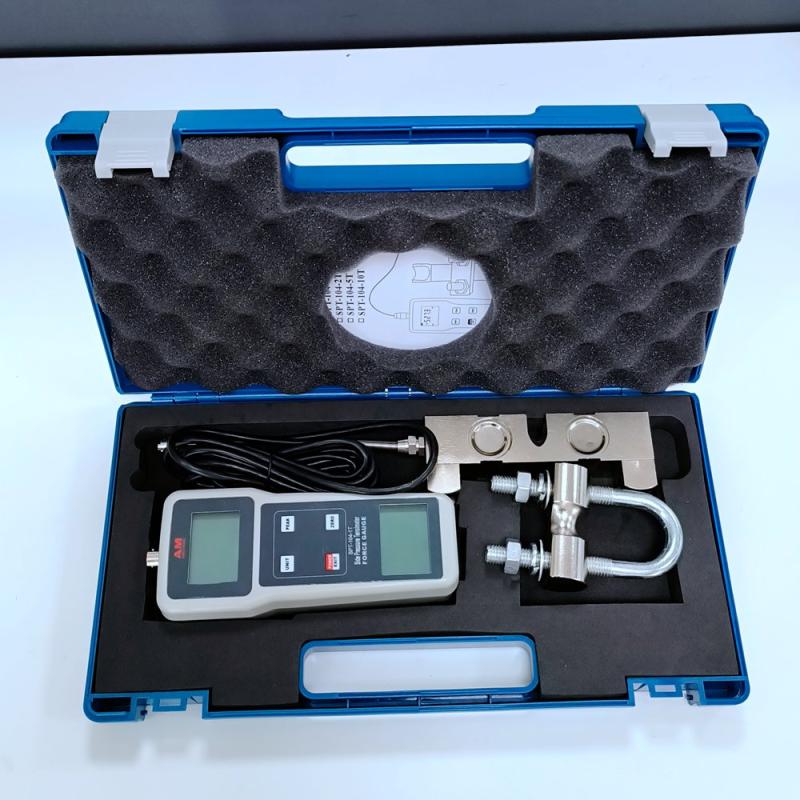

The side tension tester is a special instrument of AMITTARI brand SPT-104-500K model, which is used for the measurement of the tension of wind towers, signal towers, power transmission systems and other ropes. The product has the advantages of easy operation and easy portability, and provides a variety of test modes to meet different test needs.
Features
1. High Accuracy and high resolution, digital display ignores poor
2. Support N (newton), kg (kg), lb (pound), g (gram) four measurement unit selection and mutual conversion
3. Peak hold function, keep peak display until manually cleared
4. Can use alkaline battery or 5V DC power supply

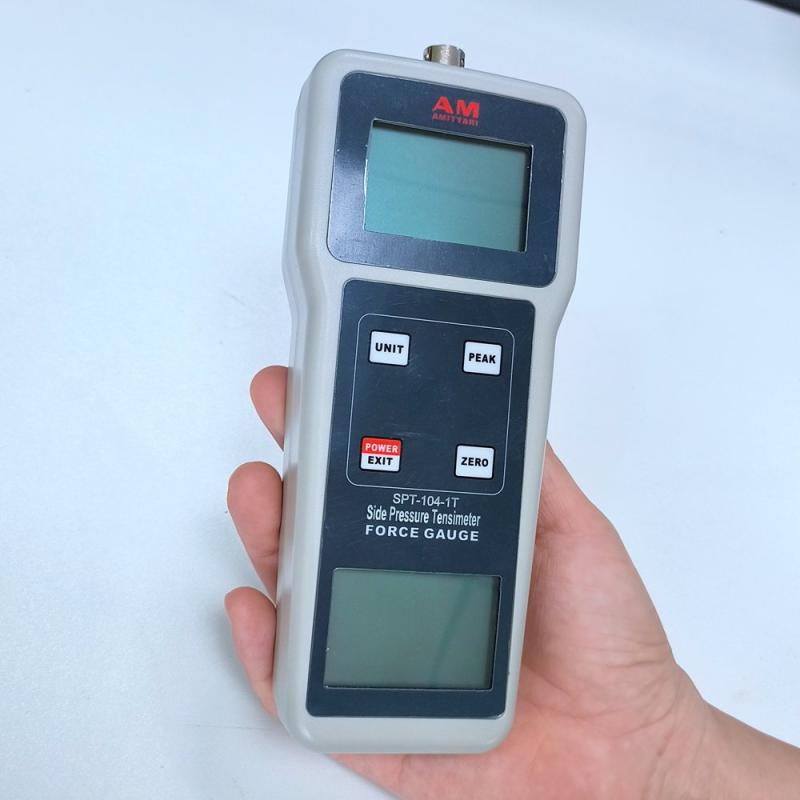

5. Four-bit large LCD forward and reverse dual display
6. Blue backlit display
7.10 minutes automatic shutdown or manual shutdown function
8. Overload alarm function (buzzer alarm when it exceeds 110% F.s)
Principle
Sensor measures the tension of the rope, converts the force value into an electrical signal and processes it by the processor, and displays the measurement results in digital form on the LCD screen. The instrument supports the peak hold function, which can record and maintain the maximum force value in the measurement process.
Applications
Wind towers, signal transmission towers, power transmission systems
Steps
1. Install 2 AA batteries or connect 5V DC power supply
2. Select the desired force unit (kgf, N, Lbf)
3. Install the instrument correctly on the rope to be tested
4. Start the measurement and observe the force reading on the display
5. To maintain peak values, use the peak hold function
6. After the measurement is completed, manually clear or wait for 10 minutes to automatically shut down
Notice
• Operating temperature range is 0 ℃~ 40 ℃, do not use in environments beyond this range
• Operating humidity should be less than 80%
• Working environment should be free of source and corrosion medium
• The allowable load is 150% F.s, and a beep will sound when it exceeds 110% F.s
• Do not exceed the maximum Measurement range of the instrument
• Please check the power status before use to ensure that the power supply is normal
• It is recommended to remove the battery when not in use for a long time
