China TBJ-B3-DJ1 Automatic Film Applicator heating type removable drawdown blade Lab Film Applicator

Name: China TBJ-B3-DJ1 Automatic Film Applicator heating type removable drawdown blade Lab Film Applicator
Brand: zy
SKU: NB045225
Price: 5459.0 USD
Availability: PreOrder

$ 5459.00Ex works

Spreader accuracy of +/- 0.003mm, rate 5~ 180mm/s adjustable, heating temperature to 200 ℃, using stepless speed and removable drawdown blade design, improve film repRoducibility and operation convenience.

Model

TBJ-B3-DJ1

Get Quote

Category : Automatic Film Applicator

Brand : zy

SKU : NB045225

Service :The delivery and service By NBCLab.Com

Overview

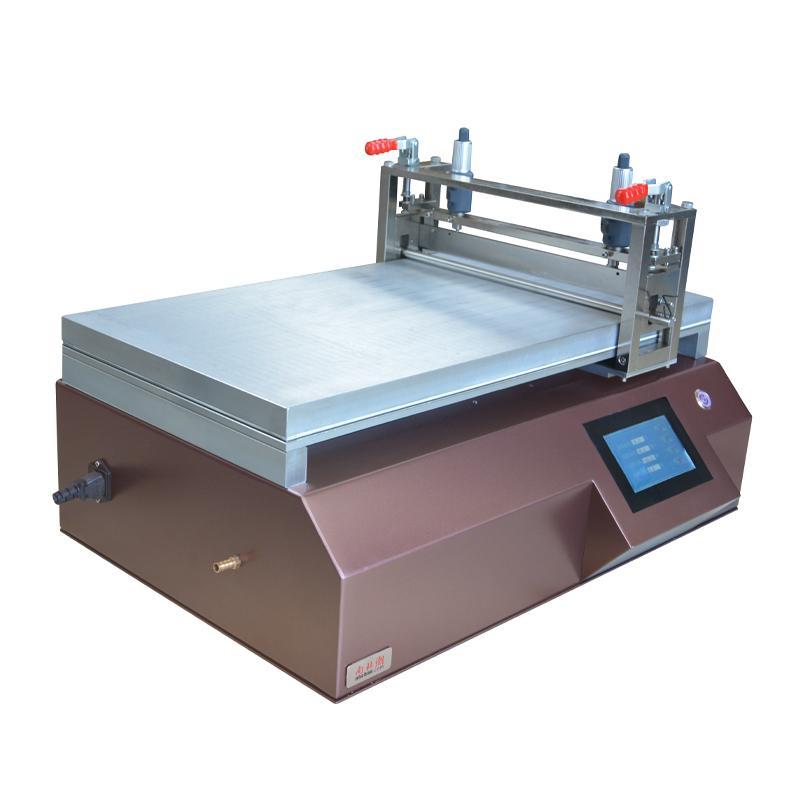

TBJ-B3-DJ1 Automatic Film Applicator is a heating type detachable drawdown blade Lab Film Applicator, all imported accessories, low price, favored by multinational R & D institutions, domestic and foreign universities and scientific research institutions. The equipment ensures the uniformity and smoothness of Spreader coating by controlling speed and stable pressure, solves the problem of inconsistent artificial film, and significantly improves the reproducibility of film.

Features

1. Using imported accessories, the price is good and cheap 2. Control Speed and Stable Pressure to Ensure Spreader Uniformity and Stability 3. Blade Coating accuracy up to +/- 0.003mm 4. The coating speed range is 5~ 180mm/s (< 5mm/s can be customized) 5. Heating Temperature range RT +~ 200 ℃, Temperature Uniformity +/- 3 ℃ 6. Infinitely variable speed control 7. Optional Accessories and Customization

Principle

The Automatic Film Applicator controls the speed of the Spreader and the stable pressure applied to the film applicator to achieve accurate wet-film Spreader on different substrates. The device solves the problem of coating differences caused by inconsistent speed and pressure of artificial films, ensuring the uniformity and smoothness of the Spreader coating.

Applications

Multinational enterprise R & D institutions, domestic and foreign universities, scientific research institutions

Standards

Not mentioned

Steps

Not mentioned

Notice

Not mentioned

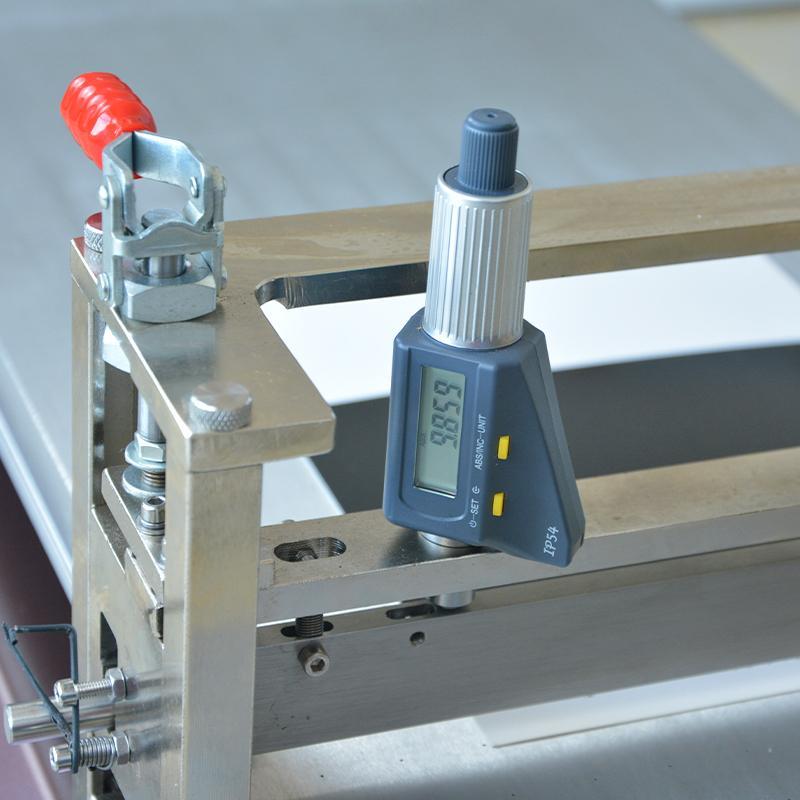

Blade Coating accuracy
±0.003mm
Blade Coating Thickness Range
0~10mm
coating speed
5~ 180mm/s (< 5mm/s can be customized)
Coating Size
500 * 800Mm (can be customized)
Spreader time

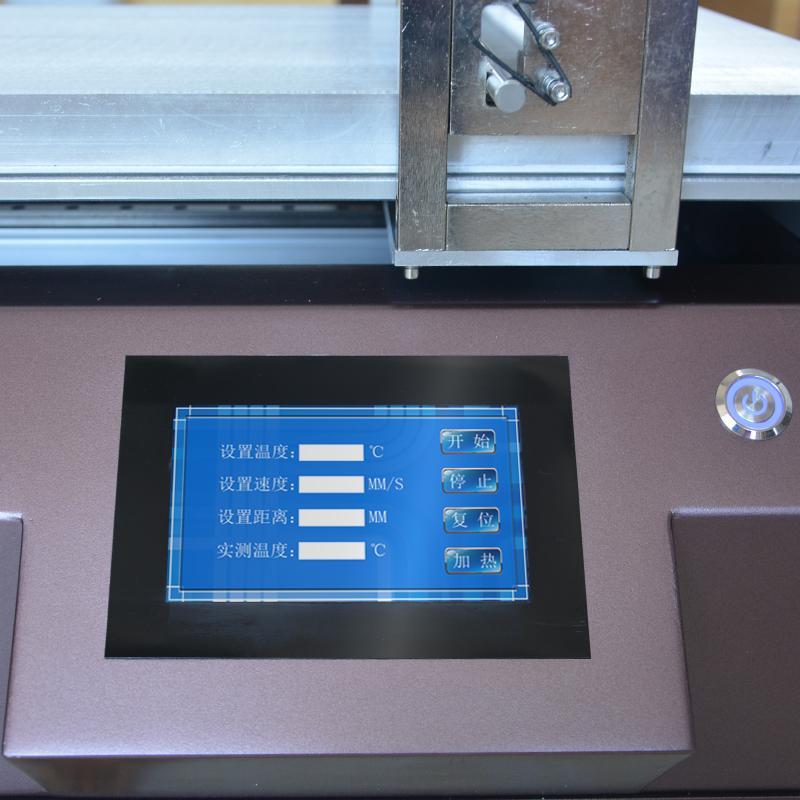

Digital display, different speed, time accuracy control
Heating Temperature Range
RT+~200℃
Temperature Uniformity
±3℃

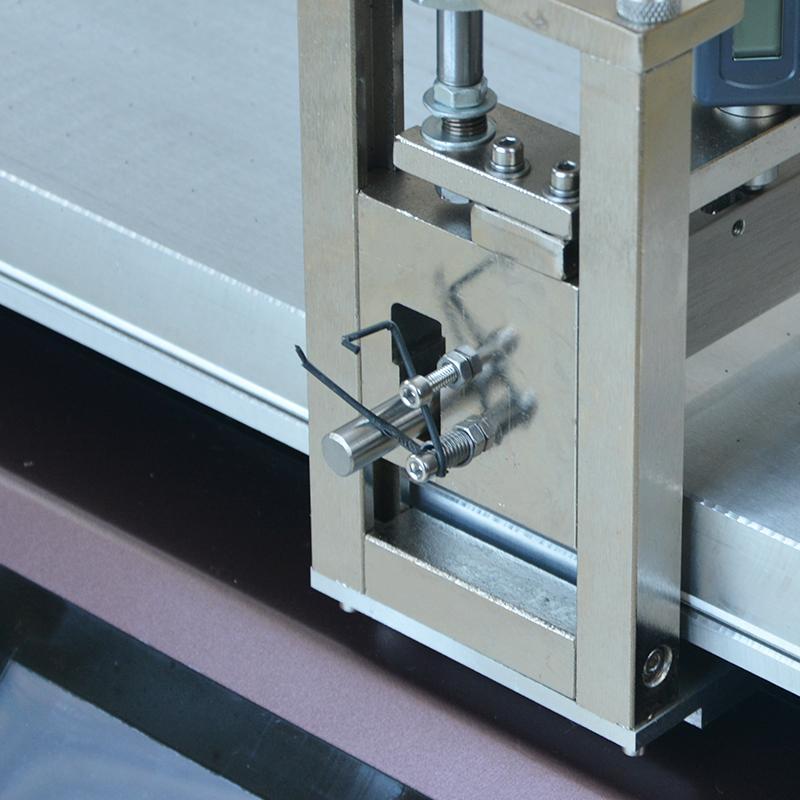

Drawdown blade length
500mm
Host power supply
220V 50HZ 1700W
speed control
Infinitely variable speed
Coating table material
aluminum alloy
Optional Accessories
Leakage tank, substrate fixture, trimming horizontal height support foot device, Glass plate, silicone pad and weight (for applications with uneven thickness of Spreader substrate), application width control baffle
customizable function
Jet system device, UV solid inclusion device, automatic inking system
coating method
Blade Coating
