Overview

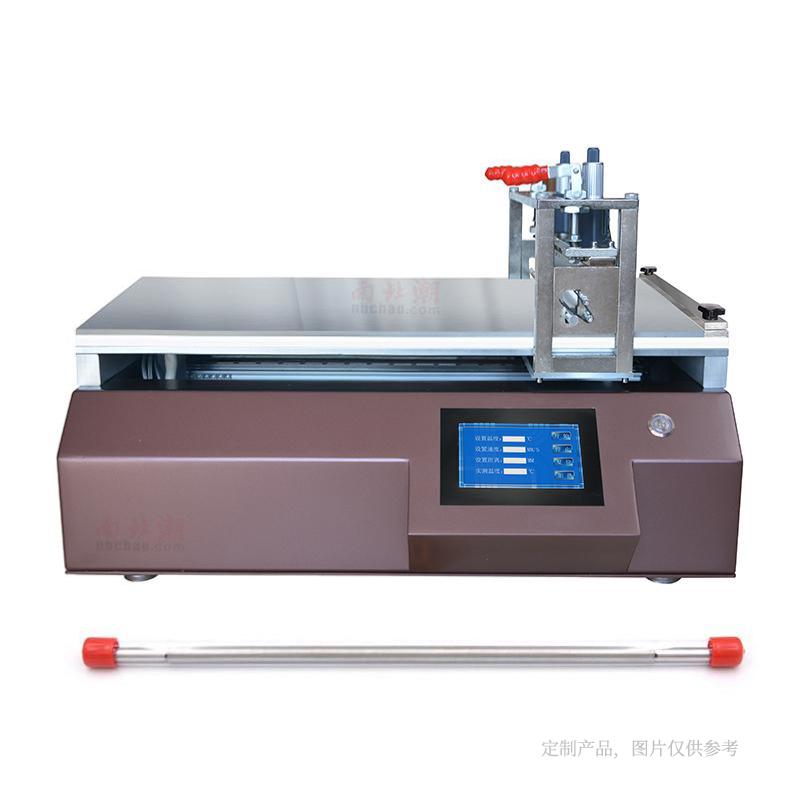

NBC-X2-DJ7 Automatic Film Applicator adopts imported accessories, which are cheap and favored by multinational R & D institutions, universities and scientific research institutions at home and abroad. The glue application effect of Spreader is guaranteed by controlling the speed and stable pressure to ensure uniformity and smoothness. The equipment is specially designed for Spreader accurate wet-film on different substrates, which significantly improves the film reproducibility and solves the problem of artificial Spreader inconsistency.
Features
1. Using imported accessories, cost-effective
2. Control speed and pressure to ensure uniform and smooth Spreader
3. Improve film reproducibility and reduce artificial differences
4. Optional accessories are rich, support customization function
5. Spreader accuracy, wide thickness range
Principle
Accurate Spreader is achieved by controlling the speed of the Spreader and the steady pressure applied to the film applicator. The combination of bar and drawdown blade ensures uniform wet film thickness and reduces coating inconsistencies caused by human factors.
Applications
Multinational enterprise R & D institutions, domestic and foreign universities, scientific research institutions
Steps
1. Prepare the Spreader substrate and place it on the Spreader stage
2. Select coating rod specifications and set Spreader thickness according to requirements
3. Adjust Spreader Speed to Required Range
4. Start the Device for Auto Spreader
5. Check film uniformity after completion
Notice
• Ensure even thickness of Spreader substrate, use silicone pad and weight adjustment if necessary
• The adhesive viscosity should be within the range of 4000-8000cp
• Check whether the Vacuum chuck system is working properly before use
• Regular maintenance of coating rods and drawdown blades to maintain accuracy
• Pay attention to safety during operation and avoid electric shock
