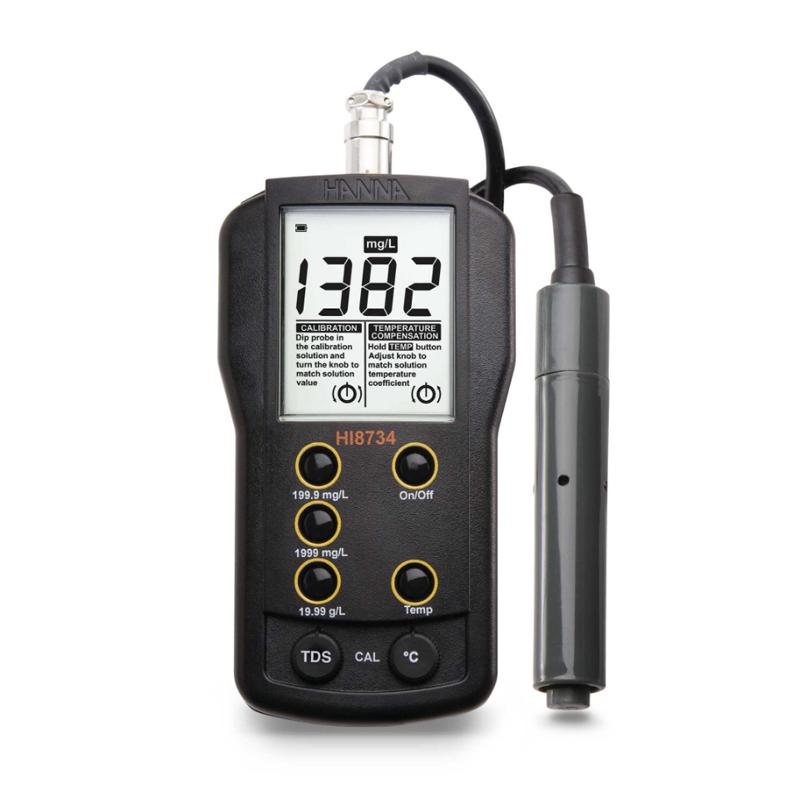

HANNA HI8734 Conductivity Meter Portable TDS measurement instrument, four-ring Conductivity Detector Probe three-range

Name: HANNA HI8734 Conductivity Meter Portable TDS measurement instrument, four-ring Conductivity Detector Probe three-range
Brand: HANNA
SKU: NB045249
Price: 1008.0 USD
Availability: InStock

$ 1008.00Ex works

Four-ring Conductivity Detector Probe with three Measurement ranges (0.0 to 199.9 mg/L, 0 to 1999 mg/L, 0.00 to 19.99 mg/L), manual temperature compensation and single point calibrating ensure easy operation and accurate measurement in different environments.

Model

Get Quote

Category : Conductivity Meter

Brand : HANNA

SKU : NB045249

Service :The delivery and service By NBCLab.Com

Overview

The HI8734 is a rugged Portable TDS measurement instrument designed for use in a wide range of environmental conditions. Equipped with a four-ring Conductivity detector Probe for three Measurement ranges. TDS readings are adjusted via manual temperature compensation to ensure a consistent and accurate measurement of total solids solubility by the user. Suitable for applications such as softening, desalination, reverse osmosis (RO) and drinking water. A good choice for water regulation, water quality softening, reverse osmosis (RO), desalination and TDS determination of total solids solubility in drinking water.

Features

1. New Appearance Design, Large Screen Display 2. Three-range quick manual selection 3. Operating interface, temperature compensation and calibrating, simple and convenient operation 4. Manual temperature compensation to ensure Measurement accuracy and accuracy in different environments 5. Waterproof performance, laboratory and field field determination

Principle

TDS readings are adjusted by manual temperature compensation to ensure a consistent and accurate measurement of total solids solubility by the user. TDS Factor - The TDS value in aqueous solutions is proportional to the conductivity EC, and the ratio between the two parameters depends on the solution under test. HI8734 has a TDS coefficient of 0.5, which is common in many solutions, meaning that 1 μS/cm equals a TDS of 0.5 mg/L (ppm).

Applications

Softening, desalination, reverse osmosis (ROS), drinking water

Steps

1. Single point calibrating -HI8733 can be calibrated in standard TDS solution 2. Manual temperature compensation knob for temperature compensation of measurement readings 3. Three total solid solubility measurement ranges correspond to three buttons, and different Measurement ranges can be easily switched

Notice

• Manual single point TDS calibrating • Manual temperature compensation: 0.0~ 50.0 ° C Compensation factor 2.0%/° C • Suitable for unique HI76301D four-ring conductivity Electrode, made of PVC material • Battery model and life: 9V AA battery, which can last for about 100 hours • Operating Environment: 0 to 50 ° C (32 to 122 ° F); RH max 100%

Measurement Range
0.0 to 199.9 mg/L(ppm)；0 to 1999 mg/L(ppm)；0.00 to 19.99 mg/L(ppm)
resolution
0.1mg/L、1mg/L；0.01 mg/L
accuracy
(@25 ° C/77 ° F) +/- 1% F. S of reading (ignoring Probe error)
Calibrated mode
Manual single point calibrating (based on water sample prediction data, select a relatively similar conductivity standard buffer)
temperature compensation
Manual temperature compensation: 0.0 - 50.0℃ Compensation factor 2.0%/℃
TDS conversion factor
0.5
Configuration Electrode
HI76301D Four Ring Electrode, DIN Interface, 1m Line Length
Battery model and lifespan
9V AA battery lasts for about 100 hours
Operating Environment
0 to 50℃ (32 to 122℉); RH max 100%
Size
145*80*36mm
weight
230g

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
