Overview

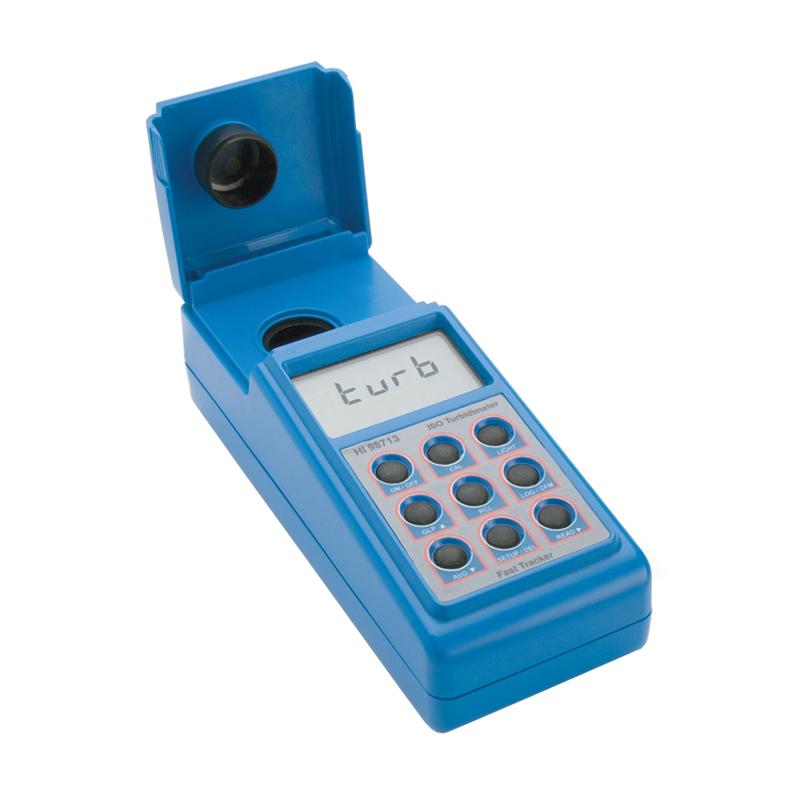

The HI98713-02 is a High Accuracy Multi-Range Portable Turbidity Meter with low turbidity ranges (0.00 to 9.99 FNU) and high turbidity ranges (100 to 1000 FNU), with extremely high accuracy and Accuracy in the low value range, suitable for measurement of samples of different concentrations in different fields. It complies with ISO7027 turbidity measurement standard, equipped with CALCHECK calibration Adjustment, using the HI98713-11 turbidity calibrate group (turbidity scale: ≤ 0.10, 15, 100, 750 FNU/NTU) to ensure the accuracy and Reliability of the instrument.
Features

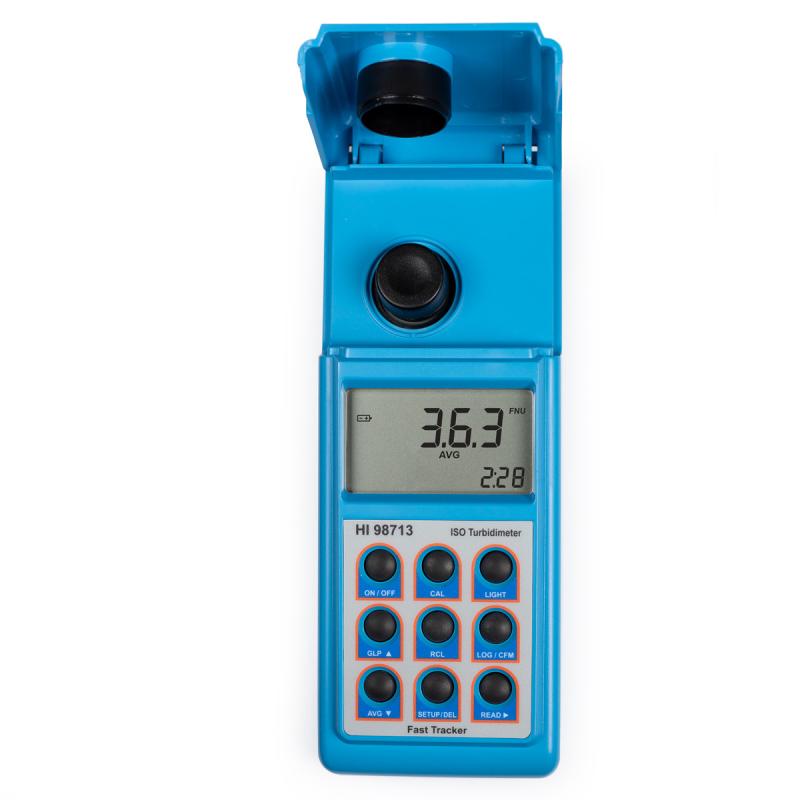

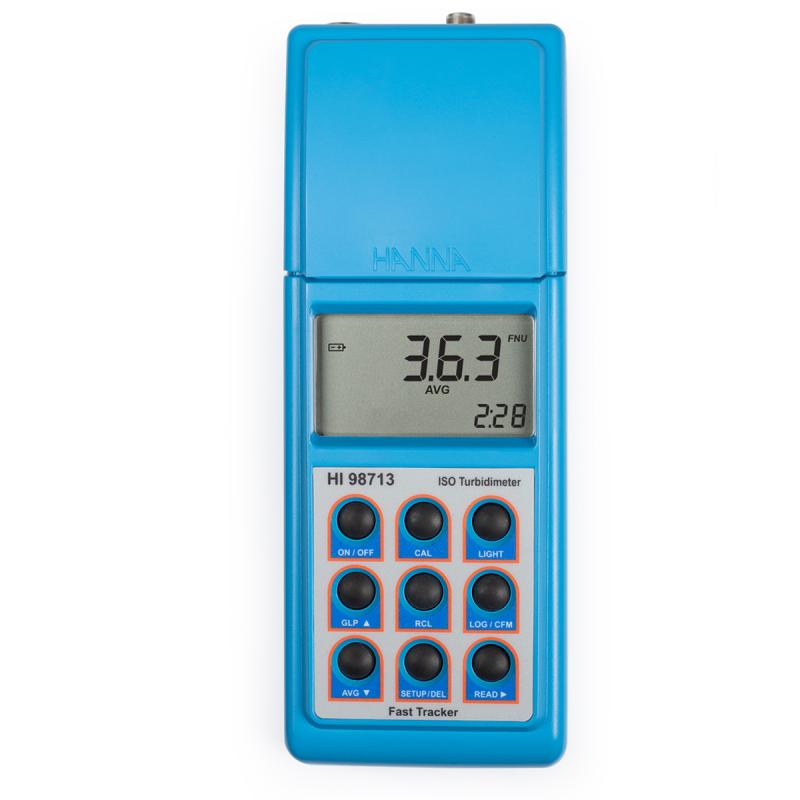

1. Backlit LCD large screen display, stable indicator mark, follow the screen operation prompt
2. GLP management function, query settings, calibrate, time and other information
3. Multi-range measurement, automatic range conversion
4. Infrared source for IR LED, in line with ISO7027 standard

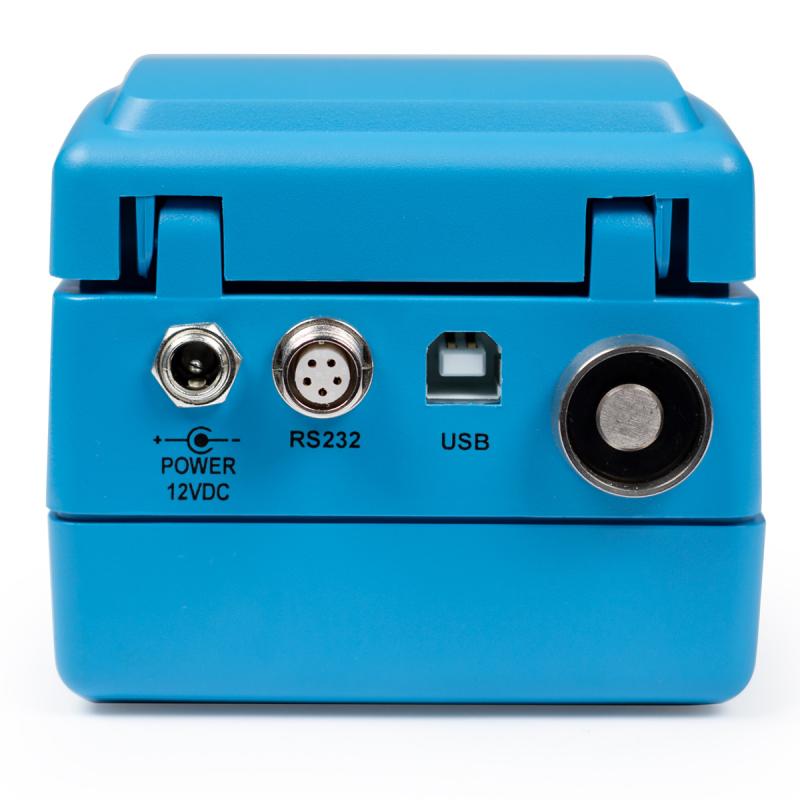

5. USB-RS232 Dual Interface, 200 Data storage
6.T.I.S electronic tag identification management system (Fast Tracker ™), automatic identification data system
Principle
The Turbidity Meter uses turbidity measurement methods (90 ° and 180 °), conforming to the ISO7027 turbidity measurement standard, and uses a dedicated Infrared source for IR LED for measurement. With automatic range conversion, the instrument adapts to measurements of samples of different concentrations, ensuring High Accuracy and Accuracy.
Applications
The measurement of different concentration samples in different fields
Standards
ISO7027 turbidity measurement standard
Steps
1. When using the T.I.S electronic tag (Fast Tracker ™), attach the iButton to the sample to be tested
2. Measurement of the sample to be tested, enter the electronic label code according to the instrument prompt after storing the data
3. Connect the instrument and the electronic label to display the corresponding electronic label sample code and measurement value
4. Data analysis via USB or RS232 Interface and dedicated software
Notice
• Verify and calibrate with HI98713-11 turbidity calibrating set to ensure accuracy
• 15 minutes without any operation will automatically shut down
• Adaptable environment from 0 ° C to 50 ° C, maximum 95% relative humidity without condensation
