Overview

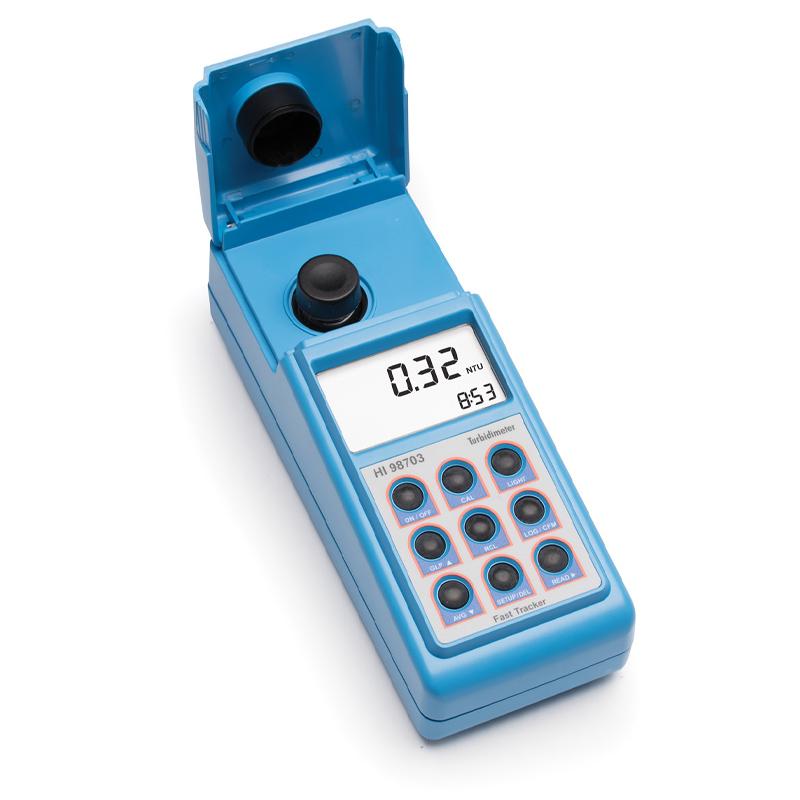

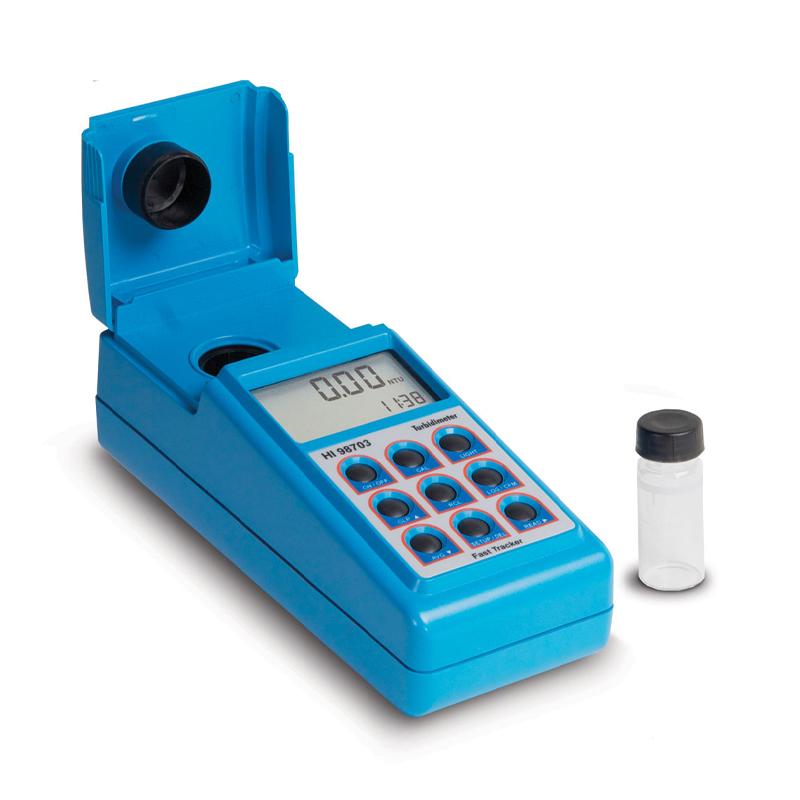

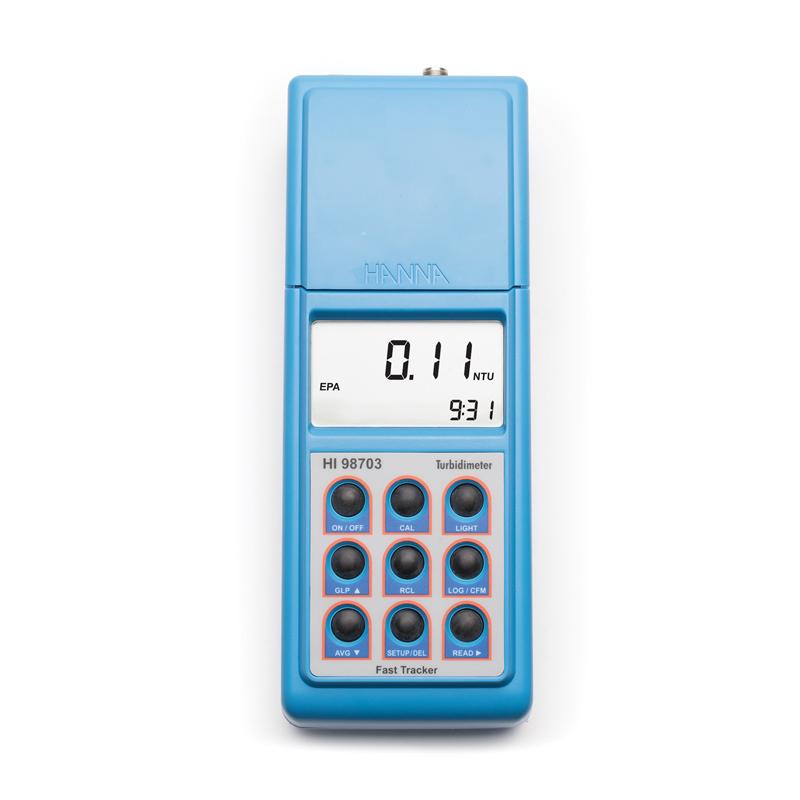

The HANNA HI98703-02 Turbidity Meter is a Portable High Accuracy multi-range Turbidity Meter. It uses a large sample Cuvette and an excellent Optical inspection system. The microprocessor calculates the turbidity value by detecting the Light intensity. It has chroma compensation and Illuminant automatic compensation functions. It effectively corrects Color interference and Illuminant fluctuations without frequent calibrating. It is especially suitable for low-range turbidity High Accuracy measurement. The instrument supports the T.I.S electronic tag identification management system and can be connected to a computer through USB or RS232 interface for data transmission and analysis. It is suitable for water quality monitoring, wastewater treatment and other fields. It can be used as a field Portable or laboratory Benchtop.
Features
1. Backlit LCD large screen display, stable indicator mark, follow the screen operation prompt
2. GLP management function, query settings, calibrate, time and other information
3. Multi-range measurement, automatic range conversion
4. Compliant with USEPA180.1 Standard and Standard Method 2130B

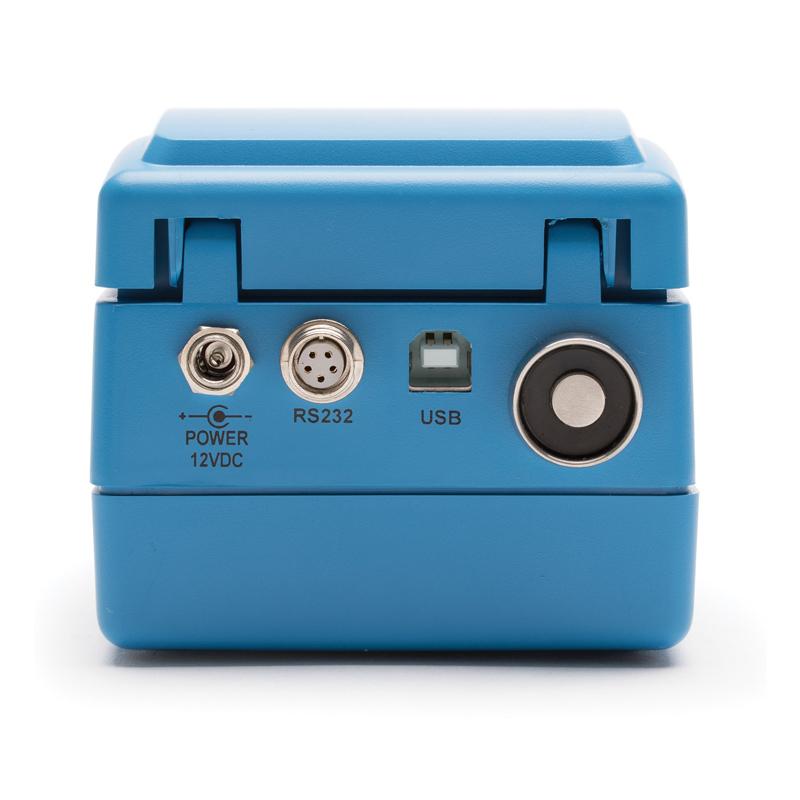

5. USB-RS232 Dual Interface, 200 Data storage, Data management
6.T.I.S electronic label identification management system simplifies the sample management process
Principle
The instrument uses a large sample Cuvette with an excellent Optical inspection system. The microprocessor calculates the turbidity value by the Light intensity reaching the detector. It has chroma compensation and Illuminant automatic compensation functions to effectively correct Color interference and Illuminant fluctuation interference. The turbidity measurement method (90 °) or the scattering turbidity measurement method (90 ° & 180 °) is used for measurement.
Applications
Water quality monitoring, wastewater treatment
Standards
USEPA Method 180.1, Standard 2130B
Steps
1. Attach the iButton electronic label to the sample to be tested
2. Data storage for sample measurement
3. Enter the electronic label code according to the instrument prompts
4. Connect the instrument with the electronic label to display the corresponding code and measurement value
5. Connect the computer to transfer data through USB or RS232 interface
6. Data analysis and management using dedicated software
Notice
• The instrument will automatically shut down after 15 minutes of no operation
• Powered by 4 1.5V AA batteries
• Operating Ambient Temperature 0 ° C to 50 ° C
• Maximum relative humidity of 95%, no condensation
• Instrument weight is 512g, size is 224 × 87 × 77mm
