Overview

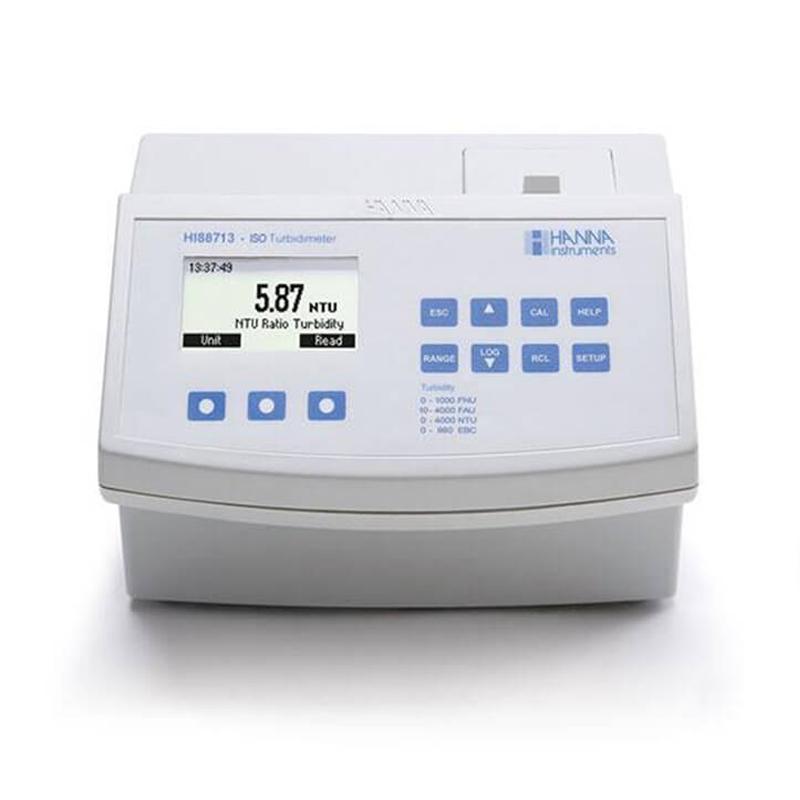

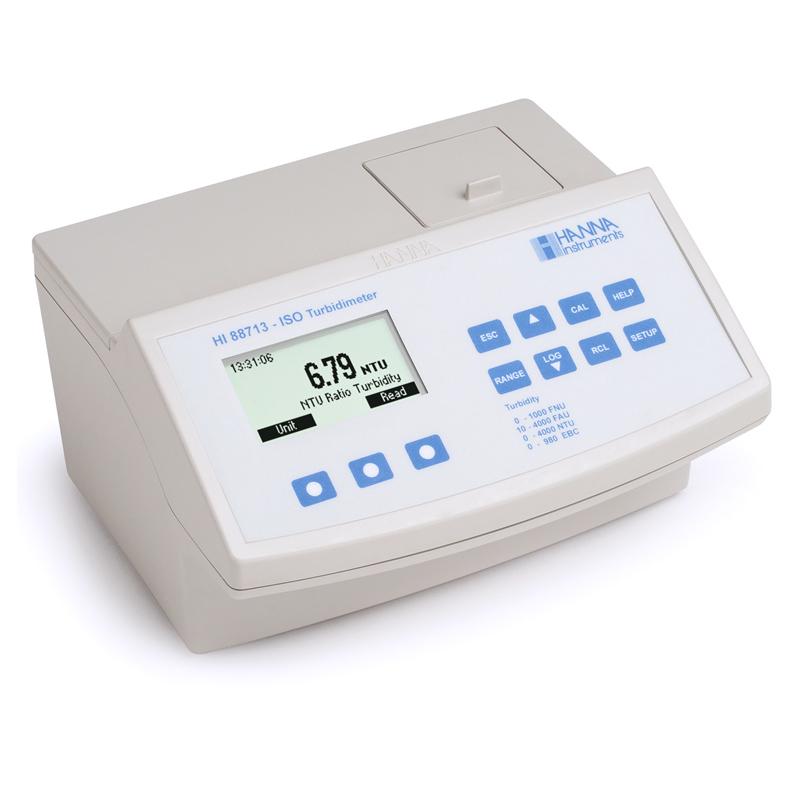

HI88713-02 is a High Accuracy multi-range turbidity laboratory tester, which can perform measurement of different units of FNU, FAU, NTU and EBC, suitable for water industry, beer industry, etc. Measurement range options, low turbidity range (0.00 to 9.99 FNU) and high turbidity range (0.0 to 4000 FNU), especially in the low value range with high accuracy and Accuracy, suitable for measurement of different concentration samples in different fields.
Features
1. Backlit LCD large screen display, stable indicator mark, follow the screen operation prompt
2. Multi-range, automatic range conversion, three Measurement modes
3. Infrared source for IR LED, in line with ISO7027 measurement standard

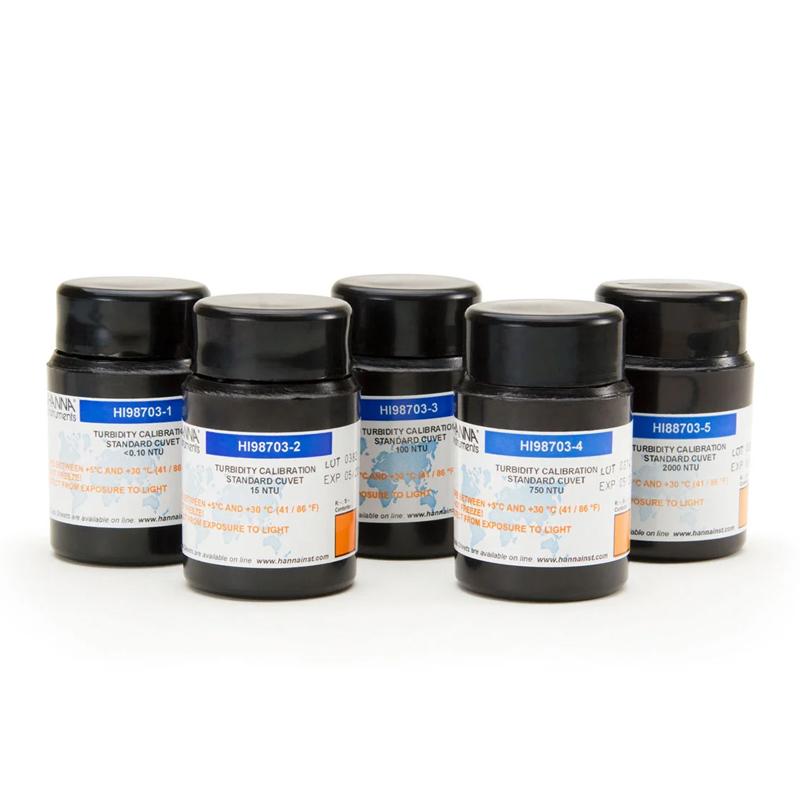

4. CAL CHECK ™ performance verification function, built-in turbidity calibrate point
5. GLP management function, query settings, calibrate, time and other information
6. USB Interface, 200 Data storage, Data management
Principle
HI88713 adopts a special customized Infrared source, which conforms to the ISO7027 turbidity measurement standard. The microprocessor calculates the turbidity value by the Light intensity reaching the detector. Color interference is effectively corrected, with chroma compensation and Illuminant automatic compensation functions, avoiding the interference caused by Illuminant fluctuations without frequent calibrating. The unique light path design effectively reduces stray light, so that the instrument can ensure excellent accuracy, accuracy and Reliability in low turbidity measurement.
Applications
Water industry, beer industry
Standards
ISO7027 turbidity measurement standard
Steps
1. The instrument has a large screen display and user-friendly interface, detailed help information and operation prompts
2. Under the guidance of the instrument, gradually complete various operations
3. Through the USB Interface and the optional HI9 2000-13 data processing software, the data can be transferred to the computer for subsequent analysis
Notice
• If you don't do anything for 15 minutes, it will automatically shut down.
• Operating Environment: 0 to 50 ° C (32 to 122 ° F), RH max 95% non-condensing
• The minimum detection limit for turbidity is determined by the concentration of stray light
