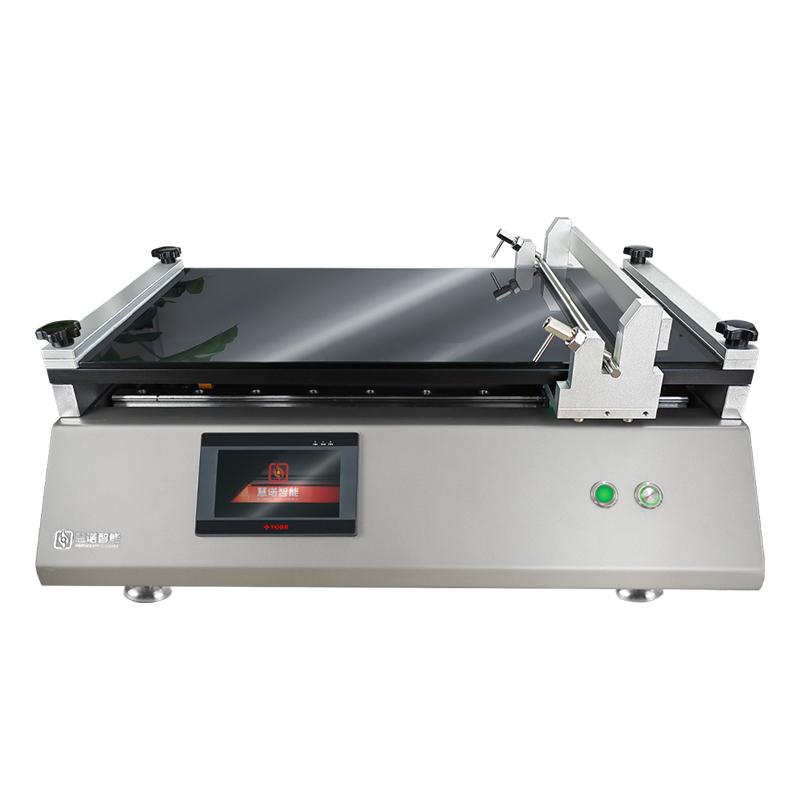

HuiNuo TM1000Pro Automatic Film Applicator bar Coater High Accuracy automatic film

Name: HuiNuo TM1000Pro Automatic Film Applicator bar Coater High Accuracy automatic film
Brand: HuiNuo
SKU: NB045279
Price: 1985.0 USD
Availability: InStock

$ 1985.00Ex works

Adopt bar coating method, coating speed 1~ 300mm/s stepless speed regulation, meyer Rod coating accuracy up to +/- 0.001mm, equipped with servo motor and Touchscreen control, support application length free adjustment.

Model

Get Quote

Category : Automatic Film Applicator

Brand : HuiNuo

SKU : NB045279

Service :The delivery and service By NBCLab.Com

Overview

Automatic Film Applicator is a device for intermediate coating film in laboratories. It replaces manual film and automatically films to improve film accuracy and efficiency. This Film Applicator is a basic bar Coater. It adopts a new bar Installation method with speed control and application length adjustment functions. It is suitable for High Accuracy automatic film in laboratories and Moulding proofing in laboratories such as university research institutes, New material, and lithium batteries.

Features

1. Glass countertop is 3c certified national standard genuine all tempered Glass plate, gold crystal original sheet, heat resistance 600 ℃, scratch resistance 2. High Accuracy film applicator, original imported bar film uniform accuracy 3. Aluminum alloy hard oxidation surface preparation Spreader baseplate, wear-resistant flat, with Smoothness accuracy calibrated certificate 4. Touchscreen control panel, easy to operate 5. Free adjustment of application length and Spreader speed

Principle

The Working Principle of Automatic Film Applicator is to uniformly Spreader the sample on the substrate to form the desired film by controlling the Spreader head and the Spreader parameters.

Applications

Research institutes, New materials, lithium batteries and other laboratories conduct Moulding proofing, Coating, inks, paints, Stock, lithium batteries, Pressure sensitive adhesives, polymer materials, pharmaceuticals and other film sample preparation

Steps

1. Prepare the substrate and samples 2. Set Spreader parameters (application length, Spreader speed) 3. Install bar film applicator 4. Start the device for automatic filming 5. Remove the sample after finishing the film

Notice

• Power supply voltage matching before use (standard 220V/50HZ, can be customized 110V/60HZ) • Pay attention to the fixing of the substrate firmly during operation • Regularly check bar film applicator accuracy • Keep equipment clean to avoid scratching Glass countertops • Customization function needs to be confirmed with customer service in advance

coating method
Bar Spreader
coating speed
1~ 300mm/s stepless speed regulation (can be customized)
Substrate clamping method
fixture
Coating table material
Aluminum alloy/Glass table (if the specified material is confirmed with customer service)
Coating table Size
600*300mm
effective coating area
400 * 300Mm (can be customized)
Film thickness
Controlled by bar with High Accuracy import bar
meyer rod coating accuracy
±0.001mm
Drive motor
Servo motor
Power
600w
Operating language
Chinese (can be customized in English)
display screen
Color LCD Touchscreen
Host power supply
220V/50HZ (can be customized 110V/60HZ)
Dimension
658*438*205mm
weight
39.7kg
optional feature
Drawdown blade, heating, Vacuum chuck

[Q] We have several automatic film applicators suitable for lithium battery slurry coating in the lab. Could you please provide more details about your specific requirements, such as coating width, thickness range, substrate type, and production speed?

We recommend using the Huinuo TM1000pro Automatic Film Coating Machine. This is a basic model of a wire rod coater, particularly suitable for coating materials such as lithium battery slurry. It utilizes high-precision imported wire rods, ensuring uniform coating with an accuracy of up to ±0.001mm, guaranteeing that the thickness of the film you coat is extremely precise. This is crucial for the consistency of lithium battery electrode performance. Additionally, its coating speed and length can be freely adjusted, making it easy to operate and capable of meeting your laboratory prototyping needs.

[Q] For your lab's need to coat polymer material films on glass substrates with high requirements for flatness and uniformity, a spin coater would be the most suitable instrument.

Given your high requirements for flatness and uniformity in polymer material coating applications, the Huinuo TM1000pro automatic coating machine is an excellent choice. Its coating platform features an aluminum alloy base plate that has undergone hard anodizing treatment, making it highly wear-resistant and exceptionally flat. It also comes with a flatness accuracy calibration certificate, ensuring the substrate is placed in an absolutely level position. When paired with the original imported high-precision wire rod, it guarantees an extremely uniform coating. The glass tabletop is made of tempered glass that is heat-resistant and scratch-resistant, making it ideal for operations on glass substrates.

[Q] I need a film applicator that allows flexible adjustment of coating parameters and may potentially be upgraded with heating functionality in the future. Do you have any recommendations?

We recommend considering the Huinuo TM1000pro automatic coating machine. One of its standout features is the ability to freely and continuously adjust both the coating speed and coating length, which can be easily configured via the touchscreen, offering great flexibility. More importantly, this model supports optional functions, and the heating function you mentioned is one of its available options. This means you can purchase the basic version now to meet your current needs, and if heating coating is required in the future, you can directly upgrade it by adding a heating module. This approach is very convenient and avoids redundant investments.
