Overview

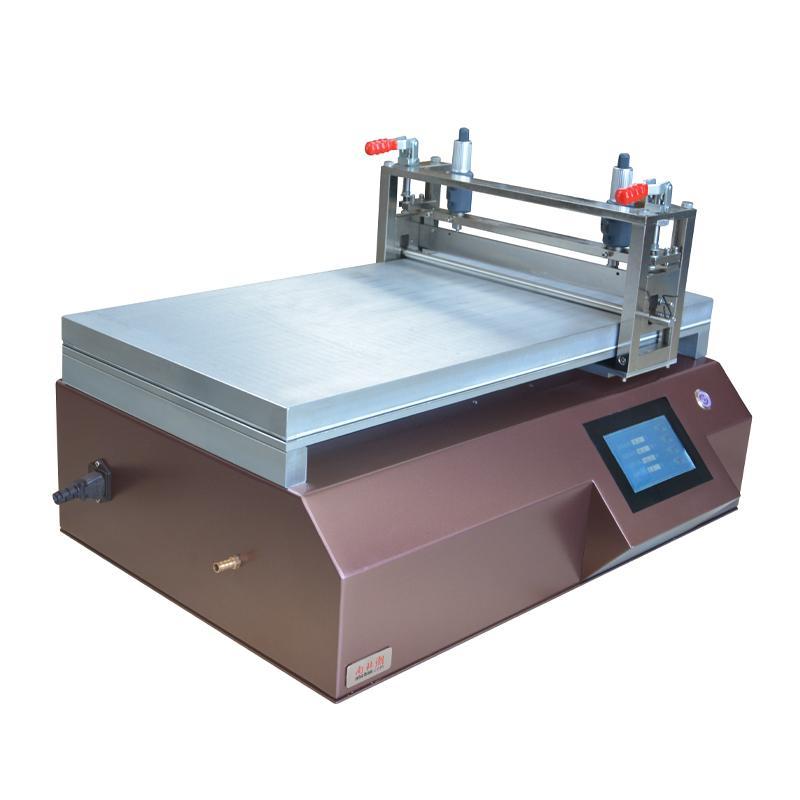

TBJ-A3-DJ8 Benchtop Automatic film applicator with automatic feeding system is a China Automatic Film Applicator, effective coating area 850mm * 1000mm, standard 3L volume Mixing Tank, heating temperature up to 180 ℃. Commonly used in laboratory film, suitable for Moulding in Coating, inks, Polymer Materials, Films, Glues, Pressure sensitive adhesives and other industries.
Features

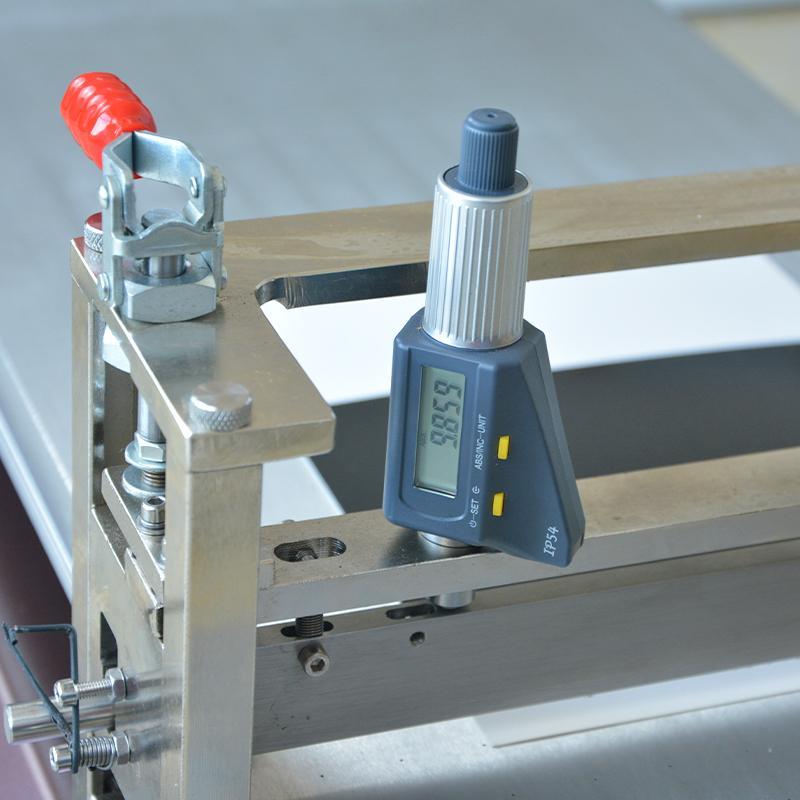

1. Spreader accuracy up to +/- 0.003mm, thickness range 0~ 10mm
2. coating speed 5~ 180mm/s, support stepless speed and customized low speed
3. Standard 3L plus Mixing Tank, the material is 304 stainless steel with wall thickness of 4mm
4 heating Temperature range RT +~ 180 ℃, temperature accuracy +/- 3 ℃

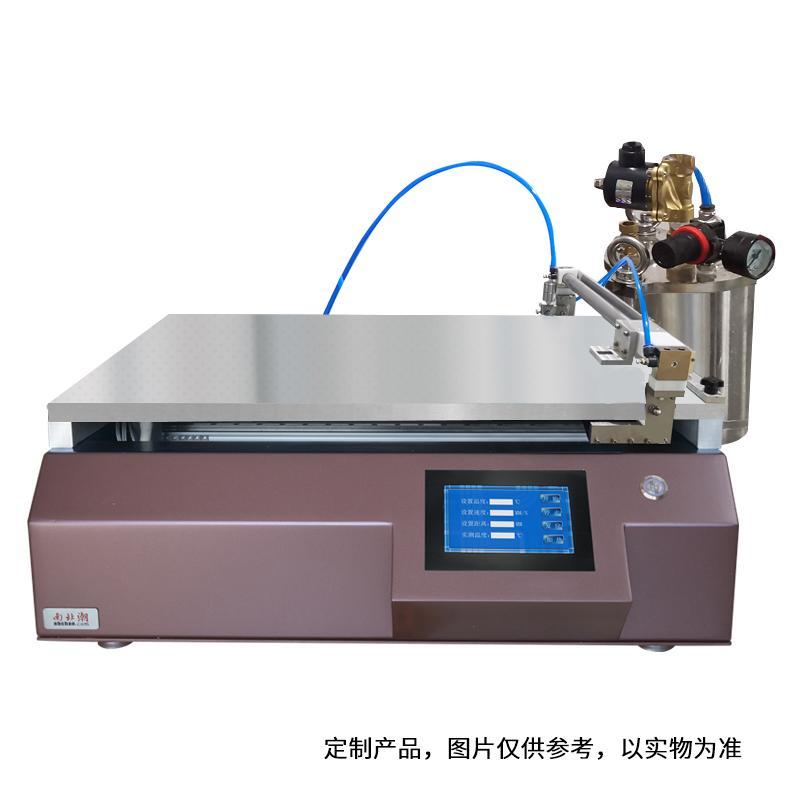

5. Support automatic feeding system, feeding motion mode is reciprocating linear motion
6. Customizable jet system devices, UV solid inclusion devices, and other functions
Principle

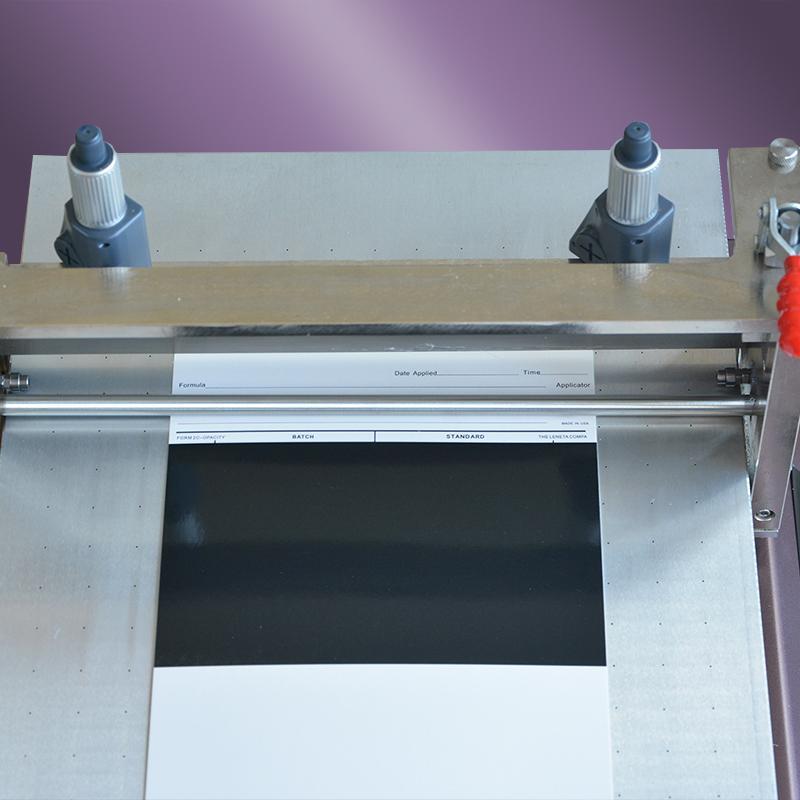

The Automatic Film Applicator adopts drawdown Bar & Blade heating film mode, and realizes Spreader through synchronous belt shaft drive. The feeding system uses the principle of outflow of air source pressure, and controls the discharge volume by adjusting the air pressure and the running speed of the discharge port, so as to realize the automatic feeding of reciprocating linear motion.
Applications
Coatings, inks, polymer materials, films, glues, Pressure sensitive adhesives
