Overview

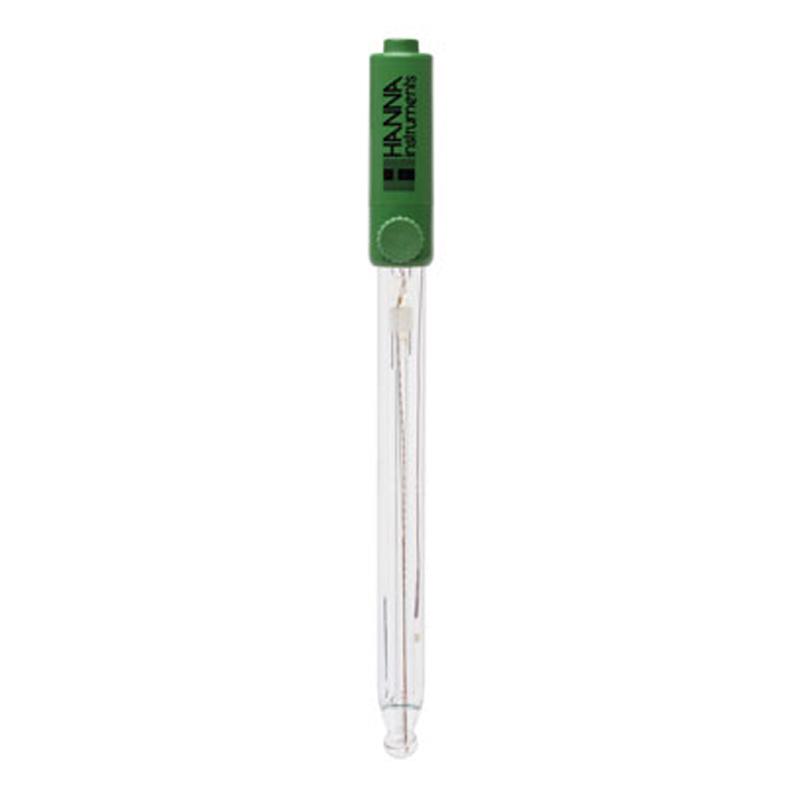

HANNA HI1131B pH Electrode is a Glass Electrode, suitable for different application environments and measurement needs. Measurement range 0-13 pH, Temperature range from 0 ° C to 100 ° C, single ceramic dialysis hole design, filled with KCl 3.5M solution internally, with pressure resistance, suitable for general experiments and high temperature environments.
Features
1. Glass material to ensure durability
2. Measurement range 0-13 pH, covering a wide range of applications
3. Temperature resistance 0-100 ° C, adapt to high temperature environment
4. Single ceramic dialysis hole design to improve measurement accuracy
5. Fill KCl 3.5M solution to stabilize the internal environment
6. Pressure resistance 0.1 Bar, suitable for standard pressure conditions
7. Spherical Electrode Head 9.5mm for easy operation
8. BNC/1m connector, compatible with standard equipment
Principle
The pH Electrode is contacted with the solution to be tested through the Glass film to generate a potential difference. The KCl 3.5M solution filled inside is used as the electrolysis substance, and the ion exchange is realized through a single ceramic dialysis hole to measure the ph value. The Electrode head is designed with a spherical shape to optimize the Response Time.
Applications
General experiment, high temperature
Steps
1. Connect Electrode to pH Meter Device
2. Electrode calibrated using standard buffer solution
3. Electrode immersion in the sample to be tested
4. Record the ph value after waiting for the reading to stabilize
5. Clean and store Electrodes after use
Notice
• Avoid collision of Electrode head with hard objects to prevent damage
• Regularly check the level of filling solution and replenish it in time
• Wash thoroughly after use to prevent contamination
• Keep Electrode Wet During Storage, Extend Life
• Only used within the specified temperature and pressure range
