Overview

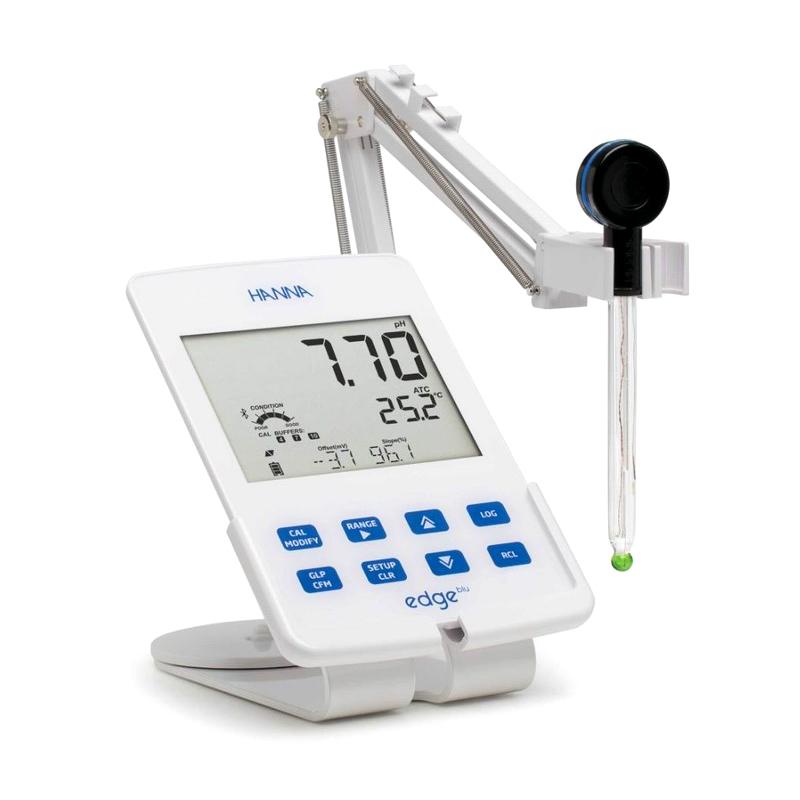

HANNA HI 2202-02 Benchtop acidity meter is a global novel design acidity pH meter equipped with Bluetooth smart technology. Bluetooth Electrode can quickly connect with the host with one button, display Electrode name and battery status on the host interface, built-in temperature sensor and microprocessor amplifier, remove cable length constraints, and realize direct transmission of measurement data to the field or laboratory within 10 meters.
Features
1. Powerful management functions: Automatically identify the Electrode type, automatically enter the measurement item mode, the Electrode sensor automatically stores calibrate data, automatically calls up the query GLP storage data, the CAL-CHECK Electrode verification system prompts Electrode contamination and standard buffer information, and timely reminds Electrode status and connection status.
2. Data management function: Store up to 1000 sets of data, including measurement data, GLP data, time and date, support manual point storage and continuous storage, USB and micro USB interface for data transfer and charging.
3. Prompt for operation steps with the screen: Concise full-text information prompts are displayed at the bottom of the screen, which is convenient and fast to operate.
4. Large screen, ultra-thin design, touch operation: 12.7mm ultra-thin body, 250g lightweight design, 5.5-inch large viewing angle LCD screen, 150 viewing angles, data within 5 meters is clearly visible.
5. Customized special bracket: realize Electrode flexible adjustment to suitable Measuring location and display screen adjustment to visual angle, support hanging, Benchtop or handheld use, save space and easy to carry.
Principle
The acidity meter is wirelessly connected to the host through Bluetooth smart technology implementation, and the built-in temperature sensor and microprocessing amplifier automatically perform pH measurement and temperature compensation. Electrode automatically recognizes and stores calibrated data, and monitors Electrode status through the CAL-CHECK system to ensure measurement accuracy.
Applications
Field measurement, laboratory analysis
Steps
1. Connect Bluetooth Electrode to the host with one button.
2. Automatically identify Electrode type and enter Measurement mode.
3. Use screen prompts for calibrating and measurement operations.
4. Data is automatically stored or output through the USB interface.
Notice
• Operating Environment Temperature 0 to 50 ℃, relative humidity up to 95%.
• Avoid sample residue damaging the operation panel.
• Electrode condition and calibrate expiration reminders.
• Ensure that the Electrode remains connected within 10 meters.
