Overview

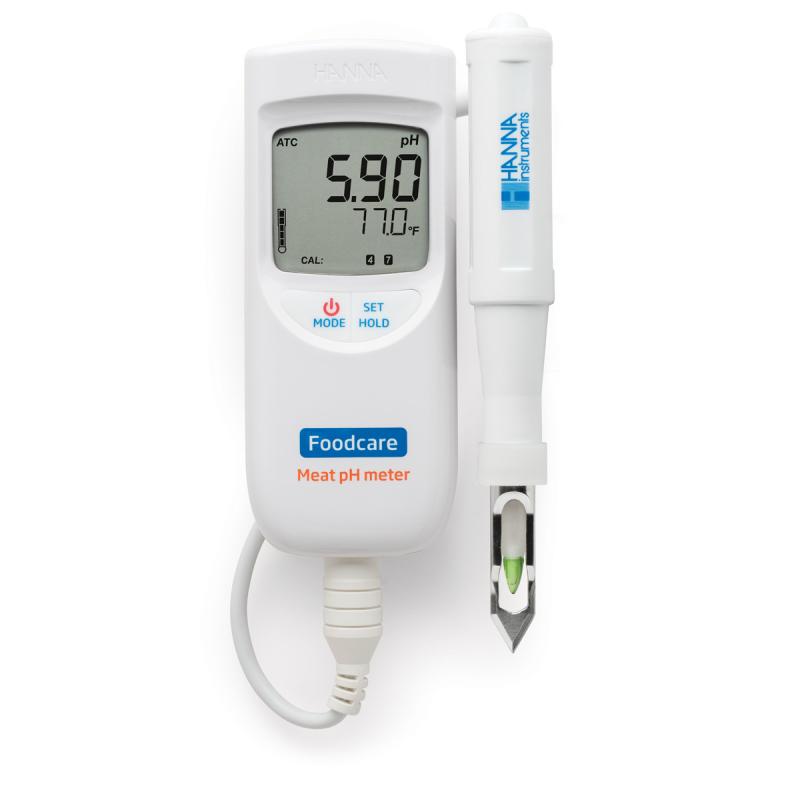

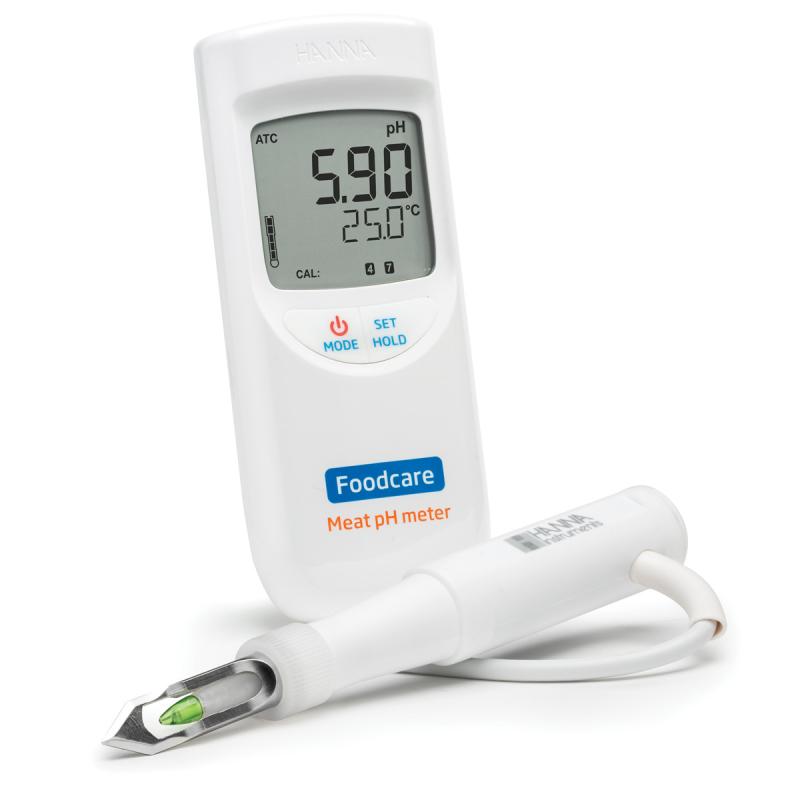

HI99163 is a HANNA brand waterproof Portable pH Meter, designed for acidity measurement of meat products, semi-solid, semi-frozen food samples. The instrument features a PVDF body, tapered port and threaded port for easy use of custom-made special threaded interface stainless steel cutter head. It has a diffusion sleeve-type reference end to prevent clogging and is easy to clean. It is equipped with an indicator mark to guide operation, a reading lock function, a battery level display, and a BEPS low-power error-proof system. It automatically shuts down after 8 minutes of no operation to save power.
Features
1. Appearance design, large double screen display, user-friendly design, ergonomic, cost-effective
2. Set and calibrate information prompt, automatically identify two point acidity calibrate, built-in two sets of standard calibrate points (pH4.01, 7.01, 10.01 and pH4.01, 6.86, 9.18)
3. Two-bond simple operation, 0.01pH resolution, High Accuracy measurement, cost-effective
4. Simple and fast battery replacement, BEPS low battery error prevention system to avoid wrong measurement
5. Design for on-site measurement, excellent waterproof performance
6. Specially designed for acidity -pH measurement analysis of samples in meat products, semi-solid, semi-frozen food industries
Principle
The instrument uses FC232D built-in temperature sensor composite acidity Electrode for pH measurement through automatic temperature compensation (range -5.0~ 105.0 ° C) and automatic 1 and 2 point calibrating. Electrode uses a diffusion sleeve reference end and a unique dialysis membrane design to prevent clogging due to viscous liquids and ensure accurate measurement.
Applications
Meat products, semi-solid, semi-frozen foods
Standards
European Food Standards
Steps
1. The instrument displays the battery level after power on, and the BEPS system prevents low voltage false readings
2. Use the indicator mark to operate step by step for automatic acidity calibrating
3.Measurement of pH and temperature, reading lock function for easy data recording
4. Automatic shutdown after 8 minutes without operation
Notice
- Electrode uses non-toxic silver chloride electrolysis solution to avoid contamination of the tested food
- Measurement Electrode easy to clean, robust tapered Electrode head design
- Use custom dedicated threaded interface stainless steel cutter head
- The battery is a 3 * 1.5V AAA battery, pay attention to replace it in time
