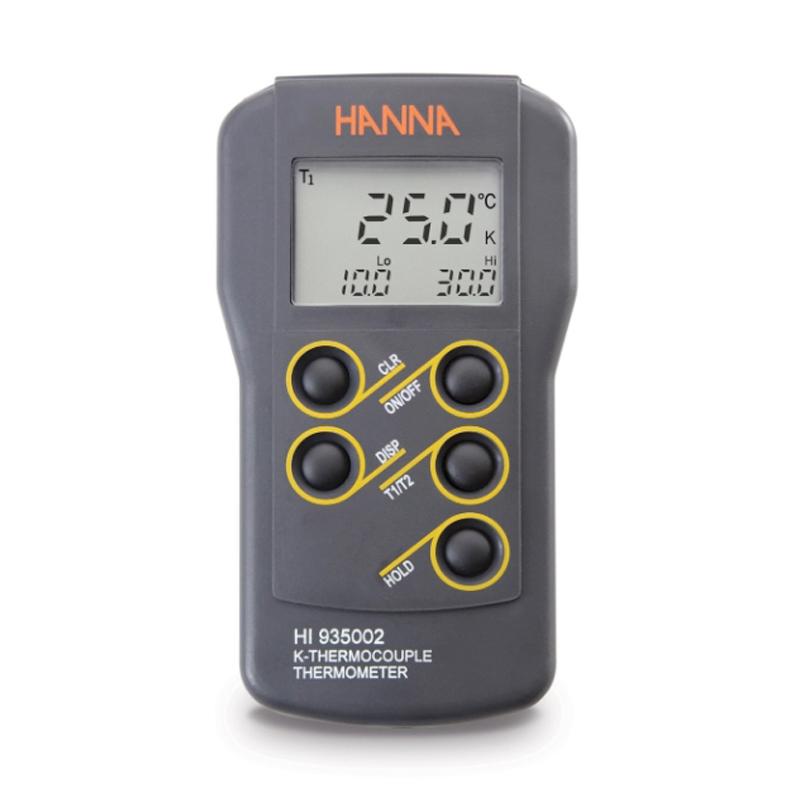

Overview
The HI935002 wide-range temperature measuring instrument adopts a low-power error-proof system BEPS and battery power display design to effectively avoid wrong readings and remind timely battery replacement. The instrument has a dual-channel function, which can use two K-type Thermocouple temperature sensors to measure two samples at the same time. The dual-row LCD display screen can display the current temperature Measured value and the size record value synchronously. The screen display value can be locked through the'HOLD 'key, which is convenient for data viewing and recording.
Features
1. Waterproof design, large screen dual-line LCD display, dual-channel simultaneous measurement
2. Low power error prevention system, power display icon, remind to replace the battery in time
3. Double row display, showing Measured value and Large and Small Measured value
4. HOLD lock key function, lock measurement data, easy to record and view
5. The ° C/° F button can easily and quickly switch between Celsius and Fahrenheit temperatures
Principle
The HI935002 temperature measuring instrument collects temperature signals through the K-type Thermocouple temperature sensor, and displays the measurement results on the dual-line LCD display screen after being processed by the internal circuit. The instrument adopts a dual-channel design, which can connect two Probes for measurement at the same time, and ensures the measurement accuracy through a low-power error-proof system.
Steps
1. Install 3 1.5V AAA batteries
2. Connect HI766 Series K Thermocouple temperature sensor
3. Temperature measurement after startup
4. Use the HOLD key to lock the display data
5. Switch the temperature unit through the ° C/° F button
Notice
• Please read the Chinese and English instruction manuals carefully before use
• Pay attention to the battery level display and replace the battery in time
• Ensure Operating Environment Temperature Range of -10~ 50 ℃
• Standard without temperature sensor, need to configure HI766 series K-type Thermocouple separately
• Avoid use in environments beyond the specified Humidity range
