HANNA HI99556-00 thermoMeter infrared thermoMeter, non-contact contact measurement

Name: HANNA HI99556-00 thermoMeter infrared thermoMeter, non-contact contact measurement
Brand: HANNA
SKU: NB045656
Price: 646.0 USD
Availability: InStock

$ 646.00Ex works

Equipped with Infrared Sensor and Thermal Probe Dual Measurement mode, Response Time is only 1 second, Optical inspection coefficient is 3:1, support -40~ 150 ℃ wide range temperature measurement, to meet the needs of accurate temperature detection in different scenarios.

Model

HI99556-00

Get Quote

Category : Temperature Tester

Brand : HANNA

SKU : NB045656

Service :The delivery and service By NBCLab.Com

Overview

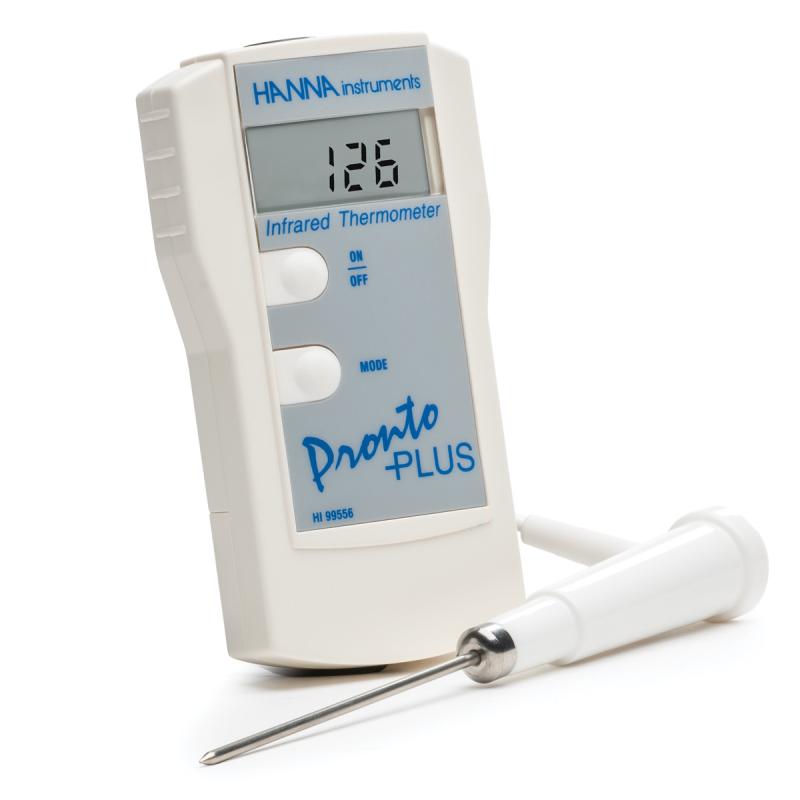

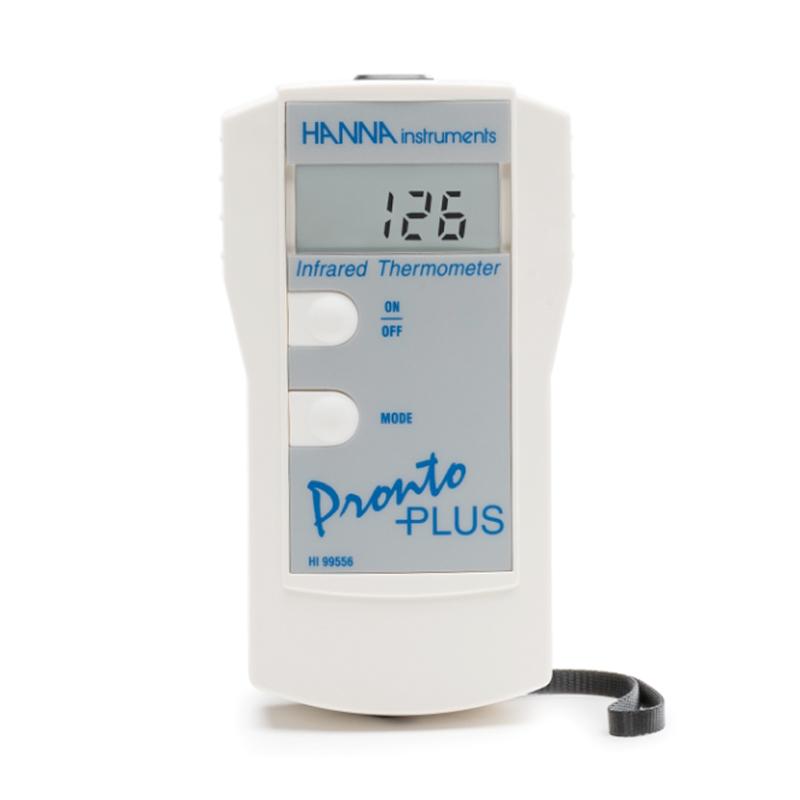

The HANNA HI99556-00 is a multifunctional thermometer with an infrared Sensor Measurement range -10 to 300 ° C and a HOLD lock key for fast and accurate reading recording. The product can also be connected to an external thermal temperature sensor for infrared non-contact measurement and thermal contact measurement. It is especially suitable for temperature measurement of high temperature items, sealing food and non-contact media with high hygiene requirements.

Features

1. Quick Response, Easy Operation 2. HOLD key lock stable reading 3. Power-on battery power display 4. Thermal temperature sensor can be connected

Principle

The thermometer uses infrared Sensor for non-contact temperature measurement, and obtains temperature data by detecting infrared radiation emitted by objects. At the same time, it can be connected to a thermal temperature sensor for contact measurement, realizing flexible switching of two Measurement modes.

Applications

Temperature measurement of high temperature items, sealing food, and non-contact media with high hygiene requirements

Steps

1. Turn it on to check the battery level. 2. Select Measurement mode (IR or Thermal Probe) 3. Align the object to be measured for measurement 4. Use the HOLD key to lock the reading 5. Record measurement results

Notice

• Keep a minimum distance of 30mm for infrared measurement • The ratio of infrared measurement distance to the diameter of the object to be measured is 3:1 • Operating Environment Temperature 0~ 50 ℃, relative humidity up to 95% Measurement accuracy is +/- 2% of the reading or +/- 2 ° C • Thermal Probe Measurement accuracy is +/- 0.5 ℃ (-20~ 120 ℃ range)

Measurement Range -IR
-10~300℃
Measurement Range - temperature sensor
-40~150℃
Resolution-IR
1 ℃
Resolution - temperature sensor
1 ℃
Measurement accuracy -IR
+/- 2% of reading or +/- 2 ° C
Measurement accuracy - temperature sensor
+/- 0.5 ℃ (-20~ 1 2 0℃）； +/- 0.5 ℃ + 1% reading
IR sensor response time
1 s
IR Sensor Optical inspection coefficient
3:1 (ratio of measurement distance to the diameter of the object to be measured)
minimum distance
30mm（1.2''）
temperature sensor
HI765PW Stainless steel thermal sensor for general purpose/penetrating measurement, white handle, 1 m (3.3 ') line length (standard included)
Power supply Type
9 V
Operating Environment
0~50℃ （32~122 ℉)；RH max 95 %
Size/weight
143x80x38mm（5.6x3.2x1.5'');320 g(11.3 oz.)
