TQC sheen VF2169 4-sided coating Applicator Stainless steel 4-sided Film Applicator 30/60/90/120µm wet film thickness

Name: TQC sheen VF2169 4-sided coating Applicator Stainless steel 4-sided Film Applicator 30/60/90/120µm wet film thickness
Brand: TQC sheen
SKU: NB004566
Price: 1103.0 USD
Availability: InStock

$ 1103.00Ex works

The 4-sided design can convert the angle to obtain four wet film thicknesses, the application width is 60mm, the accuracy is +/- 3μm, the stainless steel material is resistant to acid and alkali corrosion, and the guide film can be removed for easy operation and maintenance.

Model

VF2169

Get Quote

Category : Film Applicator

Brand : TQC sheen

SKU : NB004566

Service :The delivery and service By NBCLab.Com

Overview

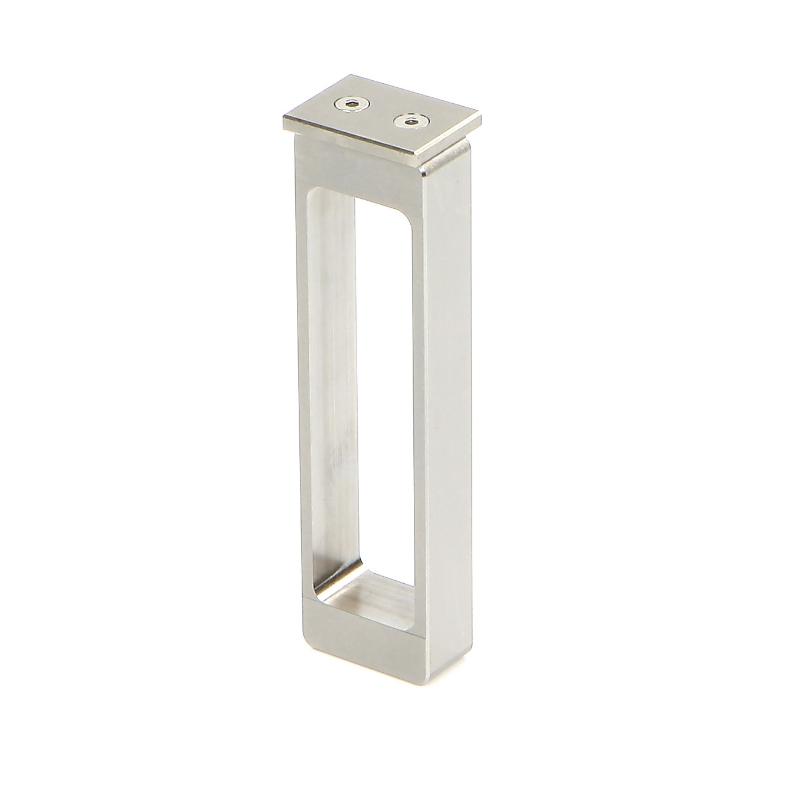

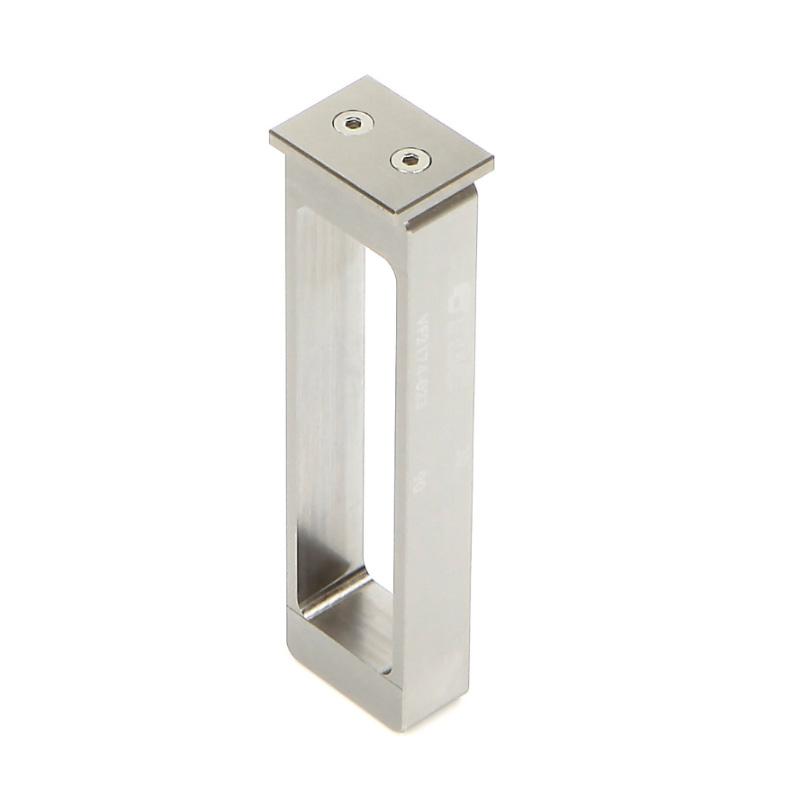

TQC sheen 4-sided coating applicator VF2169 is a multifunctional film applicator made of stainless steel, produced according to international standards, strictly controlled production process and engraved with a unique serial number. The product can be prepared for four different thicknesses of wet-film, easy to operate, just change the angle to obtain different film thicknesses.

Features

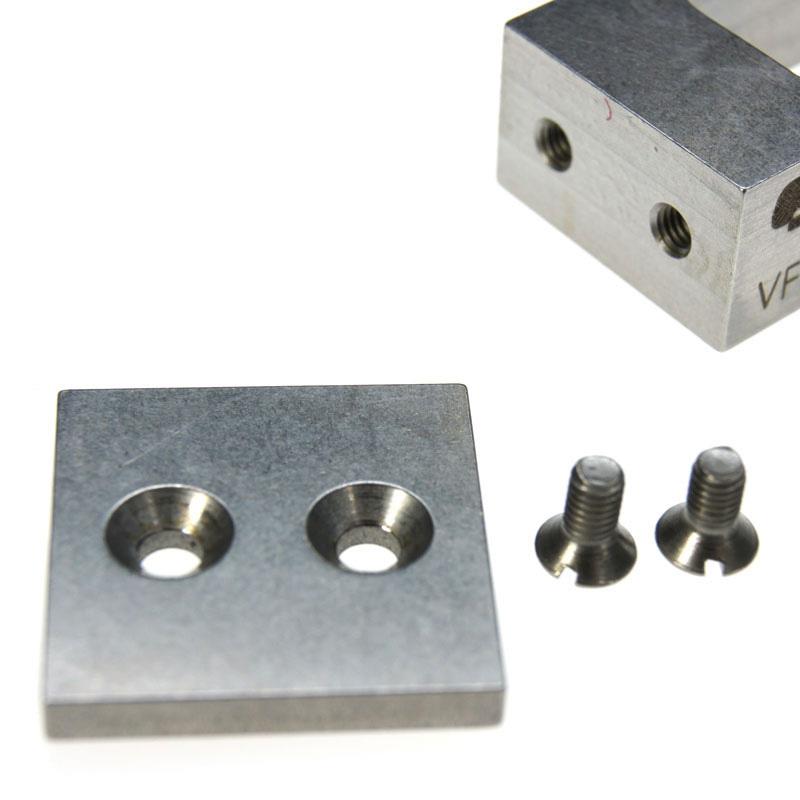

1. Multifunctional 4-sided coating applicator can prepare 4 different thicknesses of wet-film 2. A removable smear guide is attached to one side of the lacquer 3. Stainless steel material, corrosion resistance, not Coating or cleaning agent acid alkaline erosion 4. Easy to operate, just change the angle to get different film thicknesses

Principle

The 4-sided coating applicator is used to prepare wet-films of different thicknesses by switching angles, and one side is attached with a guide smear to assist in the Spreader process to ensure that the film is flat and smooth.

Applications

Coating leveling test, film prepative

Standards

ASTM D823

Steps

1. Select the angle corresponding to the desired film thickness 2. Place the coating applicator on the substrate 3. Spreader operation with uniform force 4. Different thickness films can be obtained by changing the angle

Notice

• Clean the coating applicator in time after use • Avoid scratching the surface of the coating applicator with sharp objects • Ensure coating applicators are stored in a drying environment • Maintain uniform force during operation for best film effect

Type
Frame 4-sided
wet film thickness
30/60/90/120µm
application width
60mm
accuracy
±3μm
material
stainless steel
standard
ASTM D823
Size
75*20*25mm/1115*20*20mm
