Overview

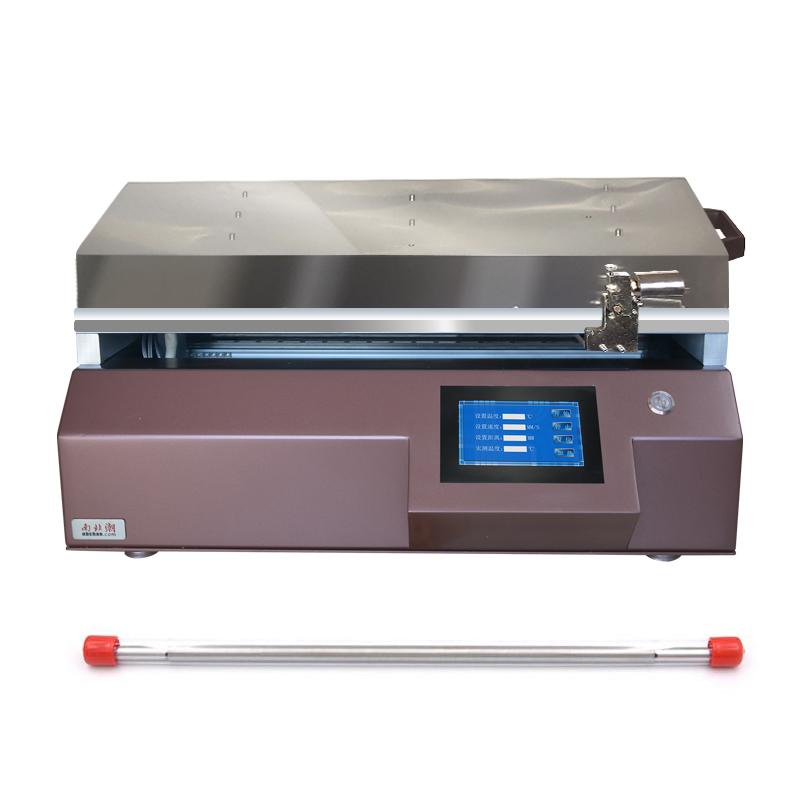

TBJ-B2-DJ4 Automatic Film Applicator is a small Lab Film Applicator for experiments. It adopts imported accessories and is cheap. It is favored by multinational R & D institutions, universities and scientific research institutions at home and abroad. The equipment ensures the uniformity and smoothness of Spreader coating by controlling speed and stable pressure. It aims to solve the problem of artificial film inconsistency, improve film reproducibility, and facilitate the operator to Spreader accurate wet-film on different substrates.
Features
1. Using imported accessories, the price is good and cheap
2. Control the speed and stable pressure to ensure the uniformity and stability of the Spreader
3. Improve film reproducibility and reduce artificial differences
4. Optional accessories are abundant, such as leakage tank, substrate fixing fixture, etc
5. Various coating methods, support bar and drawdown blade
6. Wide coating speed range, support stepless speed change
7. Spreader accuracy is high, up to 0.001mm
8. Optional UV light curing function, main peak wave 36nm, Power 400 * 2W
Principle
Automatic Film Applicator achieves accurate Spreader by controlling the Spreader speed and the pressure applied to the film applicator. The main factors affecting the film include Spreader speed and pressure. The device precisely adjusts these parameters to ensure that a uniform wet-film is Spreader on different substrates, thereby improving the conformity and reproducibility of the film.
Applications
Multinational enterprise R & D institutions, domestic and foreign universities, scientific research institutions
Steps
1. Prepare substrate and Spreader material
2. Select the coating method (bar or drawdown blade) according to requirements
3. Set coating speed and pressure parameters
4. Start the device for Spreader operation
5. Optional UV light curing function (if equipped)
6. Clean Equipment After Spreader
Notice
• Make sure the power supply of the device is connected correctly before operation, use 220V 50Hz power supply
• Spreader process pay attention to safety, avoid contact with moving parts
• Choose the right accessories based on the thickness of the Spreader substrate, such as silicone pads and weight
• Regularly check Spreader accuracy and Equipment Stability
• Optional Accessories need to be configured according to the specific application, such as leakage tanks to prevent liquid overflow
• Wavelength range 350~ 450nm during UV curing to avoid direct exposure
• Device weight 55KG, be careful when handling
• The coating table is made of aluminum alloy, keep it clean to prevent corrosion
