Boride Rxg-01/500cs hydrogel Coater slitting function UV curing

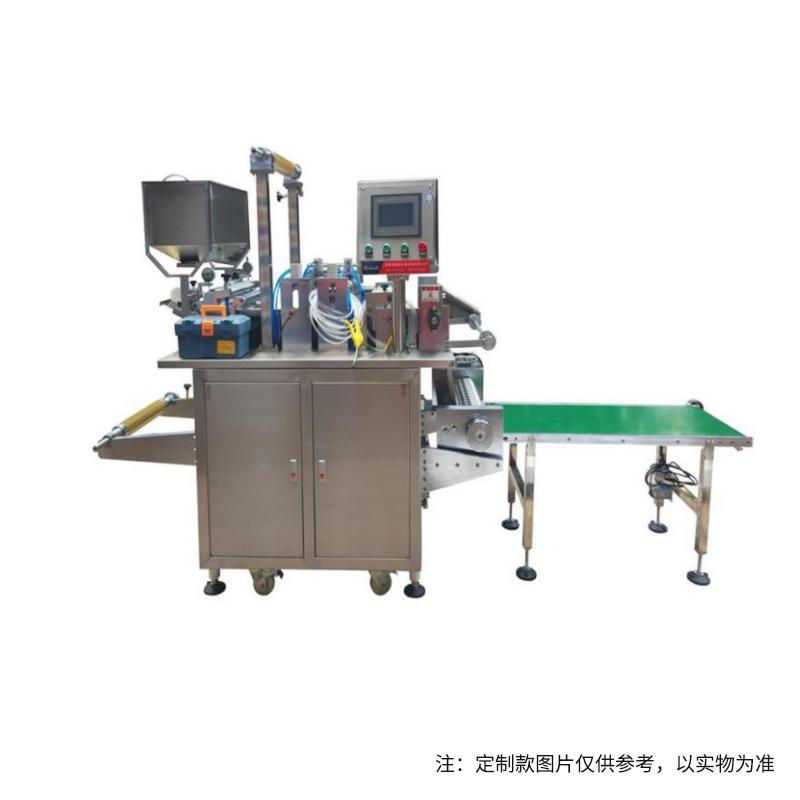

Name: Boride Rxg-01/500cs hydrogel Coater slitting function UV curing
Brand: BoLaiDe
SKU: NB045700

Please contact customer service

Spreader speed 0-5m/min, effective application width 300mm, support UV curing and cutting function, Servo Control system to ensure High Accuracy operation.

Model

Rxg-01/500cs

Get Quote

Category : R2R Coater

Brand : BoLaiDe

SKU : NB045700

Service :The delivery and service By NBCLab.Com

Overview

A hydrogel Coater is a device for preparing hydrogel films or coatings. It is mainly used to uniformly Spreader hydrogels on the surface of substrates to prepare hydrogel products with specific performance. This Coater has a slitting function and supports UV curing.

Features

1. With slitting function 2. Support UV curing 3. Control system 4. Equipped with Touchscreen control (Kunlun Tongtai) 5. Unwinding system with tension control 6. Equipped with hob type cross-cutting (servo system) 7. Includes toolbox and supporting tools

Principle

Spreader hydrogel Coater by unwinding → Spreader → bonding → drying → slitting process, the surface of the substrate homogeneous hydrogel material, a hydrogel film or a coating having a specific performance.

Applications

Medical, cosmetics, hygiene products

Steps

Step 1 Unroll 2. Spreaders Step 3 Fit Step 4 Drying Step 5 Slitting

production speed
0-5 m/min
Effective application width
300mm
Coil diameter
500-700mm
Power
1.4 Kw
Power supply Voltage
Three-phase 220 V
Dimension
2650 * 1100 * 1700mm (L * B * H), footprint: 2.3 m2 (including conveyor belt)
weight
1200 kg
Equipment power
Control system
cross-cutting
Adopt hob Type (servo system)
unroll
With tension control
Control system
Touchscreen (Kunlun Tongtai)
Vertical cutter installation
3
Toolbox
1 (with: Thickness gauge, screw driver, tracheal interface 1)
inflated shaft
2
Spreader process
Unroll → Spreader → Fit → Drying → Slitting
