Overview
The Rjy-00/100vh Vertical Mesh Spreader is a factory direct-sale Spreader device designed for vertical mesh Spreaders, with roll-up and unwinding, tension control, deviation correction and coating functions, suitable for thin film Spreader processes.
Features
1. Support forward and reverse rewind volume function
2. Tension control ensures stable operation
3. Deviation correction function improves Spreader accuracy
4. Vertical mesh can be fine-tuned left and right to maintain vertical
5. Vertical film runs stably and without shaking
6. Adjustable coating speed from 1mm/s to 1m/min
7. After Spreader, automatically enter the sink for processing and winding
Principle
The equipment pulls the vertical mesh through the rewinding and unwinding system, and ensures the vertical and stable operation of the mesh through tension control and correction functions. The Spreader device performs Spreader in the reserved Spreader area. After the Spreader is completed, the mesh enters the sink for processing, and finally the entire process is completed.
Applications
Film Spreader, Mesh Spreader
Steps
1. Start the device and set the coating speed
2. Adjust the mesh to fine-tune left and right to ensure vertical
3. Run the Spreader process to monitor tension and correction
4. After the Spreader is completed, the mesh enters the sink for processing
5. Automatic rewinding after coming out of the sink
Notice
• Make sure the mesh remains vertical during operation to avoid shaking
• Regularly check the tension control and correction system
• The coating speed must not exceed the maximum 1m/min
• Pay attention to the safety of the sink area when operating

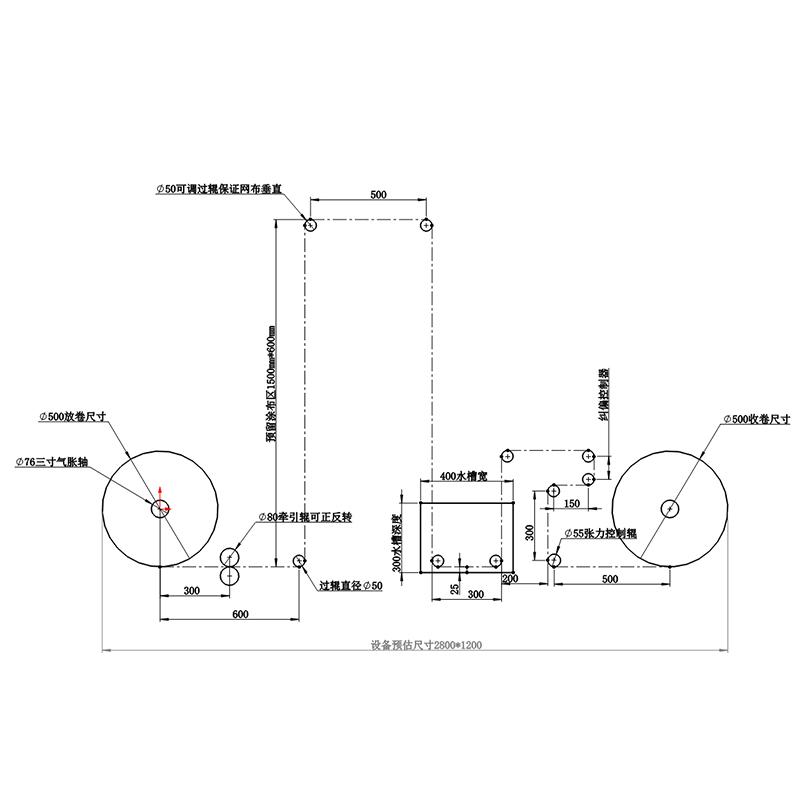

• Device size is 2800 * 1200mm, enough space needs to be reserved
