Overview

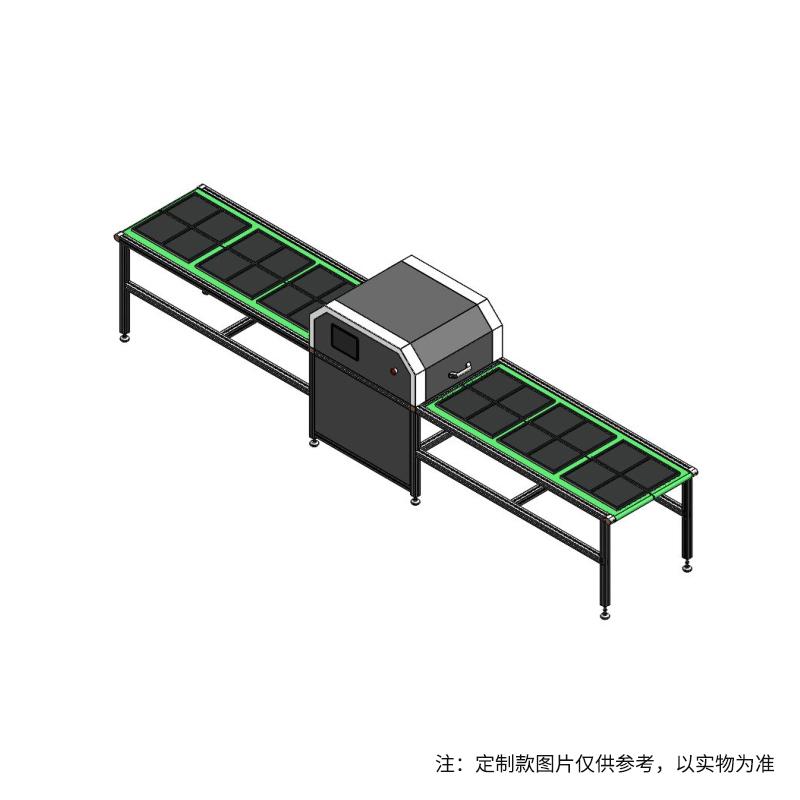

Sheet continuous automatic glue injection machine (model Rxg-01/500sc) is a kind of coating equipment, so that objects can be painted through curtain-like coating at a certain speed. It is suitable for UV undercoating, finish coating, floor, furniture, ceiling fan wood chips, Glass, siding, floor tiles, plywood and other flat screen applications. The curtain is generated by pump pressure, the thickness is adjustable, and the distribution is uniform. There is no difference in paint surface.
Features
1. The cutter head adopts a double-column diagonal support structure, which is simple and convenient to adjust and disassemble.
2. The conveyor belt is an imported PU belt, which is resistant to various solvents and prevents layering.
3. Equipped with large-capacity electronically controlled thermostatic fuel tank and oil pump, the filtrating effect is good, and the Flow rate is stable.
4. The fuel tank has five layers of filtrating net, which effectively filtrates the impurities in the backflow of paints.
5. The fuel tank is equipped with a return buffer system, which can effectively eliminate the generation of bubbles.
6. Coating circulation device is equipped to reduce the loss of paints and facilitate the cleaning of UV screen machine.
Principle
The spray coating machine generates a curtain-like Coating through the pump pressure, and the object passes through the Coating curtain at a set speed to achieve uniform painting. The Coating is filtrated and thermostatic controlled in the circulation system to ensure stable Flow rate and Spreader mass.
Applications
UV undercoating, finish coating, floor, furniture, ceiling fan wood chips, Glass, wall panels, floor tiles, plywood and other flat screen applications
Steps
1. Adjust the cutter head structure to the desired position.
2. Set the object speed.
3. Start the pump to generate a shower screen.
4. Objects are painted through the Coating screen.
5. Disassemble and wash the cutter head and system after use.
Notice
• Regularly check the filtrate net to ensure no blockage.
• Use solvent-resistant conveyor belts to avoid layering.
• Pay attention to the thermostatic control of the fuel tank to keep the Flow rate stable.
• Use a recycling device to reduce paints loss during cleaning.
