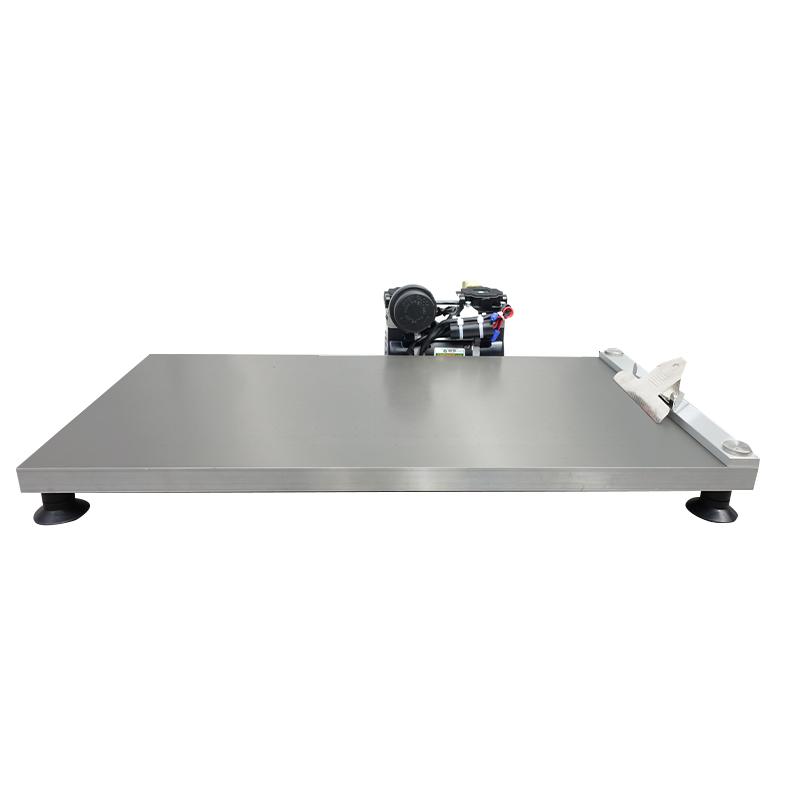

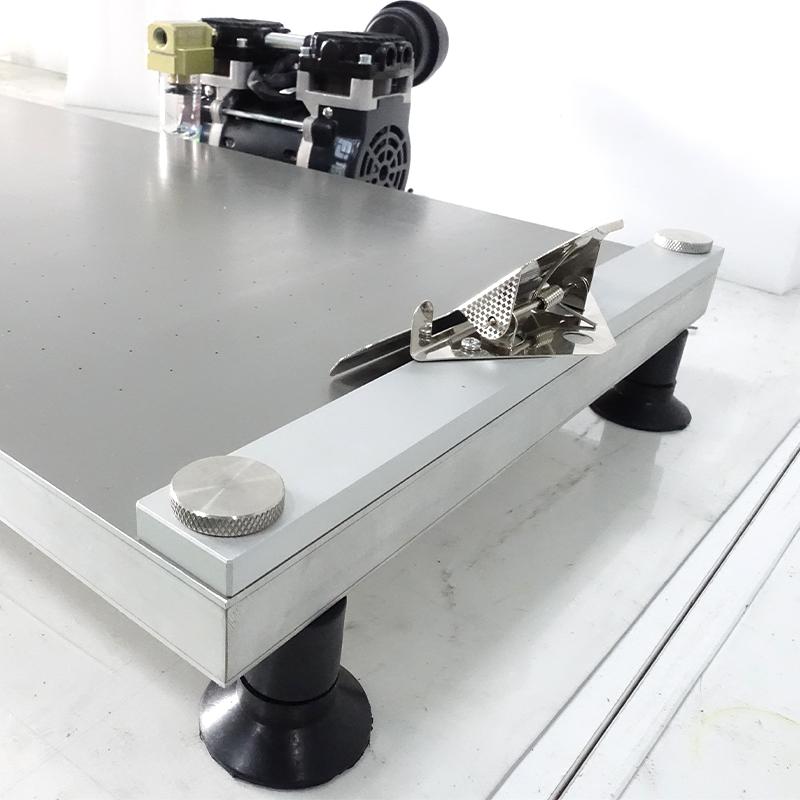

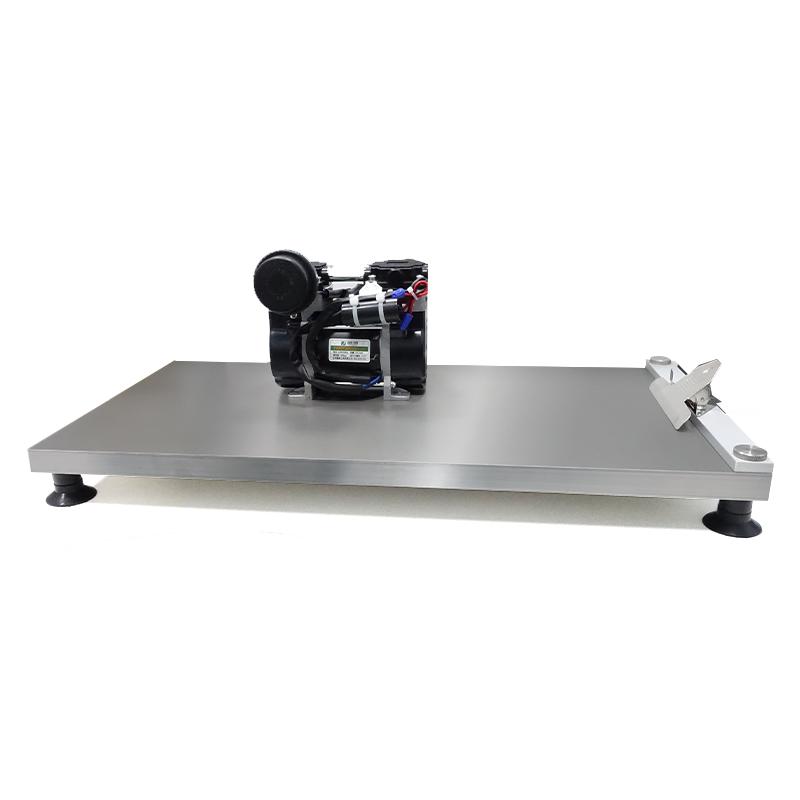

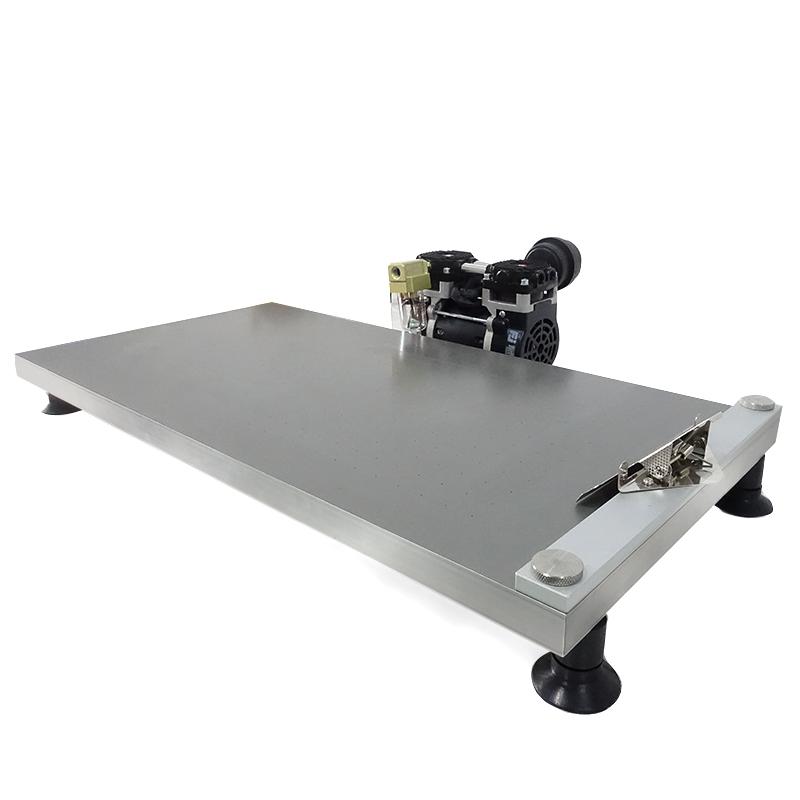

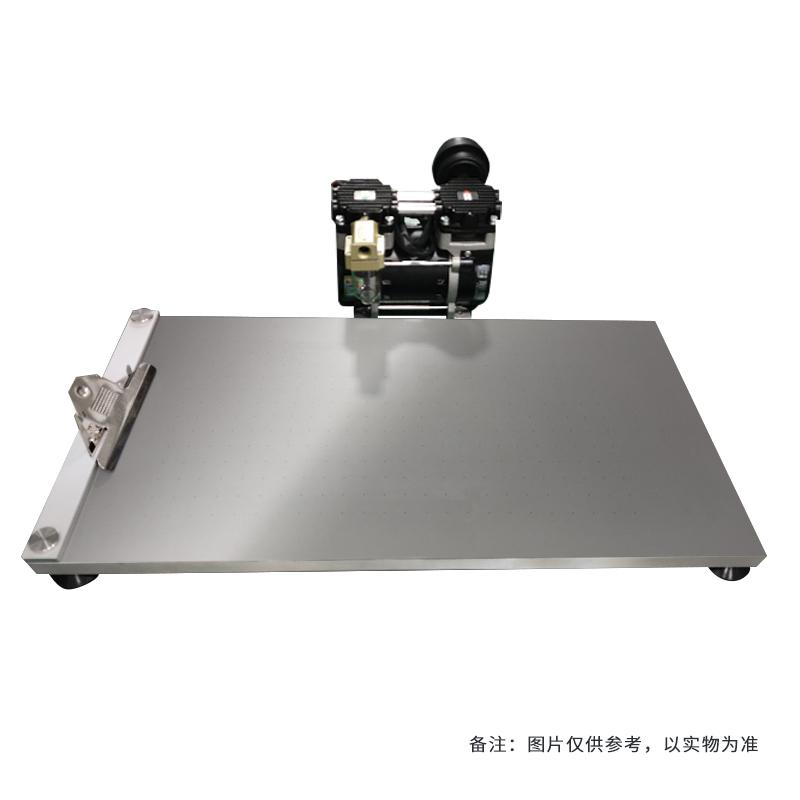

HuiNuo AV1000 vacuum coating table Vacuum chuck area 300*400mm

Name: HuiNuo AV1000 vacuum coating table Vacuum chuck area 300*400mm
Brand: HuiNuo
SKU: NB045705
Price: 630.0 USD
Availability: InStock

$ 630.00Ex works

Vacuum chuck area of 300 * 400mm, equipped with 150W vacuum pump, aperture 0.8mm to ensure uniform adsorption, improve Spreader accuracy and Stability.

Model

AV1000

Get Quote

Category : Automatic Film Applicator

Brand : HuiNuo

SKU : NB045705

Service :The delivery and service By NBCLab.Com

Overview

HuiNuo AV1000 vacuum coating table is a Coater equipment, with 300 * 400mm Vacuum chuck area, need external vacuum pump work.

Features

1. Vacuum chuck area is 300 * 400mm 2. Vacuum hole pitch is 20mm 3. Vacuum aperture diameter is 0.8mm 4. Supporting vacuum pump voltage 220V, Power 150W

Principle

Generating negative pressure through external vacuum pump, using vacuum hole adsorption Spreader material to ensure that the material is flat and fixed in the Spreader process.

Applications

Use with Coater

Steps

1. Install the vacuum coating table with the Coater 2. Connect the external vacuum pump 3. Turn on the vacuum pump for adsorption operation

Notice

• Ensure that the vacuum pump voltage is 220V • Check whether the vacuum hole is unobstructed before use • Regular maintenance of vacuum pumps

Vacuum hole pitch
20mm
Vacuum pump Voltage
220V
Vacuum Pump Power
150W
Vacuum Area
300*400mm
